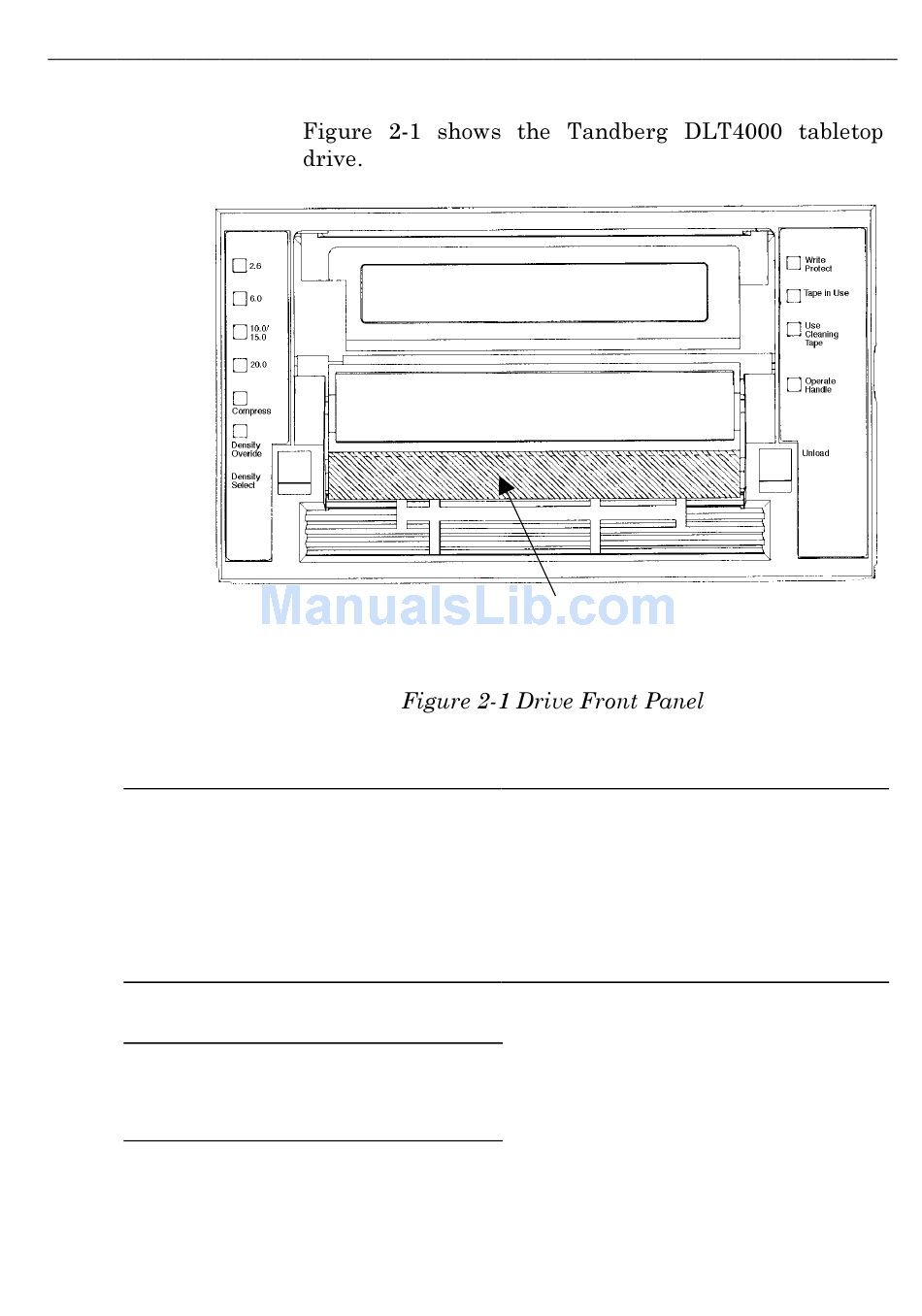

Indicators (Left Side of Drive)
Density indicator 2.6 (Yellow)
Density indicator 6.0 (Yellow)
Density indicator 10.0/15.0 (Yellow)
Density indicator 20.0 (Yellow)
Compress indicator (Yellow)
Density Override indicator (Yellow)
Controls
Density Select button
Unload button
Cartridge insert/release handle
Tandberg DLT4000 Installation Guide
Installing and Configuring the Tandberg DLT4000 Drive
Cartridge Insert / Release handle (down)
Indicators (Right Side of Drive)
Write Protected indicator (Orange)
Tape in Use indicator (Yellow)
Use Cleaning Tape indicator (Yellow)
Operate Handle indicator (Green)
Beeper (audible) not visible
2-3
