en | 4 | Power DC
plus
25kW Wallbox Charger Installation Manual
IMPORTANT SAFETY INSTRUCTIONS
` Save these Instructions.
`
The DC Wallbox Charger should be in-
stalled only by a licensed contractor and/
or a licensed electrician in accordance
with all applicable state, local, and nation-
al electrical codes and standards.
Before installing the DC Wallbox Charger,
review this manual carefully and consult
with a licensed contractor, licensed elec-
trician, and trained installation expert
to ensure compliance with local building
practices, climate conditions, safety stan-
dards, and state and local codes.
WARNING! Danger of electrical shock
or injury. Turn OFF power at the panel
board or load center before working
inside the equipment or removing any
component. Do not remove circuit
protective devices or any other
component until the power is turned
OFF.
CAUTION To avoid damage to the
charger or personal injury, make sure the
installation location is able to support the
weight of the charger.

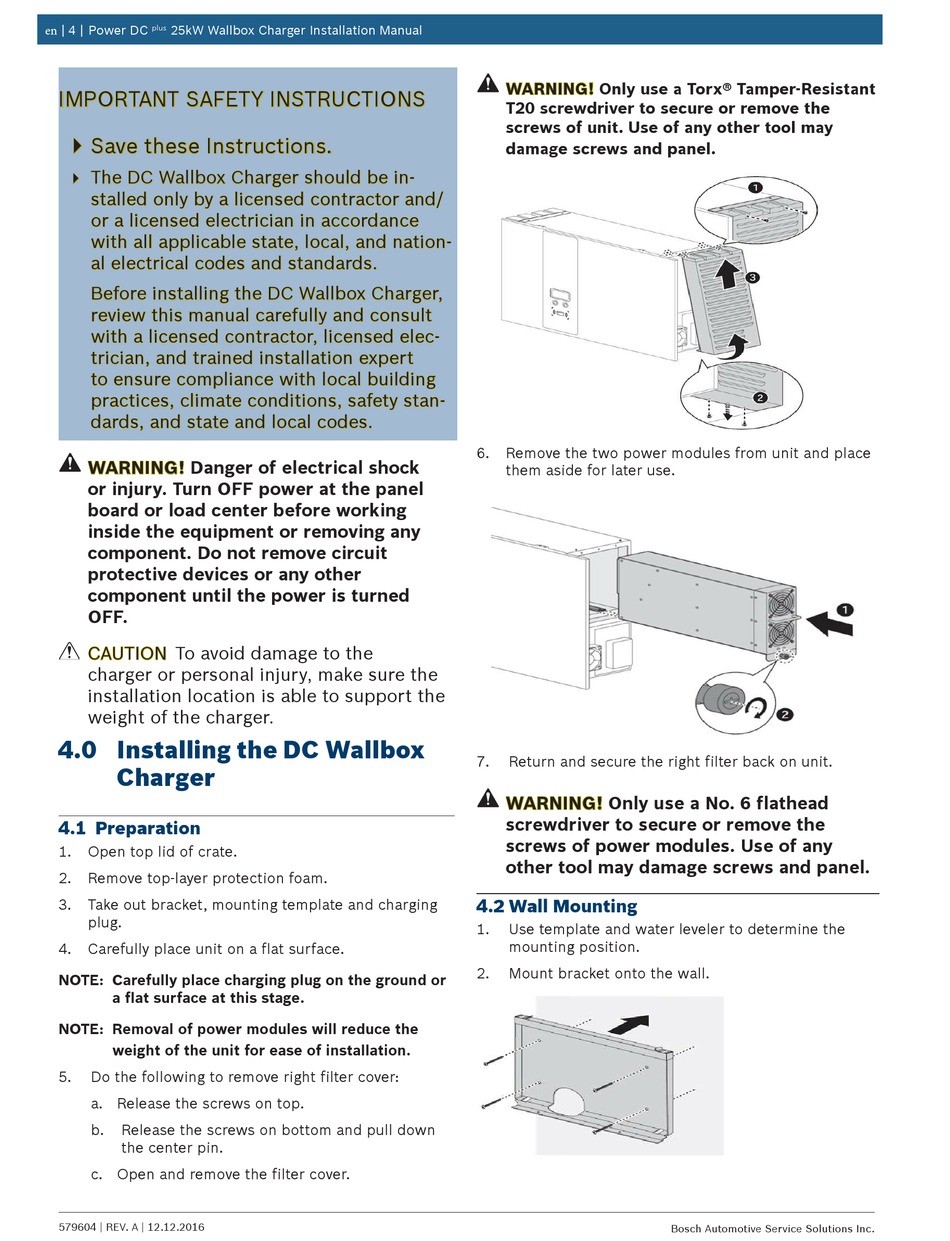

4.0 Installing the DC Wallbox
Charger

4.1 Preparation

1.
Open top lid of crate.
2.
Remove top-layer protection foam.
3.
Take out bracket, mounting template and charging
plug.
4.
Carefully place unit on a flat surface.
NOTE: Carefully place charging plug on the ground or
a flat surface at this stage.
NOTE: Removal of power modules will reduce the
weight of the unit for ease of installation.
5.
Do the following to remove right filter cover:
a. Release the screws on top.
b.
Release the screws on bottom and pull down
the center pin.
c. Open and remove the filter cover.
579604 | REV. A | 12.12.2016
WARNING! Only use a Torx® Tamper-Resistant
T20 screwdriver to secure or remove the
screws of unit. Use of any other tool may
damage screws and panel.
6.
Remove the two power modules from unit and place
them aside for later use.
7.
Return and secure the right filter back on unit.
WARNING! Only use a No. 6 flathead
screwdriver to secure or remove the
screws of power modules. Use of any
other tool may damage screws and panel.

4.2 Wall Mounting

1.
Use template and water leveler to determine the
mounting position.
2.
Mount bracket onto the wall.
