FG Modellsport Competition EVO 08 Chassis Mounting Instruction page 7

1. Alu-Achsschenkelverlängerung nach Abb. montieren und mit
Achsschenkelstift, Ø 3,2 Sicherungsscheibe, Senk-Schraube
M4x25 und M4 Stopp-Mutter befestigen.
2. Kugelgelenk mit Alu-Gelenkkugel mit Senk-Schraube M5x20 auf
die Achsschenkelverlängerung schrauben.
Tipp: Entsprechend der Einstellung der Vorspur muss der obere
Querlenker mittels den Einstellclipsen ausdistanziert werden.

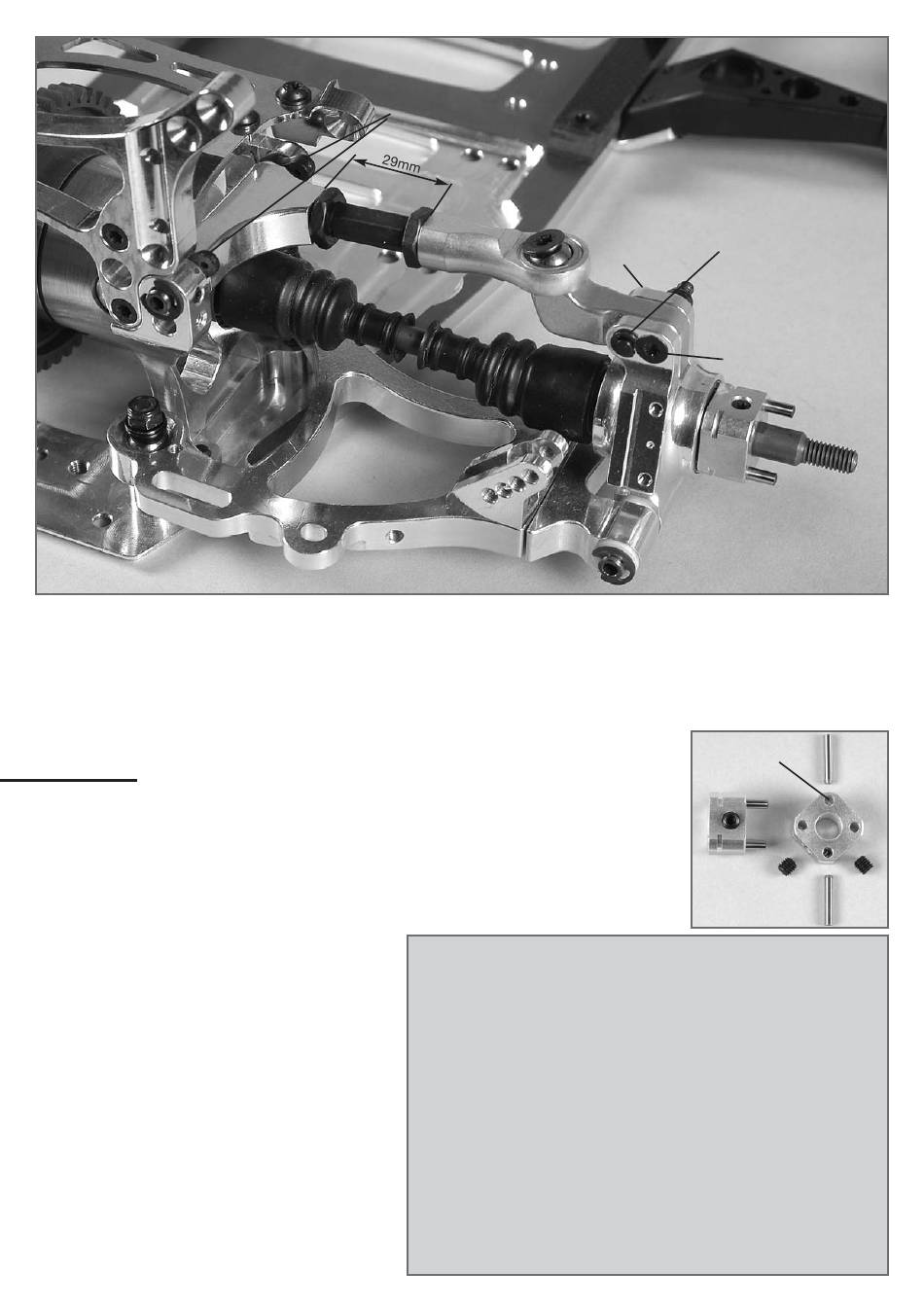

1. Press the guide bush in the alloy wishbone at the
rear top.
2. Screw the hexagon socket nut M8 with left-han-
ded thread on the adjusting screw 39mm. Turn it
in the alloy wishbone, then unscrew the hexagon
nut M8 with right-handed thread and the alloy
ball-and-socket joint on the right-handed screw
of the adjusting screw in a way that the hexagon
of the adjusting screw is centered.
3. Mount the alloy wishbone with the wishbone pin
Ø6x65mm according to the illustration and fix it
with Ø5 retaining washers.
4. Clamp the wishbone pins with the headless pin
M4x4.
5. Press the ball driving axle into the uprights
equipped with ball bearings and fix the square
wheel driver with its offset towards the bearing
using M5x5 headless pins.
6. Mount the ball driving set according to the
enclosed instruction.
7. Fix the alloy upright and the wishbone pin
according to the illustration and fix them using
M3x3 headless pins and Ø 5 retaining washers.
8. Push the distance disks made off rubber in the
round slot of the ball driving axle and the ball
diff. axle. Mount the protecting expansion bend
according to the illustration.
9. Grease the balls and inpress them into the ball
driving shaft. Mount the ball driving according to
the enclosed instruction.
Querlenker mittels Einstellclipse
ausdistanzieren./ Align the
wishbone with adjusting clips.
Schraube/
Screw
M5x20
Achsschenkelverlängerung/
Upright lengthening
1. Mount the alloy upright lengthening according to the illustration and
fix it with the upright pin, Ø 3.2 retaining washer, countersunk screw
M4x25 and M4 stop nut.
2. Screw the ball-and-socket joint with alloy joint ball using the coun-
tersunk screw M5x20 on the upright lengthening.
Tip: The upper wishbone needs to be aligned according to the setting
of the toe-in by means of adjusting clips.
Sicherungs-
scheibe Ø 3,2
Achsschenkelstift
Retaining
Upright pin
washer Ø 3.2
Stopp-Mutter/
Stop nut M4
Schraube/Screw
M4x25
Stifte in das Sack-
loch eindrücken.
Impress the pins
into the pocket
hole.
Position 6
The parts are
in bag C
Baustufe 6
Teile sind
in Beutel C
Hinterachse
Rear axle
