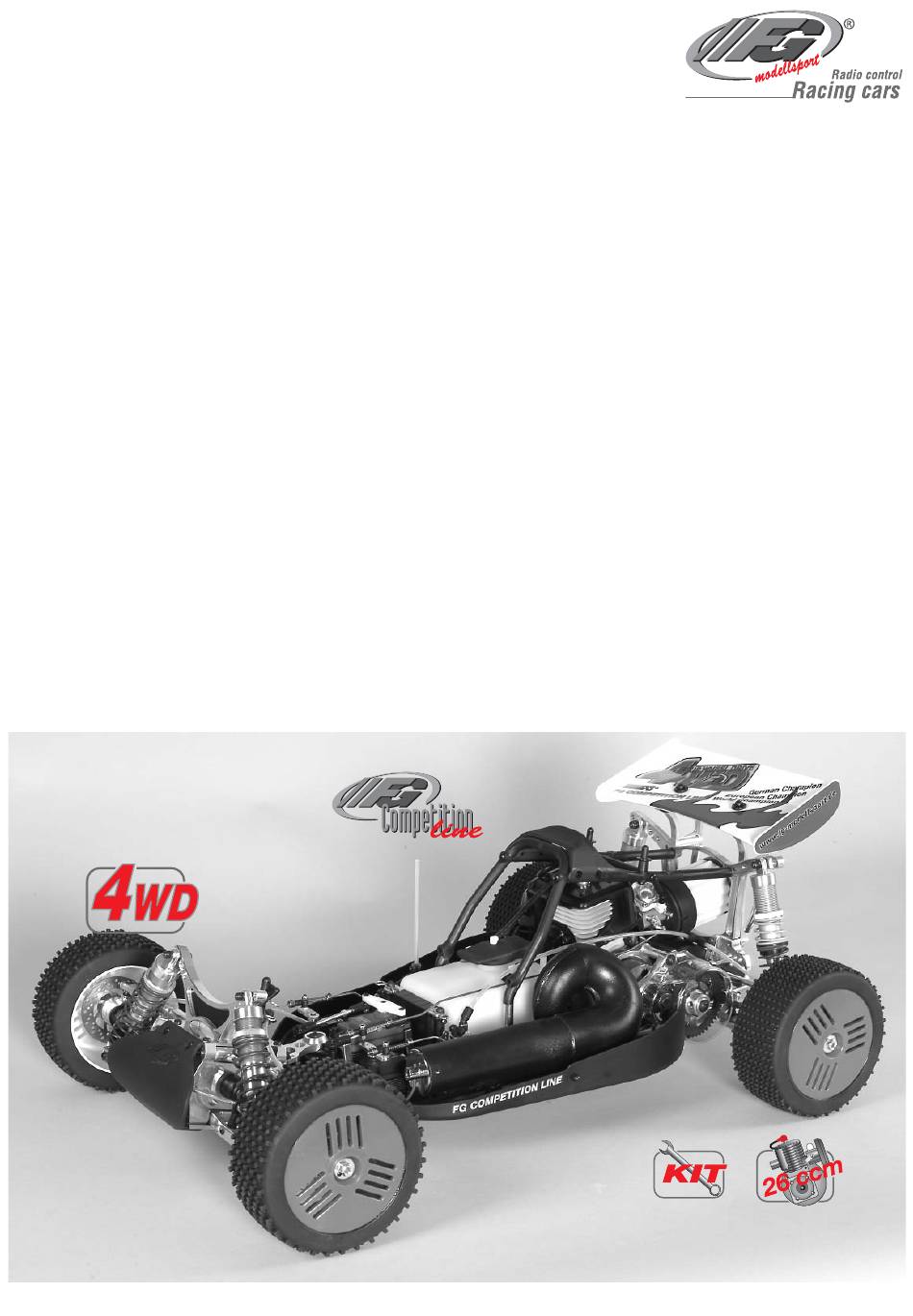

Mounting instruction for 4WD Off-Road Buggy
Leopard 4 Competition, Item N°. 67000
We congratulate you on buying this FG Competition model. Please check the contents of the construction set,
respectively of the bags. The individual bags have been thoroughly packed by us and their weight and content
has been checked. When purchasing the individual bags, please check their weight and their closure by staples
which must not have been removed or opened and closed several times. It is possible that the weight of an in-
dividual bag deviates by 5 grams. In case of claims due to missing parts, you always need to present the label
indicating the weight at your specialized dealer. By checking the weight of the bag, you may exclude that larger
parts or several parts are missing.
Weight of the individual bags/ boxes:
Item N°. 67000
Bag A
= 0,158 kg
Bag B
= 1,265 kg
Bag C
= 0,791 kg
Bag D
= 0,685 kg
Bag E
= 0,743 kg
Bag F
= 0,887 kg
Bag G
= 0,210 kg
Bag H
= 0,442 kg
Bag I
= 0,388 kg
Bag J
= 0,078 kg
Bag K
= 0,332 kg
Bag L
= 0,362 kg
Bag M
= 0,303 kg
Bag N
= 0,029 kg
Bag O
= 0,390 - 0,400 kg
Bag Q
= 0,382 kg
The RCS, accumulators and battery charger are not included in the
delivery volume.
Please thoroughly keep this construction manual for spare parts orders!
FG Modellsport GmbH
Spanningerstr. 2
73650 Winterbach-Germany
Phone: +49 7181 9677-0
Fax: +49 7181 9677-20
info@fg-modellsport.de
www.fg-modellsport.de
E.67000_e_011210
Advertisement
Related Manuals for FG Modellsport Leopard 4 Competition
Summary of Contents for FG Modellsport Leopard 4 Competition
- Page 1 Mounting instruction for 4WD Off-Road Buggy Leopard 4 Competition, Item N°. 67000 We congratulate you on buying this FG Competition model. Please check the contents of the construction set, respectively of the bags. The individual bags have been thoroughly packed by us and their weight and content has been checked.
- Page 2 Warranty conditions for engines: FG Modellsport assumes no liability for defects if the engine has been modified by installation of parts of foreign origin or if engine parts for tuning purposes were worked on or were modified and the damage stands in causal interrelationship with the modification.
- Page 3 Adjusting screw for self- Position 1 locking differential Parts are in Screw buffer plates to bag C the alum. differential hou- Plastic toothed sing using M4x8 counter- Front left plastic belt wheel front sunk screws. spacer disk 42 teeth Screw Alum.
- Page 4 Ball diff. Diff. bevel gear B driving axle Ball bearing Position 3 15x28x7 Parts are in Diff. bevel gear A bag B Shim rings 8x20x0,1 Shim ring Bronze 5x17x0,1 Steel gearwheel bush 48 teeth Needle bea- ring f. Diff. Screw Rear plastic tooth M4x40 wheel 42 teeth...
- Page 5 1. Press the right alum. front axle 1. Place the toothed belt on the rear differential gear as Position 5 housing on the front differential pictured in position 6. Front Parts are in gear, guide pulley 16mm, toothed differential 2. Press the left and right alum. rear axle mounts on bag C gear belt wheel 12 t (as pictured in...
- Page 6 1. Press the M4x12 pan head screws from underneath into the Position 9 Alum. rear alum. chassis and fix the le/ri ABS splash guard using Ø4,3 disks Parts are in axle mount and stop nuts M4. Do not fasten the front left ABS splash guard. bag A+B right 2.
- Page 7 Alum. square Alum. wheel driver Securing upright 9,5mm/M6 disk Ø5 left Wheel nut Headless Headless Rear lower pin M3x3 pin M6x6 alum. wish- Position 12 bone Parts are in Adjusting clips bag D Wishbone pin 6x65 Ball driving axle Distance disk Ball diff.
- Page 8 Stop nut Plastic bush Ø5/Ø7x6,5 Disk Upper alum. Ø3,2 shock absor- Plastic guiding ber seal disk Threaded piston rod, short + long Threaded piston rod, Volume short + long O-ring control Pliers Item N°. Plastic damper Ø22x1,5 Ø20 06854 piston Plastic adjusting Lower alum.
- Page 9 1. Fix the rear alum. damper plate Body clip Adjusting part to the le/ri alum. rear axle mounts Position 15 spoiler mount Parts are in using M4x18 pan head screws bag B,E+M and disks Ø4,3 ( Mount the cut- out of the alum. shock mount in driving direction).
- Page 10 1. Insert the o-ring for the air filter adap- Position 17 Screw Filter cover Parts are in ter in the basic body 4,2x13 bag H+J and fix it to the air fil- Foam filter ter adapter using Air filter 4,2x13 countersunk adapter Engine screws.
- Page 11 1. Insert the premounted engine in the alum. chassis as illustrated in position 13 and fix it using an M4x25 pan head screw and disk Ø4,3 through the left alum. rear axle mount, also Position 19 Parts are in fix it with the alum. connecting brace at the alum. gear flange-engine mount. Just apply the bag H+K M4x25 pan head screw, do not tighten yet (see also position 20).
- Page 12 Install fuel hoses as illustrated and Position 21 shorten if necessary. Parts are in bag K Return hose Venting hose Position 22 Parts are in Intake hose bag B Clip the rope star- ter in the holder Plastic Position 23 brace short Parts are in bag M...
- Page 13 Position 24 Parts are in bag O Manifold Hose clamp Exhaust hose FG Steel-Power Tuning pipe Heat one end of the exhaust hose slightly with a lighter and press it on the FG Steel- Power Tuning pipe as shown in position 24, FG Steel-Power then fix it using a hose clamp.
- Page 14 2. Mount distance bolts Ø8x28mm to the right ABS Position 26 splash guard using 4,2x13 pan head screws and Throttle/brake Parts are in disks Ø4,3 as shown in position 26. servo bag L 3. Fix the small plastic servo mount to the alum. chassis using 4,2x16 countersunk screws.
- Page 15 Screw Adjust track rod to Alum. joint ball M4x16 Adjusting screw approx. 71 mm ri./le. M7x110 Alum. joint ball Ball joint 10mm M7 Track rod mounted Ball joint Servo saver 10mm M7 Screw Stop Screw mounted 2,9x13 nut M4 M3x25 Position 30 Screw Parts are in...
- Page 16 1. Secure the impressed ball Position 33 bushes in the front lower alum. Parts are in wishbones with M3x6 pan head bag F screws. 2. Press the guide bushes with collar into the front lower alum. wishbones. 3. Screw the M5x16 headless pins centric from below into the front lower alum.
- Page 17 Position 36 1. Mount the support for body mount with body clip to the adjustable body mount 54mm and Parts are in fix it to the reinforcing plate for front axle as shown in position 36. bag G 2. Fix the front alum. damper plate to the reinforcing plate for front axle using M5x14 counter- sunk screws (see position 36).
- Page 18 Brake tube to the front wheels Position 40 Parts are in bag Q Front disk brake Angle Protection connection Brake servo Servo Collet Main brake Collet cylinder Push rod Stop Pressure Screw nut M3 grommet spring M3x18 All metric screws need to be secured with screw Front disk brake retention lacquer, pay attention to enclosed brake Position 41...
- Page 19 Rear disk brake Brake tube to Position 43 the rear wheels Parts are in bag Q Angle con- nection Protection Throttle/Brake servo Main brake cylinder Servo Stop nut M3 Collet Push rod grommet Collet Screw M3x18 Position 44 The brake tube at the front respectively the rear ax- Parts are in bag Q le must not be squeezed or pulled by chassis com-...
- Page 20 Exploded view for Leopard 4 Competition, Item N°. 67000 8501/2 6743 6067 E.67000-290710 8500/1 8500/3 8500/1 8499/3 8496/1 8491 6920/8 6920/8 8491 6067 8500/1 8500/2 8500/2 8496/1 6920/8 67320 Alum. 8500/2 shock absorber 8499/3 67320/3 long, Ø24, 2pcs. 66295/100 Shock absor-...
- Page 21 6912/13 6912/16 60100/2 6464/4 66218/1 6464/5 6451/3 6465/1 7384 6451/4 6912/13 6738/5 6926/40 67299/2 67155 Model stickers 6020 6923/16 6925/10 6926/16 7332 6468 66217 6734/4 7473/2 6930/5 6402/1 7315 6920/14 7118 6925/25 6926/14 6036/5 7315/1 7318 6734/4 6738/3 7316/1 66216 6925/10 67238 6734/4...
