5.2.4
AMC7812EVM DAC Page
The DAC page gives the user an interface to observe and control the different data registers, modes, and
configurations available for each individual DAC channel. The AMC7812 contains 12 DACs with 12 bits of
resolution. The DACs can be used with an Internal (default) or External reference. To fully activate the
DAC block, set the Enable Reference Block. To set the DAC channels individually, select their respective
checkbox in the Power DAC column (see
The DAC page also displays two input fields under the Program DAC column, shown in
SBAU177D – September 2010 – Revised August 2014
Submit Documentation Feedback

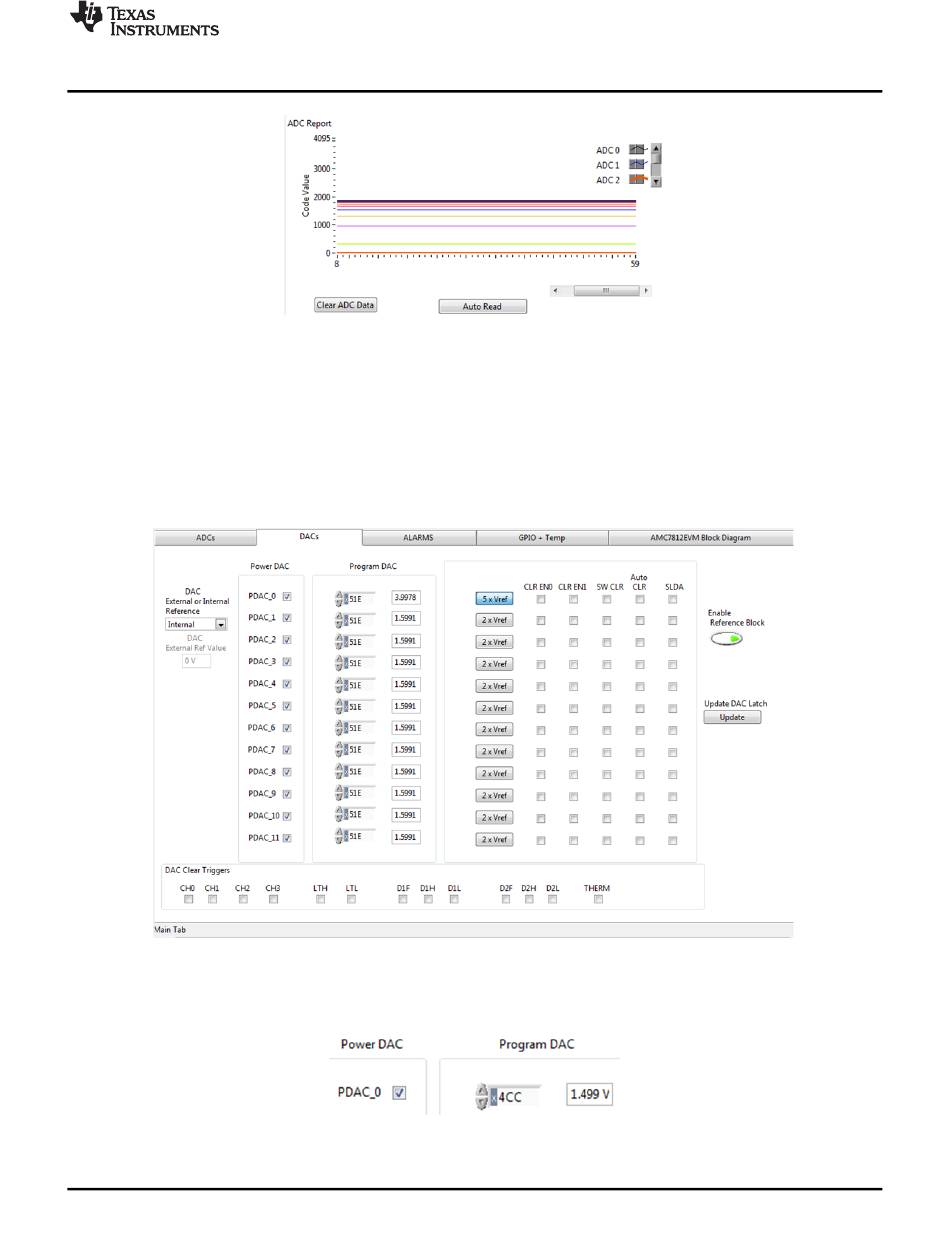

Figure 17. ADC Report Window
Figure
18).
Figure 18. DAC Page
Figure 19. Program DAC Registers
Copyright © 2010–2014, Texas Instruments Incorporated
AMC7812EVM Software Overview
Figure
19.
AMC7812EVM-PDK User's Guide
17
