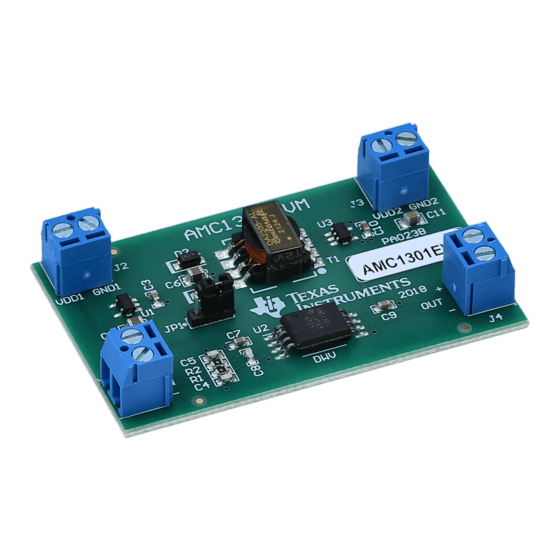

This user's guide describes the characteristics, operation, and use of the AMC1301EVM. This evaluation
module (EVM) is an evaluation and development kit for evaluating the AMC1301, a precision isolation
amplifier. A complete circuit description as well as schematic diagram and bill of materials are included.
The following related documents are available through the Texas Instruments web site at www.ti.com.
1
2
3
4
EVM Operation
5
Layout, BOM, and Schematic
1
AMC1301EVM Schematic: Analog Input Section
2
...................................................................................................................
3
4
5
AMC1301 Silkscreen Drawing
6
AMC1301EVM Schematic
1
Related Documentation
2
J1: Analog Inputs
3
J2: Isolated Power
4
J3: VDD2 Power
5
J4: Analog Output
6
All trademarks are the property of their respective owners.
SBAU256 - May 2016
Submit Documentation Feedback
Table 1. Related Documentation
Device
AMC1301
SN6501
...............................................................................................................
..............................................................................................................
..............................................................................................................
...............................................................................................................
..............................................................................................
......................................................................................................
.............................................................................................
..................................................................................................
.....................................................................................................
............................................................................................................
...........................................................................................................
.............................................................................................................
............................................................................................................
...........................................................................................
Copyright © 2016, Texas Instruments Incorporated
AMC1301 Evaluation Module
Literature Number
SBAS667
SLLSEA0
Contents
List of Figures
.......................................................................
.....................................................................
List of Tables
User's Guide
SBAU256 - May 2016
AMC1301 Evaluation Module
2
2
3
4
5
2
3
3
3
5
7
1
4
4
4
4
6
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMC1301EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments AMC1301EVM

Summary of Contents for Texas Instruments AMC1301EVM

  • Page 1: Table Of Contents

    SBAU256 – May 2016 AMC1301 Evaluation Module This user's guide describes the characteristics, operation, and use of the AMC1301EVM. This evaluation module (EVM) is an evaluation and development kit for evaluating the AMC1301, a precision isolation amplifier. A complete circuit description as well as schematic diagram and bill of materials are included.

  • Page 2: Evm Overview

    AMC1301 device installed at U2. Analog Inputs The analog inputs to the AMC1301EVM printed-circuit board (PCB) consists of optional RC filter circuit. By default, R1 and R2 on the analog input are populated as 0-Ω resistors. Capacitors C4, C5, and C8 are not installed.

  • Page 3: Power Supplies

    Analog Interface www.ti.com Analog Outputs The analog outputs from the AMC1301EVM board are fully-differential signals centered at VDD2 / 2. The outputs are available on the two screw terminals of J4, as Figure 2 shows. VOUT+ VOUT- Figure 2. AMC1301EVM Schematic: Analog Output Section Power Supplies The AMC1301 requires two separate power rails, VDD1 and VDD2.
  • Page 4 J1.2 IN– Inverting analog input to the AMC1301 (pin 3) The isolated power input to the AMC1301EVM PCB can be applied directly to J2, pins 1 and 2. Table 3 lists the details of J2. Table 3. J2: Isolated Power...
  • Page 5 AMC1301 PCB layout. NOTE: Board layout is not to scale. This figure is intended to show how the board is laid out; it is not intended to be used for manufacturing AMC1301EVM PCBs. Figure 5. AMC1301 Silkscreen Drawing SBAU256 –...

  • Page 6: Amc1301Evm Bill Of Materials

    The bills of material is listed in Table NOTE: All components should be RoHS compliant. Some part numbers may be either leaded or RoHS. Verify that purchased components are RoHS compliant. Table 6. AMC1301EVM Bill of Materials Item Ref Des Description...
  • Page 7 AMC1301EVM Number: PA0023 Rev: Sheet Title: Texas Instruments and/or its licensors do not warrant the ac curacy or completeness of this specification or any informa tion contained therein. Texas Instruments and/or its licen sors do not SVN Rev: Version control disabled...
  • Page 8 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
  • Page 9 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 10 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
  • Page 11 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
  • Page 12 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
  • Page 13 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments AMC1301EVM...
