AMC7812EVM Hardware Overview

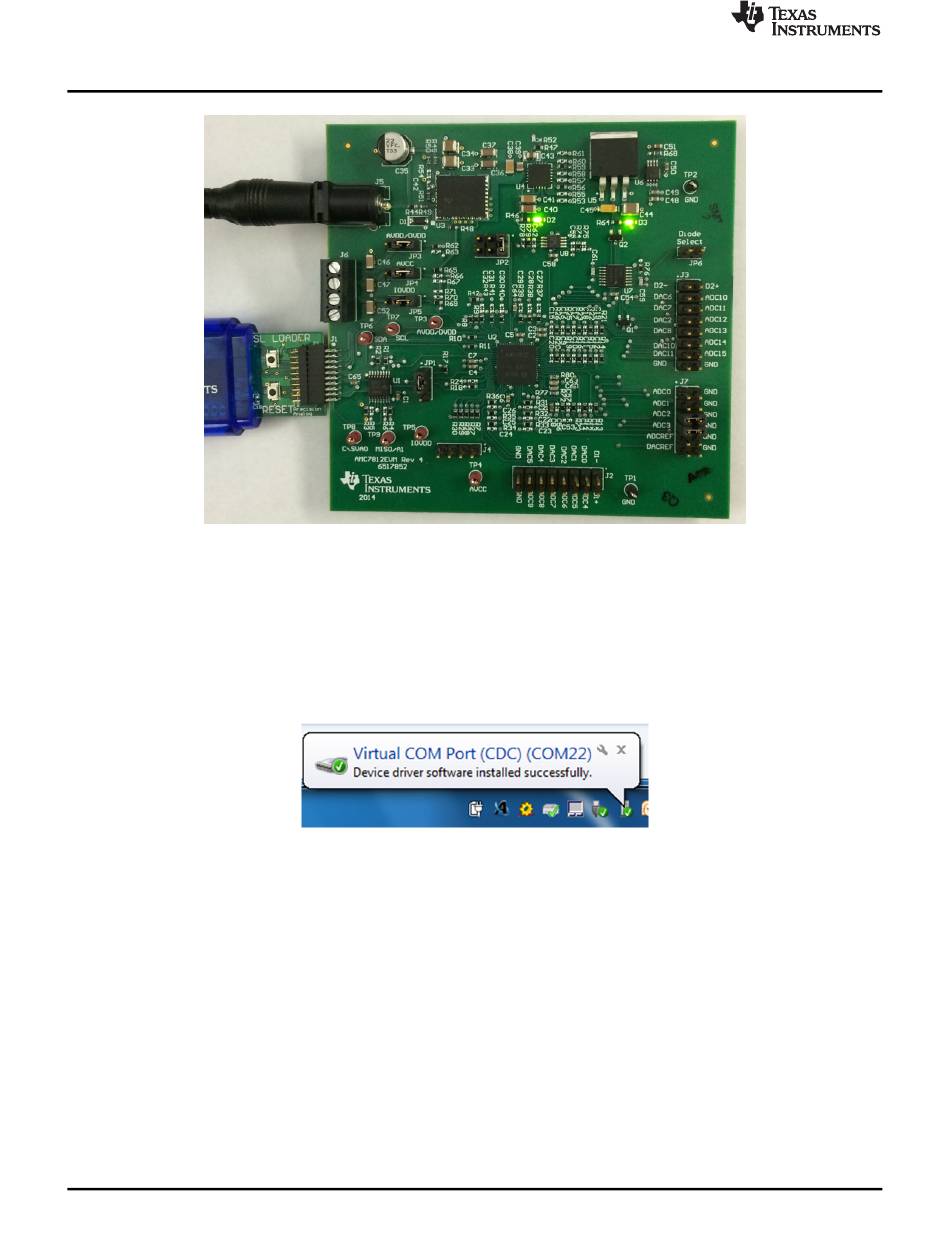

Figure 6. Typical Hardware Connections on the AMC7812EVM
4.3
Connecting the USB Cable to the SDM-USB-DIG
Figure 7
shows the typical response when connecting the SDM-USB-DIG platform to a USB port of a PC
for the first time. The PC usually responds with a Found New Hardware, USB Device popup dialog
window. The popup window then changes to Found New Hardware, Virtual COM Port (CDC). This popup
indicates that the device is ready for use. The CDC driver is used for communication between the SDM-
USB-DIG and PC.
Figure 7. Confirmation of SDM-USB-DIG Platform Driver Installation
10
