AMC7812EVM Software Overview
5.2.2 AMC7812EVM Low-Level Configuration Page
The AMC7812EVM features a register map page that allows access to low-level communication by
directly writing to and reading from the AMC7812 registers. Selecting a register on the Register Map list
presents a description of the values in that register and also displays information such as the register's
address, default value, size, and current value. The register values can be modified through the Hex Write
Register field, or set through Boolean checkboxes in the Register Data column, as displayed in
This low-level configuration page also provides the option to save the register map settings as a
configuration file, which is done by pressing the Save Config button. Additionally, the configuration files
can be accessed through the Load Config button.
5.2.3 AMC7812EVM ADC Page
This page provides insight into the functionality of the AMC7812's 16-channel 12-bit ADC. The ADC block
can be configured as 16 single-ended inputs (ADC0 to ADC15) or 2 differential inputs (ADC0 to ADC3)
plus 12 single-ended (ADC4 to ADC15). The analog input range for the device can be selected as 0 V to
Vref (2.5 V) or 0 V to 2 × Vref (5 V).
14
AMC7812EVM-PDK User's Guide

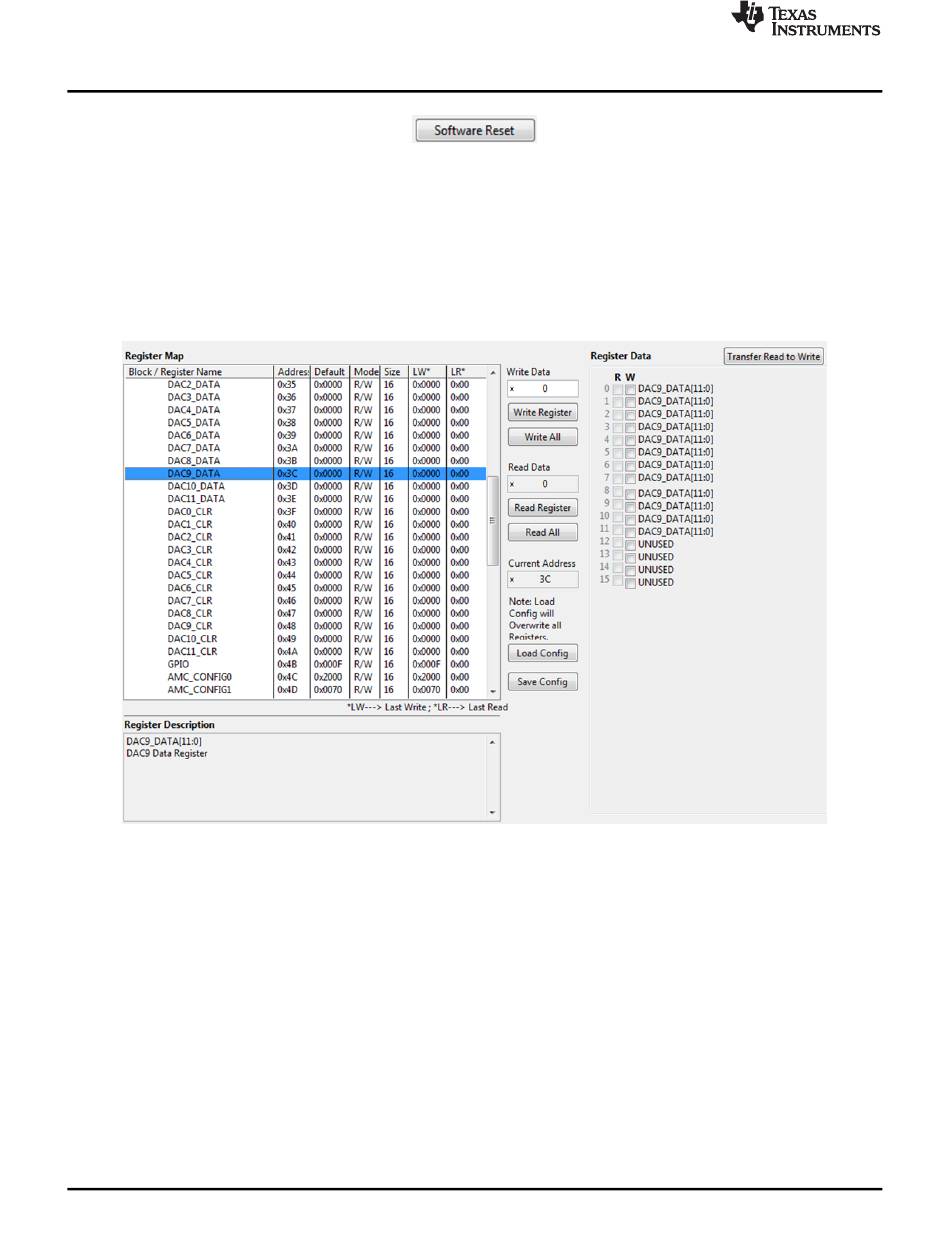

Figure 10. Software Reset Button
Figure 11. Low-Level Configuration Page
Figure 12 displays the ADC Page.
Copyright © 2010–2014, Texas Instruments Incorporated
SBAU177D – September 2010 – Revised August 2014
Submit Documentation Feedback
www.ti.com
Figure 11.
