Card reader

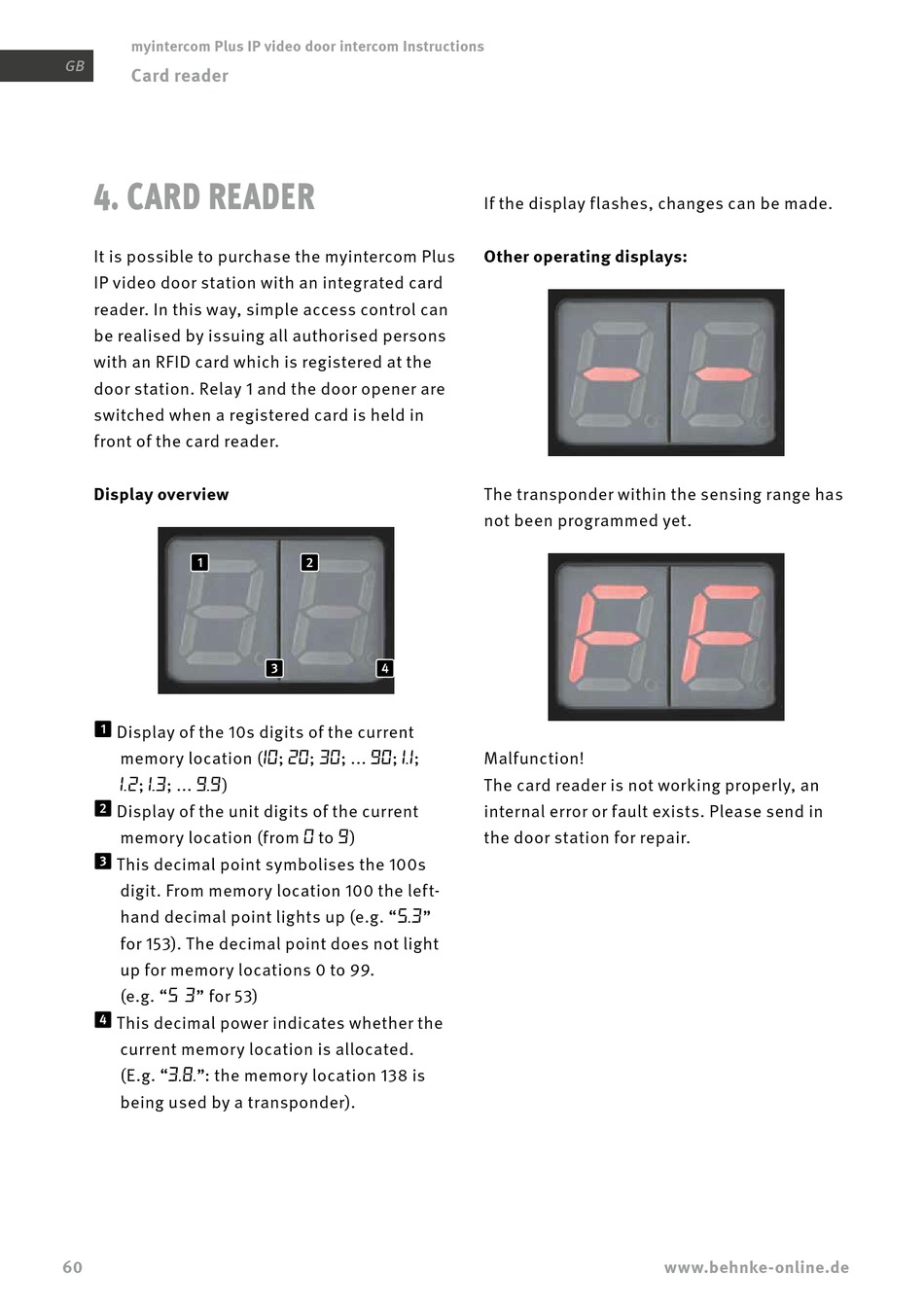

4. CARD READER
It is possible to purchase the myintercom Plus
IP video door station with an integrated card
reader. In this way, simple access control can
be realised by issuing all authorised persons
with an RFID card which is registered at the
door station. Relay 1 and the door opener are
switched when a registered card is held in
front of the card reader.
Display overview
Display of the 10s digits of the current
memory location (
; ; ... )
1.2 1.3 9.9
Display of the unit digits of the current
memory location (from
This decimal point symbolises the 100s
digit. From memory location 100 the left-
hand decimal point lights up (e.g. "
for 153). The decimal point does not light
up for memory locations 0 to 99.
(e.g. " " for 53)
5 3
This decimal power indicates whether the
current memory location is allocated.
(E.g. " ": the memory location 138 is
3.8.
being used by a transponder).
60
; ; ; ... ; ;
10 20 30 90 1.1
to )
0 9
"
5.3
If the display flashes, changes can be made.
Other operating displays:
The transponder within the sensing range has
not been programmed yet.
Malfunction!
The card reader is not working properly, an
internal error or fault exists. Please send in
the door station for repair.
