2.3. Door opener/Relay/Gong

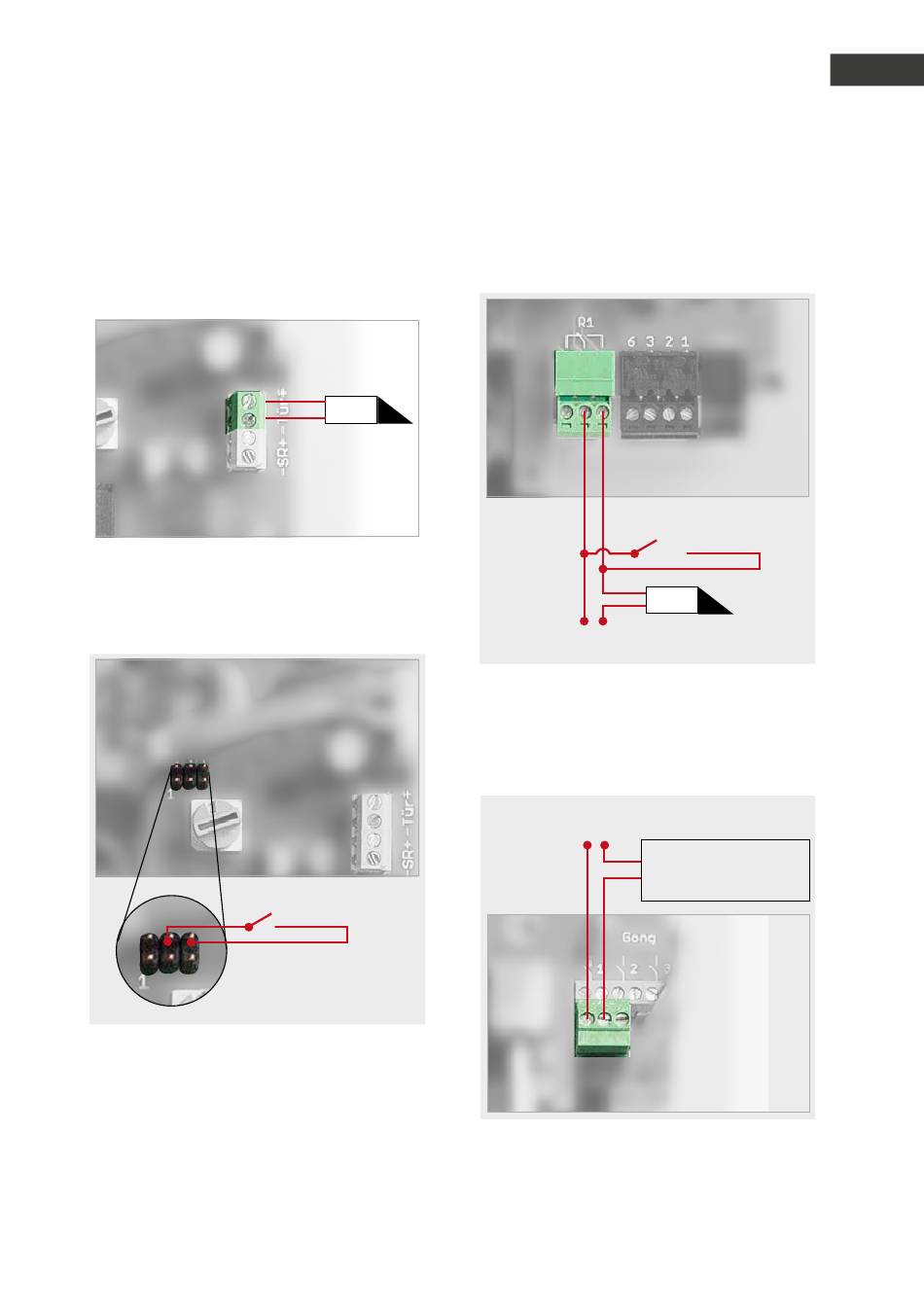

Remove the cover of the door station housing
and connect the components as follows:
The door opener, which the door station
operates directly (12 V DC / AC max. 9 W), is
connected to the terminal marked "door".
If the door opener is supplied directly via the
door station, an external door opener button
can be connected to open the door.
www.behnke-online.de
DO
Optional external door
opener button (provided
by the customer)
myintercom Plus IP video door intercom Instructions
Relay 1 is available at the terminal marked
"R1" and relay 2 is available at the terminal
marked "R2".
External door opener power adapter
(see Technical Features)
Relay 1 connection
Note: The door opener voltage and relay 1
are always connected in parallel.
External power adapter
(see Technical Features)
Relay 2 connection
Installation
Optional external door
opener button (provided
by the customer)
DO
Lighting control,
Garage door opener,
Barrier control, ...
