Cabling

2.2 Cabling

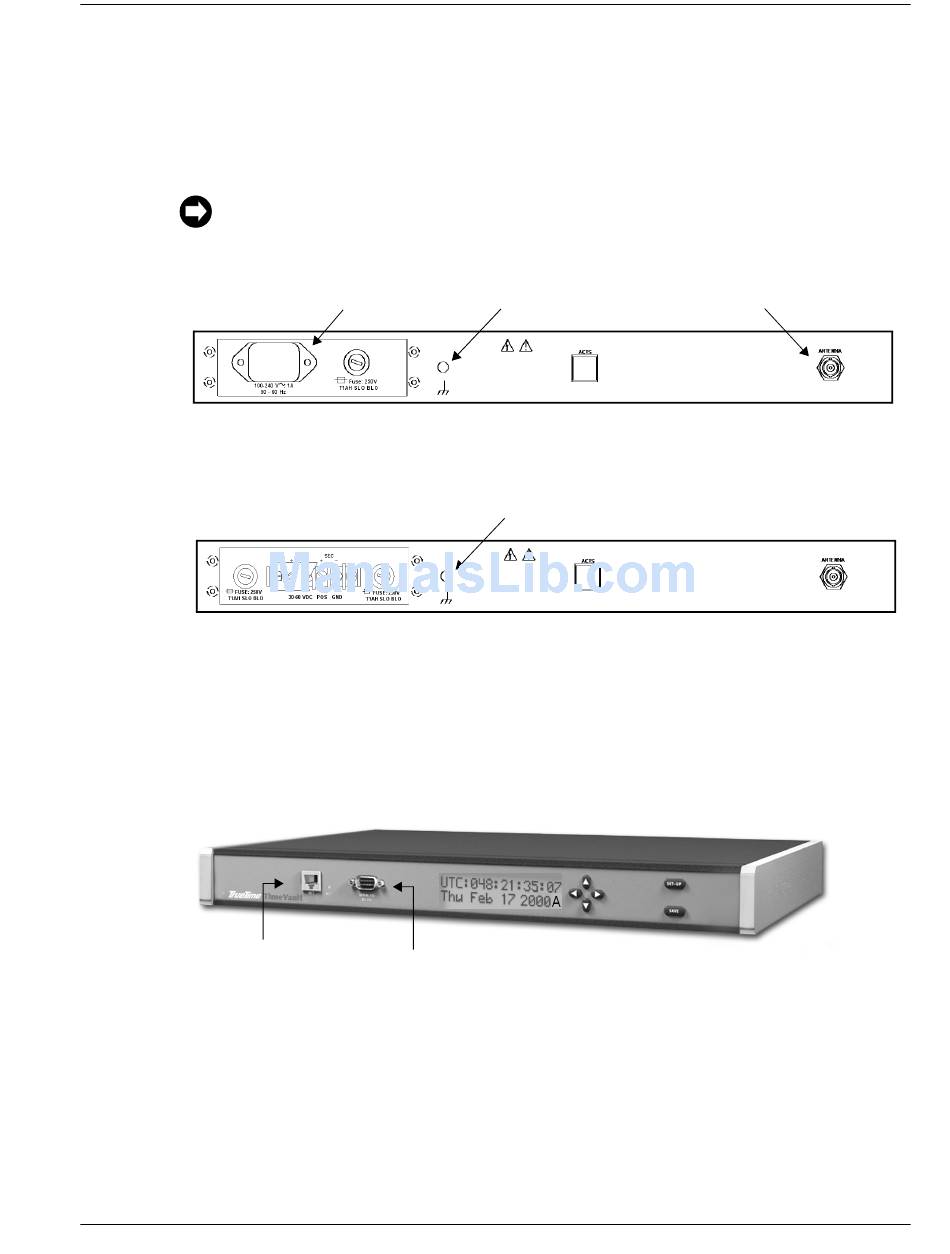

Refer to the figures below for TimeVault connector locations. The numbers in the
drawing refer to that connector's position in Table 2-1.
Connect the cables in the order listed in Table 2-1 below. In order to avoid network addressing
conflicts, be sure to configure network parameters before connecting the Ethernet cable.
100-240 VAC Power Input (4)
–36 to –60 VDC Terminal Strip (4)
For the –48 VDC model, connect the rear panel chassis ground to your system ground, the
positive connection from the power supply to the "+" of the rear panel terminal strip, and
the negative connection from the power supply to the "–" of the rear panel terminal strip.
NET Port (5)
6000-100Ch2.fm Rev. D
Chassis Ground (3)
Figure 2-3: TimeVault Back Panel Cabling Illustration (AC Mains)
Chassis Ground (3)
Figure 2-4: TimeVault Back Panel Cabling Illustration (–48 VDC)
Serial Port (6)
Figure 2-5: TimeVault Front Panel Cabling Illustration
TimeVault™ User's Manual
Chapter 2: Installation and Start-Up
ACTS Modem (2) 12 V Antenna (1)
ACTS Modem (2)
12 V Antenna (1)
2-15
