2.1

Site Preparation

2.1.1

Mounting Instructions

To securely mount TimeVault in any EIA standard 19-inch (48.26-cm) rack system, use
the equipment supplied in Symmetricom's Rack Mount Kit and follow the steps outlined
below.
The Rack Mount Kit contains:
• 2 mounting brackets (part number 206-719)
• 4 flat-head, Phillips screws (part number 241-008-005, 8-32 x 5/8)
To rack mount TimeVault:
1. Remove and discard the two factory-installed flat head (Phillips) screws from the front
end of a TimeVault side panel.
2. Place a rack mount bracket on the side panel, so that the countersunk screw holes in
the bracket line up with the screw holes in the panel.
3. Place 2 flat-head Phillips screws from the Rack Mount Kit through the holes in the
bracket and into TimeVault.
4. Tighten the screws to the following specifications:
Use a #2 size Phillips bit with an inch ounce torque setting of 4 ¼ to 4 ¾ (high).
5. Repeat steps 1-4 to install the other rack mount bracket on the unit's other side panel.
6000-100Ch2.fm Rev. D

Installation and Start-Up

TimeVault™ User's Manual
2

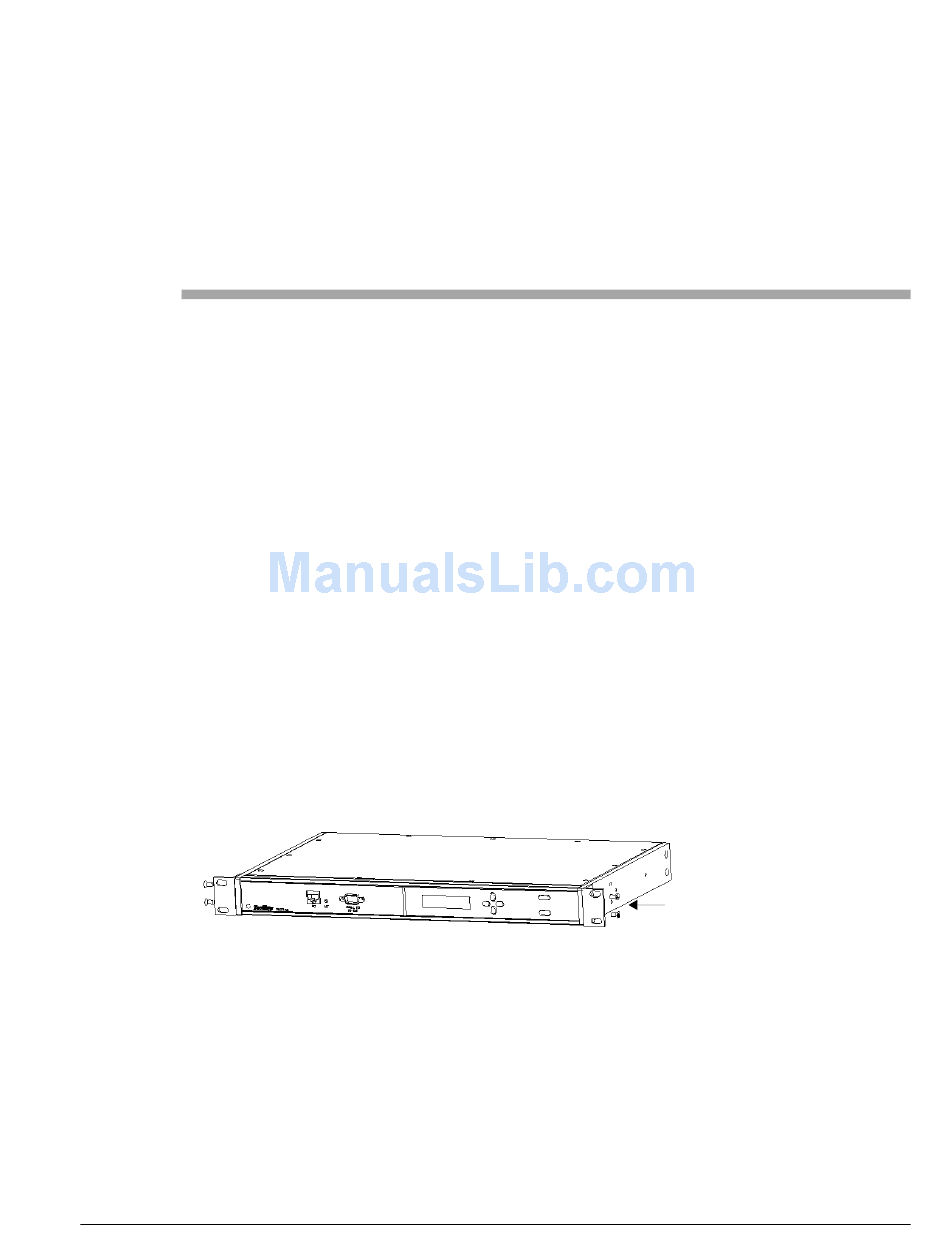

Replace the factory-installed
screws with screws from
the Rack Mount Kit
2-11
