4.3

Batteries

Model Recommended battery capacity
12V/2000W-100A
12V/3000W-160A
24V/2000W-60A
24V/3000W-70A
4.4

Connection example

Note: This schematic illustrates the general placement of the CombiMaster Inverter/Charger in a circuit.
It is not meant to provide detailed wiring instructions for any particular electrical installation.

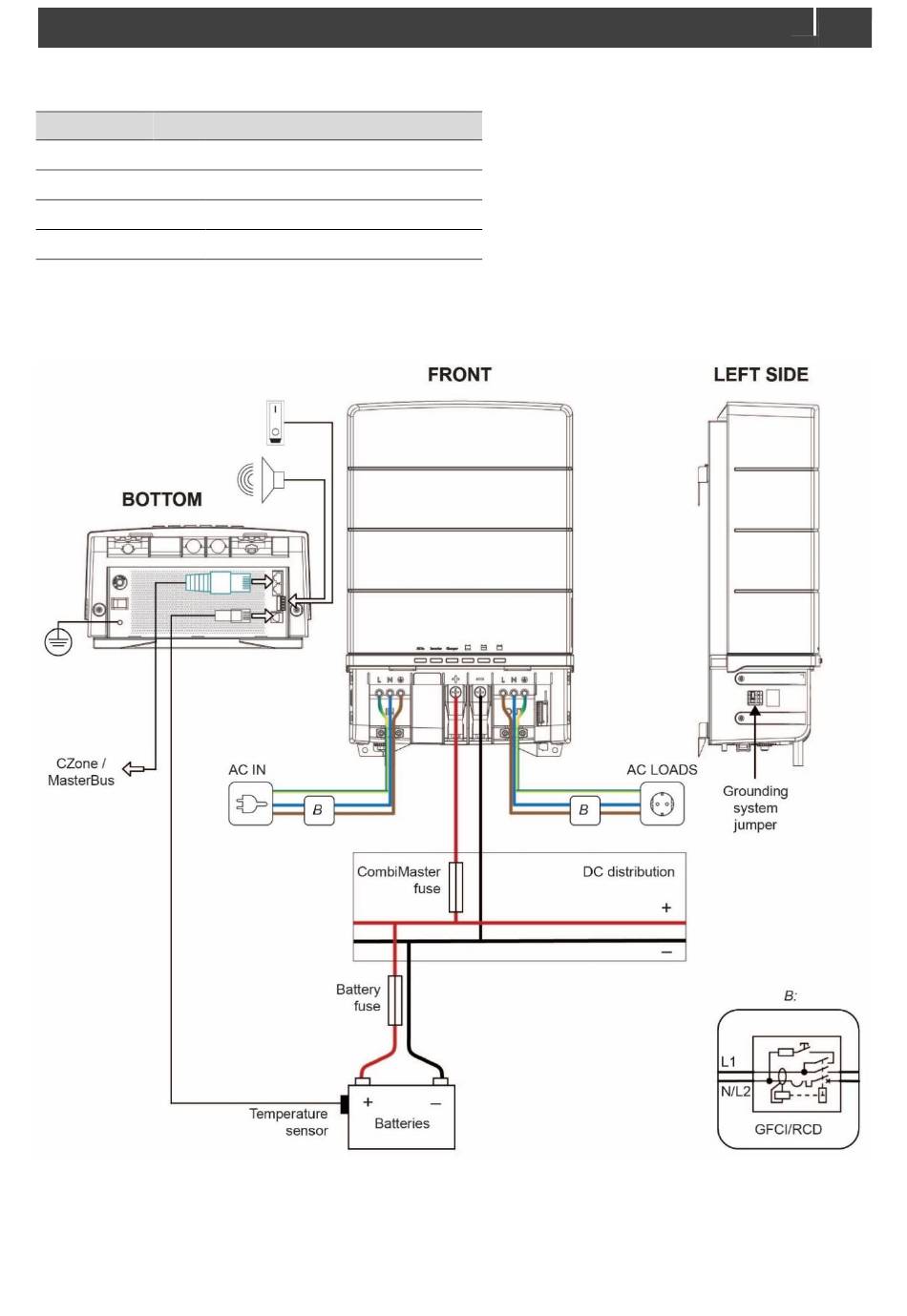

Figure 3: Installation drawing CombiMaster Inverter/Charger
CombiMaster 120V Series – User and Installation Manual
200 − 1000 Ah
320 − 1600 Ah
120 − 600 Ah
140 − 700 Ah
Minimum based on Mastervolt Gel
batteries. If connecting batteries of a
different manufacturer, make sure the
manufacturer's recommendations are met.
11
