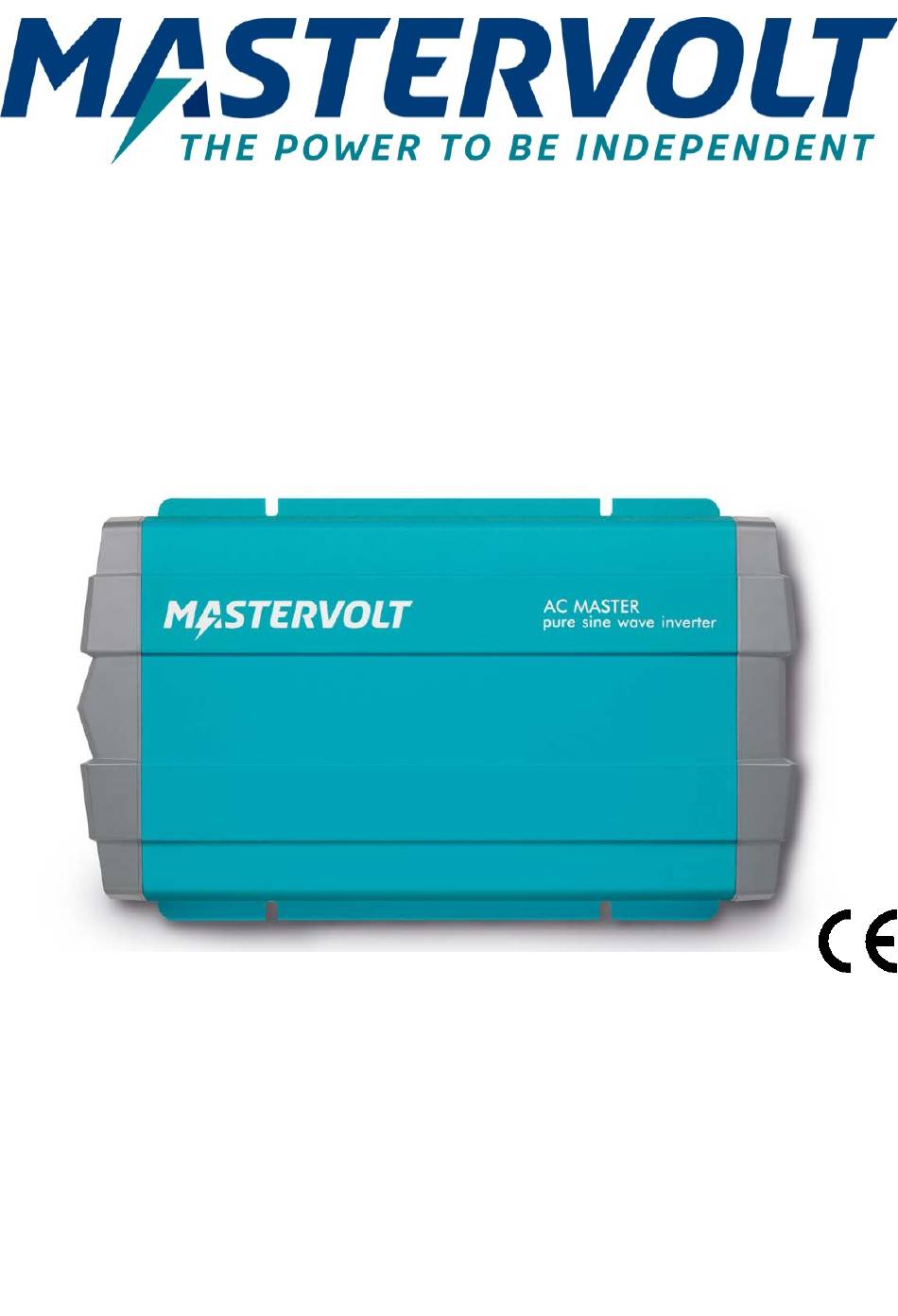

- Page 1 AC Master PURE SINE WAVE INVERTER 12/700, 12/1000, 12/1500, 12/2000 24/700, 24/1000, 24/1500, 24/2000 USER AND INSTALLATION MANUAL 10000011348/03...
-
Page 2: Product Description

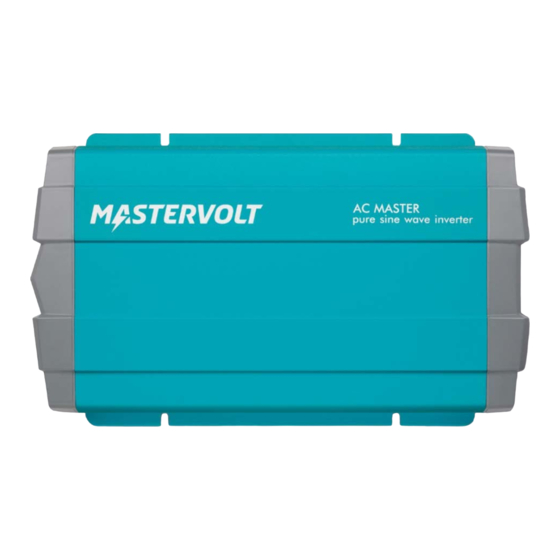

AC Master Product description The AC Master is a sine wave inverter. The AC Master converts DC energy from the battery into AC output power. Identification label Never remove the identification label. - Page 3 AC Master Dimensions Model A (mm/in) B (mm/in) C (mm/in) D (mm/in) E (mm/in) F (mm/in) 330 / 13,0 80 / 3,1 132 / 5,2 200 / 7,9 7 / 0,3 83 / 3,3 1000 372 / 14,6 69 / 2,7 196 / 7,7 200 / 7,9 7 / 0,3...
- Page 4 AC Master DC input Remote port (RJ-11) Remote control terminal Chassis ground terminal Battery input...
- Page 5 AC Master AC output AC output socket SCHUKO EU GFCI US Power saving mode adjustment DIP switches LED indicators Main switch...
-
Page 6: Installation Instructions
AC Master Installation instructions This section provides a step by step instruction of the basic installation of the AC Master. However; please review the entire manual for connection of additional features and to ensure best performance and years of trouble-free operation. Read the safety instructions! See section 1 on page 12. - Page 7 AC Master Disconnect power supplies Switch OFF the AC Master Select a location that complies with section 6 on page 13.
- Page 8 AC Master Mount the AC Master with four screws to a solid surface. Connect the chassis ground terminal to the central grounding point of the vehicle/ship.
- Page 9 AC Master Optional: Connect remote panel or remote switch, see section 6 on page 13. Connect the battery to the DC input. 700/1000 1500/2000...
- Page 10 AC Master Integrate a fuse holder in the positive battery wire, but do not place the fuse yet.
- Page 11 AC Master Connect the AC load. See section 5 on page 13 for instructions on neutral grounding. 10. Check all wiring. If all wiring is OK: Place the inverter fuse. 11. Switch ON the AC Master. In case of remote operation choose REMOTE.
-
Page 12: Safety Instructions
Use that is inconsistent with the purpose of the product. 3. Warranty Mastervolt assures the product warranty of the AC Master during two years after purchase, on the condition that the product is installed and used according to the instructions in this manual. -
Page 13: Installation
ENGLISH 5. Neutral grounding For safe installation: • The chassis ground terminal must be connected to the central grounding point of the vehicle/ ship. • The neutral conductor (N) of the AC output of the AC Master must be connected to the safety ground (PE/GND) and a ground fault circuit-interrupter (GFCI) must be integrated in the wiring of the AC output. - Page 14 ENGLISH Remote control terminal (optional) The remote control terminal offers two functions: • Alarm contact (dry contact) The alarm contact switches when a fault occurs. • Remote switch Install a switch for remote operation. Make sure the main switch is at “REMOTE” position. Alarm contact (maximum load 30 V / 1 A) Normally Open (NO) Common...
- Page 15 ENGLISH Output frequency selection Frequency DIP switch 3 50 Hz 60 Hz To save energy from the battery in no load operation, DIP switch 4 can be used to enable the Power Saving Mode. Power Saving Mode Mode DIP switch 4 Power Saving OFF Power Saving ON The Power Saving Mode scans the output and compares the detected load to the set threshold...
-
Page 16: Operation
ENGLISH 8. Operation LED indicators Input Voltage Level LED LED status DC 12 V DC 24V < 11.0 V < 22.0 V Orange 11.0 ~ 11.5 V 22.0 ~ 23.0 V Green 11.5 ~ 15.0 V 23.0 ~ 30.0 V Orange 15.0 ~ 15.5 V 30.0 ~ 31.0 V... - Page 17 ENGLISH LED indication Meaning What to do? DC-input Check if DC input voltage too low voltage too because of voltage drop across the Red, slow blinking DC cables due to too long or too narrow cables. Reduce the length of the DC cables or use cables with a larger gauge.
- Page 18 ENGLISH AC Master 12/700-230 AC Master 24/700-230 Product code 28010700 28020700 General specifications Output voltage 200/220/230/240 Vac (± 3%) – 200/220/230/240 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage...
- Page 19 ENGLISH AC Master 12/700-120 AC Master 24/700-120 Product code 28015700 28025700 General specifications Output voltage 100/110/115/120 Vac (± 3%) – 100/110/115/120 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage...
- Page 20 ENGLISH AC Master 12/1000-230 AC Master 24/1000-230 Product code 28011000 28021000 General specifications Output voltage 200/220/230/240 Vac (± 3%) – 200/220/230/240 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage 12 V 24 V Cont.
- Page 21 ENGLISH AC Master 12/1500-230 AC Master 24/1500-230 Product code 28011500 28021500 General specifications Output voltage 200/220/230/240 Vac (± 3%) – 200/220/230/240 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage 12 V 24 V Cont.
- Page 22 ENGLISH AC Master 12/2000-230 AC Master 24/2000-230 Product code 28012000 28022000 General specifications Output voltage 200/220/230/240 Vac (± 3%) – 200/220/230/240 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage 12 V 24 V Cont.
- Page 23 ENGLISH AC Master 12/2000-120 AC Master 24/2000-120 Product code 28512000 28522000 General specifications Output voltage 100/110/115/120 Vac (± 3%) – 100/110/115/120 Vac (± 3%) – 50/60 Hz (± 0,5%) 50/60 Hz (± 0,5%) Output waveform True sine True sine Nom. battery voltage 12 V 24 V Cont.
