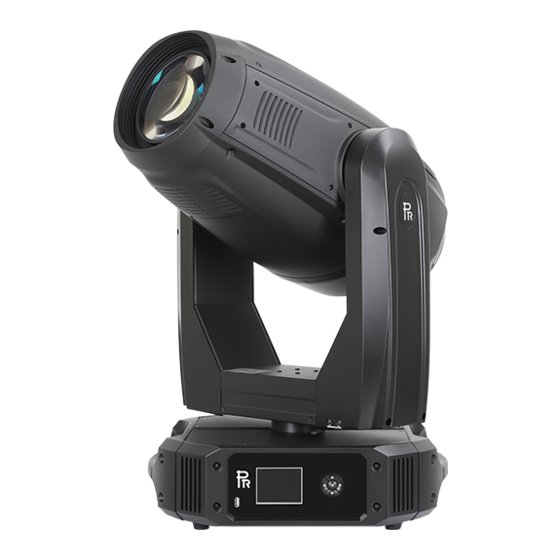

PR-6000 SPOT (1400W)
PR-2930
The user manual contains important information about the safe installation and use of a projector. Please read and
follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-6000 SPOT and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting PR-6000 SPOT

Summary of Contents for PR Lighting PR-6000 SPOT

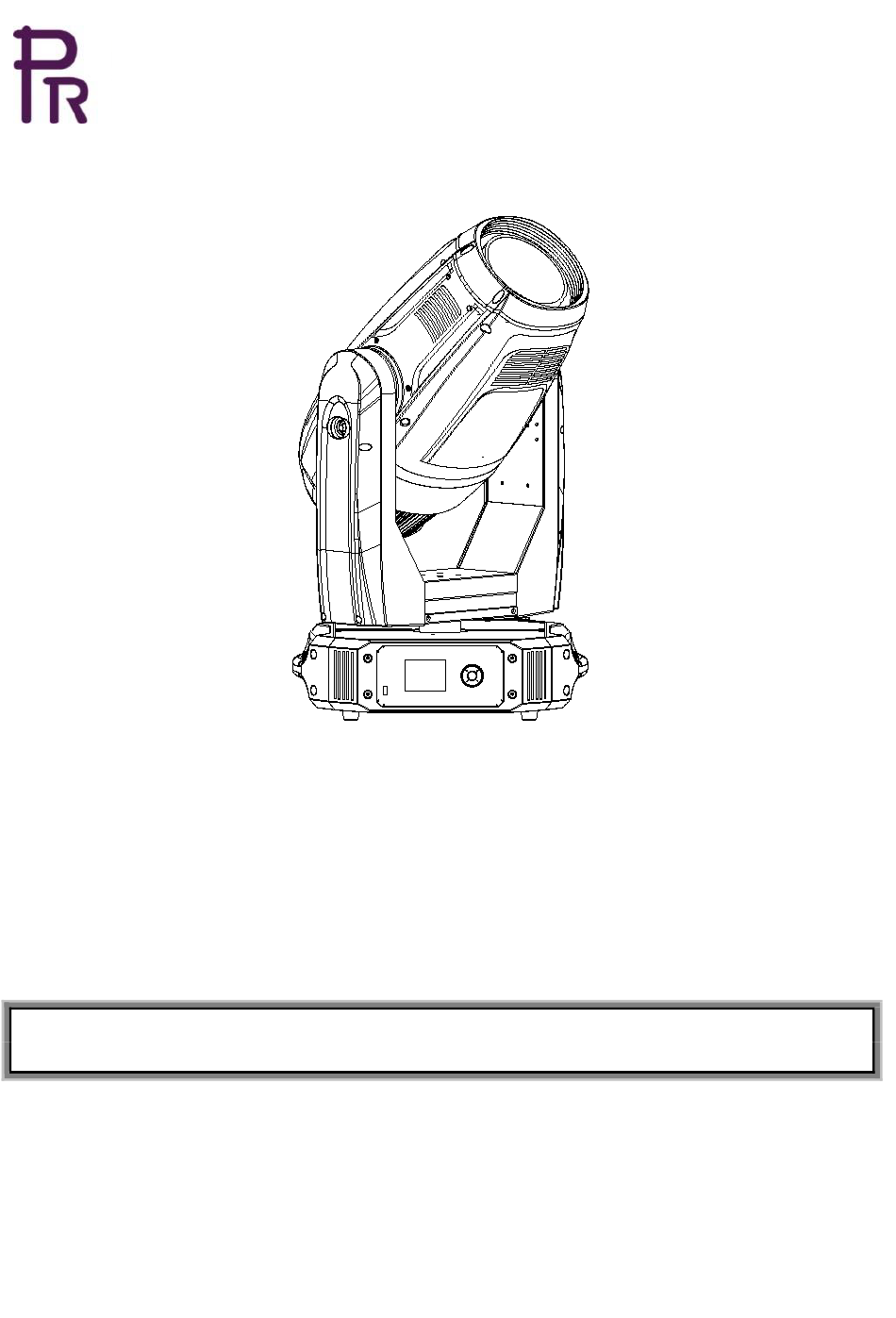

  • Page 1 PR-6000 SPOT (1400W) PR-2930 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
  • Page 2 Any future technical change in the user manual won’t be with any notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty...

  • Page 3: Safety And Warnings

    1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles Warning User Electrical Protective Flames High Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 Any electrical connection must be carried out by a qualified person . ● Before installation, please confirm the voltage supplied matches what is required for the projector ● Each projector must be properly earthed and installed as per related electrical standards. ●...

  • Page 5: Installation

    To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether ● it runs or not Do not use alcohol or other organic solvent to clean the housing to avoid damage. ● Do not use any solvent with chemical elements to clean color filters or hot mirror. ●...
  • Page 6 Note: 1. the distance between the foot of the base and the front lens cover(the head facing downward) distance between mounting truss and the front lens cover( the head facing downward) 3. The maximum diameter of the rotating head ( minimum spacing between fixtures) WARNING Clamp...
  • Page 7 N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. The earth wire(yellow/green) must be connected to the ground. And electrical connection ●...
  • Page 8 DMX TERMINATOR CONNECTION Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket on the last unit in the chain. PIN 2 PIN 3 ● ALIGNMENT/INSTALLATION/REPLACEMENT OFALAMP Before installation/replacement/alignment of a lamp, disconnect the unit from the power and let it cool first. Lock Tilt in the figure below and open the lamp cover after its 4 screws are loosened.

  • Page 9: Setup And Configuration

    Fixed Gobo wheel Rotate Gobo wheel 2 Rotate Gobo wheel 1 Colour wheel Lock the tilt and loosen the 4 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure above. Before replacing a gobo on the fixed gobo wheel, use your finger to remove the spring tightening it and take the old one out with due care. At last put the new into the wheel.
  • Page 10 ←,→,lamp control or English/Chinese menus. shortcut keys, which are DMX STARTADDRESS ● Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. The projector has 3 DMX modes.

  • Page 11: Operation Menu

    Master Slave Slave Terminator Controler 6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-485（Short Mode） 1-479（Standard Mode） DMX Address 1-474（Extended Mode） Default IPAddress 2.X.X.X /10.X.X.X IP Address Address Custom IPAddress X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 sACN Universe 1-63999...
  • Page 12 Invert OFF Display Invert Invert ON InvertAuto English Language Setting Chinese Input Password123 Touch Calibration Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Factory Defaults Restore Defaults? Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON Pan/Tilt Settings Pan Tilt Swap OFF/ ON XYFeedback...
  • Page 13 Electronic SN= Electronic SN ************ RDM Device Label RDM Device Label ANSI E1.20 RDM Version X.X Base Fan Ballast Fan Lamp T Fan1 CYM Fan1 Lamp T Fan2 CYM Fan2 Lamp R Fan1 Fan Status Strobe Fan Head Fan1 Head Fan2 Side Fan1 Side Fan2 Lamp R Fan2...

  • Page 14: Dmx Protocol

    Delay Unit Link To Step XXX Strobe XXX Edit Static Scene Dimmer XXX … Reset User Memory 1 Reset User Memory? Input Password123 Reset User Memory 2 Reset User Memory? Input Password123 Init User Memory Reset Static Scene Reset Static Scene? Input Password123 7.
  • Page 15 Color macro19 Color macro20 Color macro21 Color macro22 Color macro23 Color macro24 Color macro25 Color macro26 Color macro27 Color macro28 Color macro29 Color macro30 Color macro31 Color macro32 Color macro33 Color macro34 Color macro35 Color macro36 Color macro37 Color macro38 Color macro39 Color macro40 Color macro41...
  • Page 16 Color macro63 Color macro64 Color macro65 Color macro66 Color macro67 Color macro68 Color macro69 Color macro70 Color macro71 Color macro72 Color macro73 Color macro74 Color macro75 Color macro76 Color macro77 Color macro78 Color macro79 Color macro80 Color macro81 Color macro82 Color macro83 Color macro84 Color macro85...
  • Page 17 Magenta (Linear 0-100%) Magenta in 16bit Magenta 16 bit adjustment Linear CTO from high t low CTO in 16 bit CTO 16 bit adjustment Color wheel Continuous positioning Indexing 0-360° Positioning Open /Color1(Red) Color 1(Red) Color1(Red )/Color2(Yellow) Color2(Yellow) Color2(Yellow )/Color3(Blue) Color3(Blue) Color3(Blue)/Color4(Green) Color4(Green)
  • Page 18 Fixed gobo wheel Open Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Gobo7 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shakes from slow to fast Gobo2 shakes from slow to fast Gobo3 shakes from slow to fast Gobo4shakes from slow to fast Gobo5shakes from slow to fast Gobo6shakes from slow to fast...
  • Page 19 Open Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shakes from slow to fast Gobo2 shakes from slow to fast Gobo3 shakes from slow to fast Gobo4shakes from slow to fast Gobo5shakes from slow to fast Gobo6shakes from slow to fast Gobo rotation 2...
  • Page 20 Zoom Linear Zoom Zoom in 16 bit Zoom 16 bit adjustment Pan movement Pan in 16 bit Pan movement in 16 bit Tilt Tilt movement Tilt in 16 bit Tilt movement in 16 bit Pan & Tilt speed Time mode Speed mode (speed from fast to slow) Special function No function...

  • Page 21: Error Message

    Remark: 1. The projector can’t be turned on within 5 minutes after the lamp-off. 2. Fan error can cause lamp-off. 3. "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means both Pan and Tilt will arrive at designated point at the same time.

  • Page 22: Technical Data

    Check if fan and its wiring are normal Lamp T Point Fan2 Error Head Fan 1 Error Check if fan and its wiring are normal Check if fan and its wiring are normal Strobe Fan Error Check if fan and its wiring are normal CMY Fan Error Check if fan and its wiring are normal...
  • Page 23 Orange Yellow Pink Blue Green 0-100% linear CTO GOBO 2 Rotating Gobo Wheel: 6 replaceable gobos+ Open, Glass or Metal Gobo Bi-directional Rotation with variable speeds With Indexing Function Gobo Shake Effect with Variable Speeds Bi-directional Scrolling with Variable Speeds Rotating Gobo Wheel 1: 1#.120150426 2#.090072356...

  • Page 24: Effect Wheel

    Gobo outer size:36.3mm Gobo image size: 23mm PRISM 1pc of 3 facet prism , Bi-directional rotation with variable speeds and indexing function FROST 1pc frost filter, linear frost effect EFFECT WHEEL 1pc, replaceable, bi-directional rotation with variable speeds FOCUS DMX linear Focusing DIMMER 0-100% Linear adjustment , two options for dimmer curves: linear dimmer curve and square law curve.

  • Page 25: Operation Temperature

    STROBE Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT Pan 540º, Tilt 270º with auto position correction BEAMANGLE linear zoom 6°～ 55°with 16 bit function CONTROL DMX512, 5 pin interfaces RDM andArt-Net controls with options for RJ45 interfaces, wireless DMX control and sACN protocol 28channels in short mode, 34channels in standard mode and 39channels in extended mode Self-test mode NOISE...

  • Page 26: Light Output

    LIGHT OUTPUT: The light output diagram of 1400W lamp, ballast and igniter 11. CIRCUIT DIAGRAM...

  • Page 28: Component Order Codes

    12. COMPONENT ORDER CODES NAME CODE NUMBER REMARKS POWER SWITCH 230020689 POWER FILTER 230061131 THERMAL SWITCH 190010206 ELECTRONIC BALLAST （1400W） 040070144A LAMP （OSRAM 1400W） 100070047 Lok-it！1400W/PS OSRAM IGNITER (1400W) 040090066A LAMP FAN1 030060117 LAMP FAN 2 030060119 HEAD FAN 030060120 STROBE FAN 030060117 CMY FAN...
  • Page 29 Appendix:1. Fan positions Front：Head Fan1 Opposite: Head Fan 2 Side Fan 2 Side Fan1 Front: CMY Fan1 Front: Lamp R Fan 1 Opposite: CMY Fan 2 Front: Lamp T Fan 1 Opposite: Lamp R Fan Opposite: Lamp T Fan 2 Base Fan Ballast Fan...
  • Page 30 2.SOME ITEMS REQUIRING ATTENTION AS FOR THE USE OF DISCHARGE LAMP For the effective extension of the lifespan of discharge lamp, some factors impacting its lifespan are specially listed below, based on manufacturing technology and working mechanism of discharge lamps., physical attributions of the lamps including lamp striking theory( ignited by focused high voltage---highly pressurized air broken down and burning---lamp on at high temperature with thermal protection--- stable running) and lamp off theory( lamp off power ---lamp off at high temperature and thermal protection-highly pressurized air vaporizing evenly----completion of lamp...
  • Page 32 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N: 320021255...
