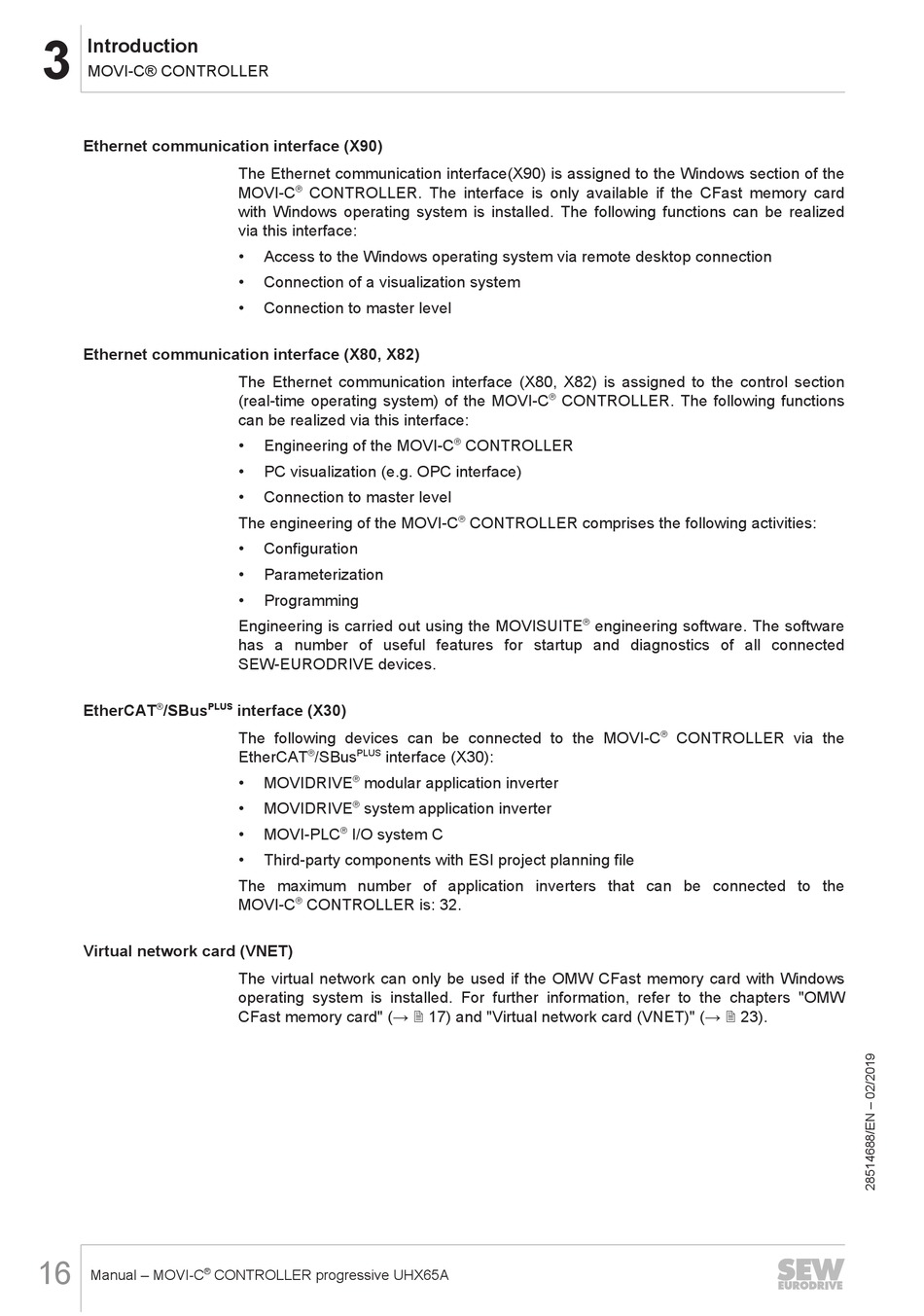

SEW-Eurodrive MOVI-C CONTROLLER UHX65A Manual page 16

Introduction
3
MOVI-C® CONTROLLER
Ethernet communication interface (X90)
Ethernet communication interface (X80, X82)
® PLUS
EtherCAT /SBus
Virtual network card (VNET)
16
®
Manual – MOVI‑C CONTROLLER progressive UHX65A
The Ethernet communication interface(X90) is assigned to the Windows section of the
®
MOVI‑C CONTROLLER. The interface is only available if the CFast memory card
with Windows operating system is installed. The following functions can be realized
via this interface:
• Access to the Windows operating system via remote desktop connection
• Connection of a visualization system
• Connection to master level
The Ethernet communication interface (X80, X82) is assigned to the control section
(real-time operating system) of the MOVI‑C
can be realized via this interface:
• Engineering of the MOVI‑C
• PC visualization (e.g. OPC interface)
• Connection to master level
The engineering of the MOVI‑C
• Configuration
• Parameterization
• Programming
Engineering is carried out using the MOVISUITE
has a number of useful features for startup and diagnostics of all connected
SEW‑EURODRIVE devices.
interface (X30)
The following devices can be connected to the MOVI‑C
® PLUS
EtherCAT /SBus interface (X30):
®
• MOVIDRIVE modular application inverter
®
• MOVIDRIVE system application inverter
®
• MOVI‑PLC I/O system C
• Third-party components with ESI project planning file
The maximum number of application inverters that can be connected to the
®
MOVI-C CONTROLLER is: 32.
The virtual network can only be used if the OMW CFast memory card with Windows
operating system is installed. For further information, refer to the chapters "OMW
CFast memory card" (→ 2 17) and "Virtual network card (VNET)" (→ 2 23).
®
CONTROLLER. The following functions
®
CONTROLLER
®
CONTROLLER comprises the following activities:
®
engineering software. The software
®
CONTROLLER via the
