Hearth & Home LOGS-I30 Placement Instructions

Log Set Assembly: LOGS-I30
Models: Supreme-I30, Supreme-I30-SP, Supreme-I30AU, Supreme-I30-C, Supreme-I30-NZ
LOG SUPPORTS
PILOT ASSEMBLY
GRATE TINES

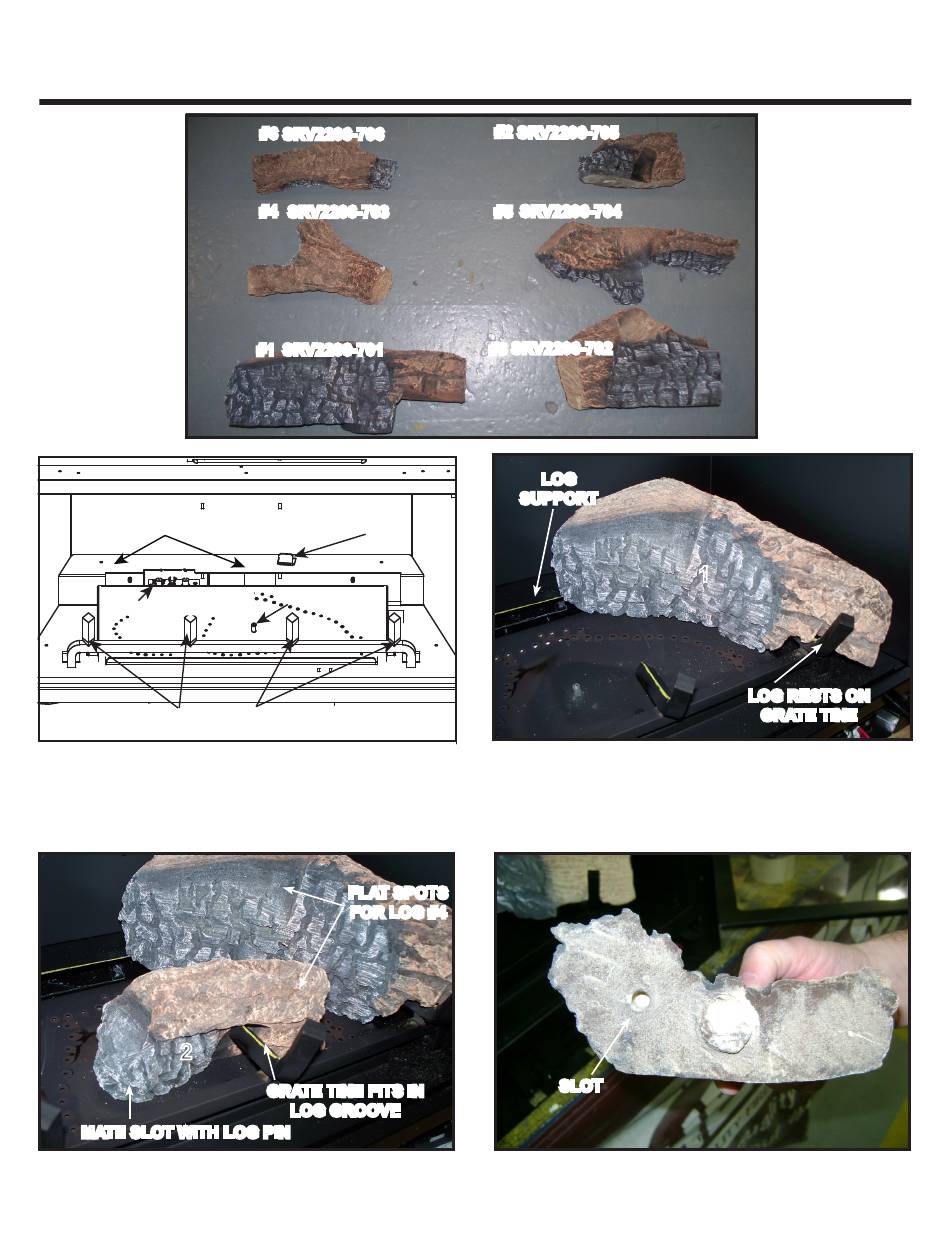

Figure 1.
CAUTION: Logs are fragile, handle with care. Log #1 (SRV2206-701): Bend the log tab into the upright position as shown in
Figure 1. Position Log #1 as shown in Figure 2. The left end of the log should rest on the log support. Mate the right end of the log
with the right grate tine. Rotate log clockwise, until the right end of the log engages the right grate tine, and the left end of the log
touches the log tab shown in Figure 1.
2
MATE SLOT WITH LOG PIN
Figure 3. Log #2
Log #2 (SRV2206-705): Position Log #2 as shown in Figure 3. Mate the slot located on the bottom of Log #2 (Figure 4) with the
log pin located on the surface of the burner. Rotate the right end of Log #2 clockwise, until it comes into contact with the grate tine.
#6
SRV2206-706
#4
SRV2206-703
SRV2206-701
#1
LOG TAB
LOG PIN
FLAT SPOTS
FOR LOG #4
GRATE TINE FITS IN
LOG GROOVE
Heat & Glo • LOGS-I30 Log Instructions • 2206-935 Rev. D • 12/16

LOG PLACEMENT INSTRUCTIONS

#2 SRV2206-705
SRV2206-704
#5
SRV2206-702
#3
LOG
SUPPORT
Figure 2. Install Log #1
SLOT
Figure 4. Place Log #2
1
LOG RESTS ON
GRATE TINE
2
1
