Hearth & Home LOGS-NDI30 Log Placement Instructions

Log Set Assembly: LOGS-NDI30
Models: NDI30, NDI30-SP, NDI30-C, HNGINS-30-SP
CAUTION: Logs are fragile, handle with care.
PILOT ASSEMBLY
LOG SHELF
GRATE BAR
Figure 1.

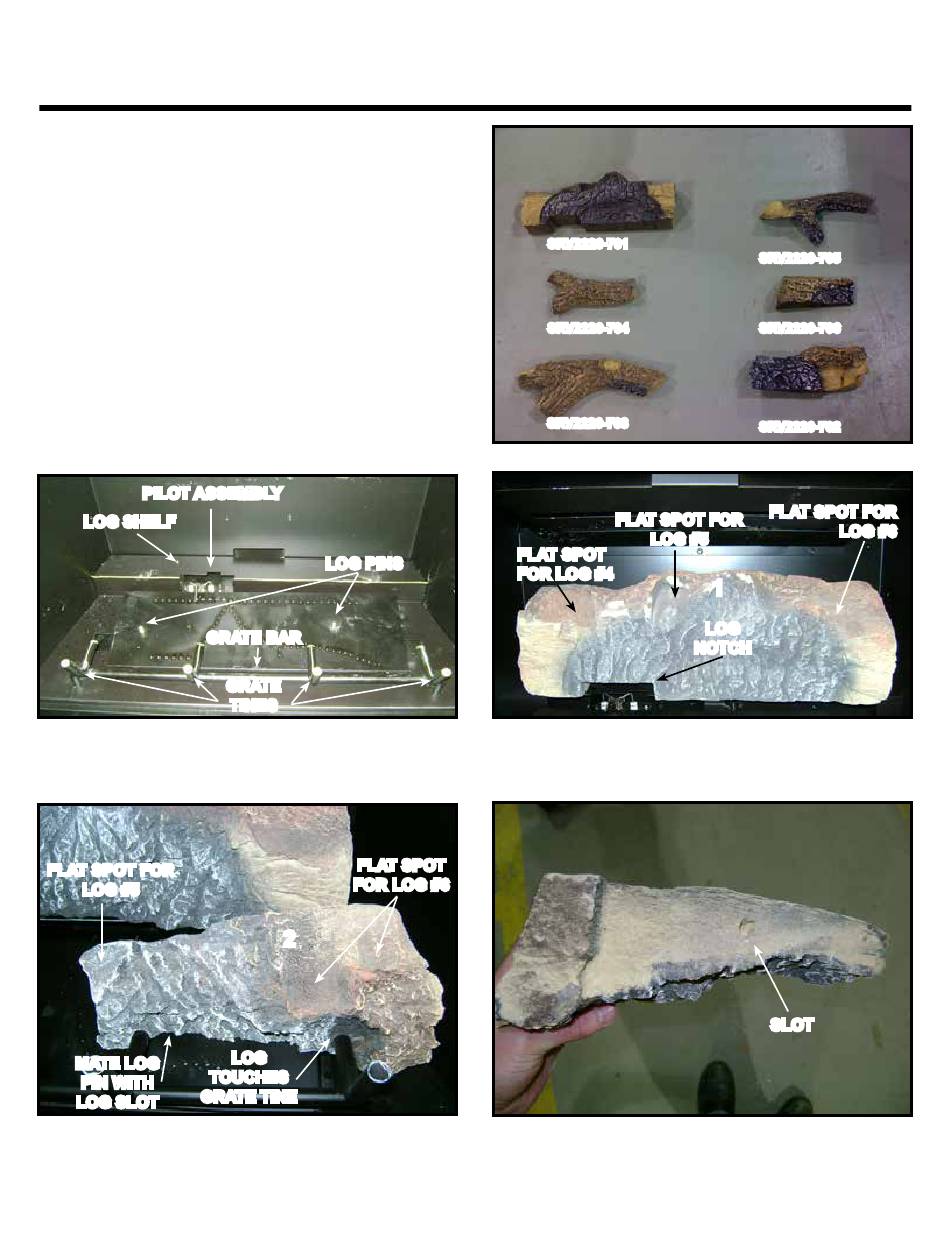

Log #1 (SRV2226-701) Position Log #1 as shown in Figure 2. Note additional placement instructions in Figure 1. Set the
rear log (Log #1) on the log shelf. Position the log against the back of the firebox. Center the log notch over the pilot assembly.
FLAT SPOT FOR
LOG #5
MATE LOG
TOUCHES
PIN WITH
GRATE TINE
LOG SLOT
Figure 3. Place Log #2
Log #2 (SRV2226-702): Position Log #2 as shown in Figure 3. Refer to Figure 1 and Figure 4 for additional details. Mate
the slot located on the bottom of Log #2 with the log pin located on the right side of the burner. Move the right end of Log
#2 forward until it comes into contact with the grate tine.
Hearth & Home Technologies • LOGS-NDI30 Log Instructions • 2226-935 Rev. C • 2/18
LOG PINS
GRATE
TINES
FLAT SPOT
FOR LOG #6
2
LOG
LOG PLACEMENT INSTRUCTIONS
SRV2226-701
SRV2226-704
SRV2226-703
FLAT SPOT FOR
LOG #5
FLAT SPOT
FOR LOG #4
Figure 2. Install Log #1
Figure 4. Log #2
SRV2226-705
SRV2226-706
SRV2226-702
FLAT SPOT FOR
LOG #6
1
LOG
NOTCH
SLOT
1
