Hearth & Home LOGS-AZTEC Log Placement Instructions

For hearth & home aztec

Log Assembly: LOGS-AZTEC

Model: AZTEC

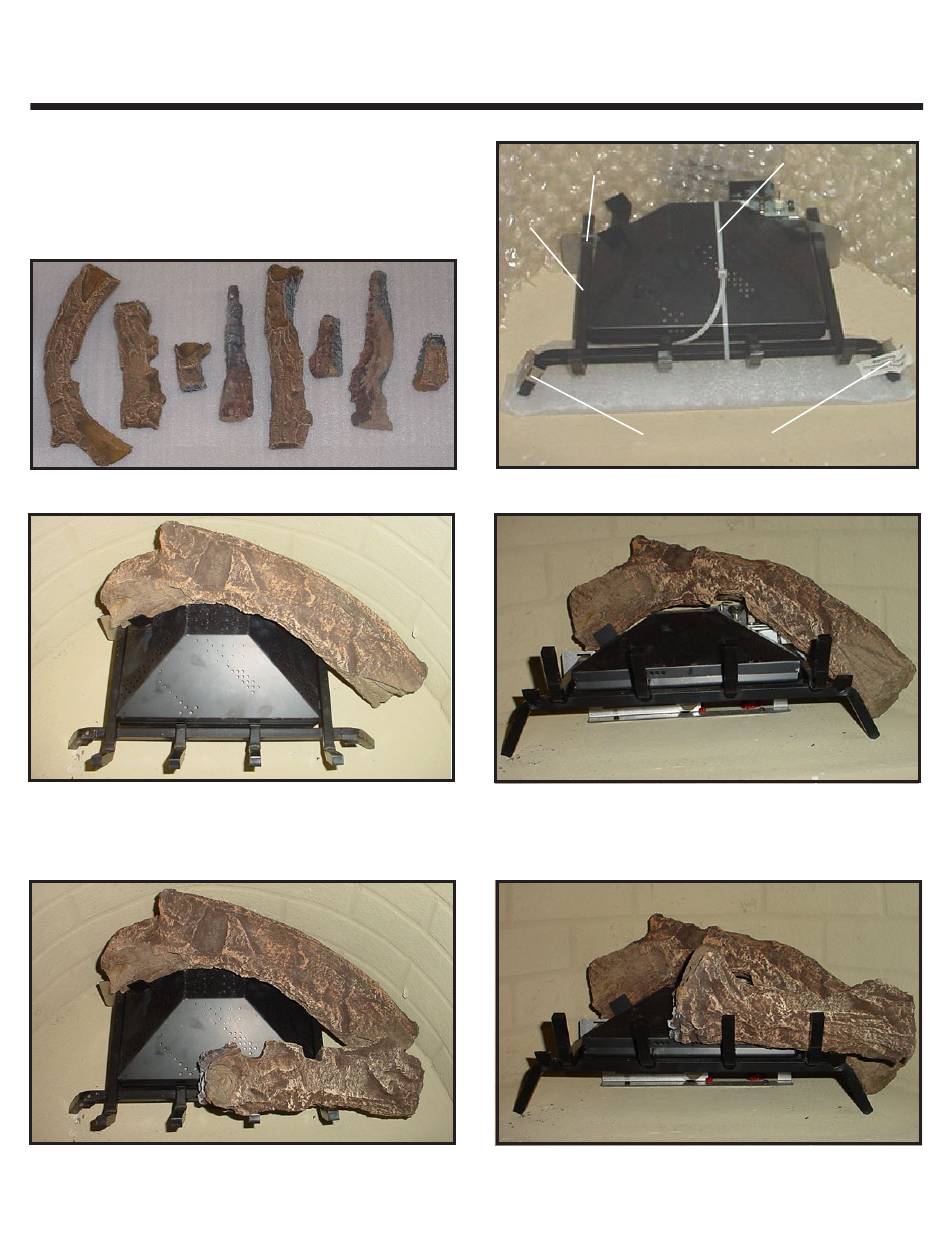

Carefully remove the logs from the packaging. CAUTION:

Logs are fragile! Before placing logs, remove shipping bracket

and tie straps from the burner and grate. Place the lava rock

on the bottom of the firebox. Evenly spread out the lava

rocks with your hand.

2 3 4 5 6 7

LOG #1 (SRV703-701):

pushed forward until the groove in the log makes contact with the front log tab. The right side of the log should

contact the firebox.

location feature to help locate the log. Slide the log to the right until the location feature contacts the fourth grate tine.

Place log #1 between log tabs on the left side on the burner. The log should be

Place log #2 flush with grate tines 3 and 4. On the front of log #2 there is a

TAB

GRATE

LOG PLACEMENT

INSTRUCTIONS

TIE STRAPS

BURNER

Shipping Bracket

703-925B 8/05

Table of Contents

Do you have a question about the LOGS-AZTEC and is the answer not in the manual?

Page 1 LOG PLACEMENT Log Assembly: LOGS-AZTEC INSTRUCTIONS Model: AZTEC Carefully remove the logs from the packaging. CAUTION: Logs are fragile! Before placing logs, remove shipping bracket TIE STRAPS and tie straps from the burner and grate. Place the lava rock on the bottom of the firebox. Evenly spread out the lava rocks with your hand.
Page 2 GROOVES FOR LOG #4 LOG #3 (SRV703-703): Place log #3 flush with grate tines 1 and 2. The right end of the log should make contact with grate tine 2. FLAT SPOT FOR LOG #5 LOG #4 (SRV750-705): Place the top of log #4 in the groove in log #1. Place the base of the log into the groove on log #3 such that the end of the log contacts grate tine 2.
Page 3 GROOVES FOR LOG #7 LOG #6 (SRV750-706): Place log #6 in the groove in log #3. Log #6 must be placed parallel to the burner ports behind the log. CAUTION: If log #6 is not parallel to burner ports then sooting may occur. Do not place logs directly on burner ports.
