IntelliFire Touch
MODELS: SUPREME-I25-IFT, SUPREME-I30-IFT, SUPREME-I30-BIR, SUPRM-I30LP-IFT SUPREME-I35-IFT
COSMO-I30-IFT, COSMO-I35-IFT, RUBY25I, RUBY30I, RUBY35I, EXCURSION-I, EXCURSION-II,
EXCURSION-III, TRILLIANT25IN, TRILLIANT30IN, TRILLIANT35IN
Conversion Instructions
This conversion shall be installed by a qualified service
agency.
Any damaged valve components should not be installed.
If a valve or regulator has been dropped or appears to
have been modified, the valve or regulator should not be
installed.
Conversion Component list:
• Burner Orifice:
See Appliance Specification charts on last page for
appropriate orifice size for each gas type.
• Pilot Orifice
• Gas Valve Regulator
• Pilot Gasket
• Gas Conversion Plate
• NG or P Label
CAUTION: THE GAS SUPPLY SHALL BE SHUT OFF
PRIOR TO DISCONNECTING THE ELECTRICAL POWER
BEFORE PROCEEDING WITH THE CONVERSION.
WARNING:
This Conversion kit shall be installed by a qualified
service agency in accordance with the manufacturer's
instructions and all applicable code and requirements
of the authority having jurisdiction. If the information
in these instructions is not followed exactly, a fire,
explosion or production of carbon monoxide may
result causing property damage, personal injury or
loss of life. The qualified service agency is responsible
for the proper installation of this kit. The installation
is not proper and complete until the operation of the
converted appliance is checked as specified in the
manufacturer's instructions supplied with the kit.
Hearth & Home Technologies • SUPREME-IFT, COSMO-IFT, RUBYI, EXCURSION, TRILLIANT IFT Gas Conversion • 2532-920 Rev. H • 4/23
Gas Conversion Instructions
®
NGK-MI-IFT, LPK-MI-IFT
GLASS SEAL
PLATE REMOVED

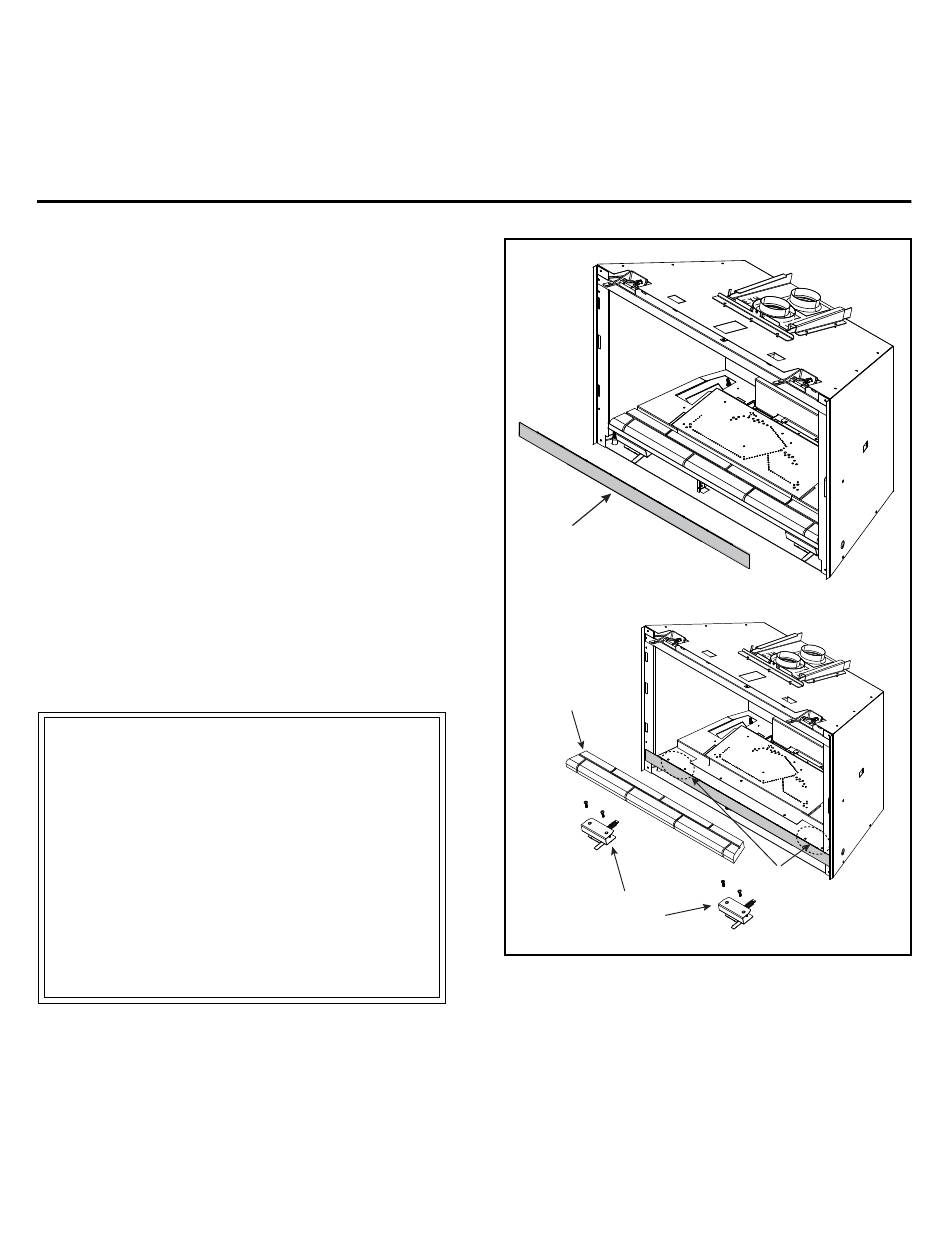

Figure 1 Glass Seal Plate installed with Glass Clip Assemblies
BASE REFRACTORY
GLASS CLIP
ASSEMBLIES
Removed.
GLASS
CLIP ASSEMBY
SCREW ACCESS
1
