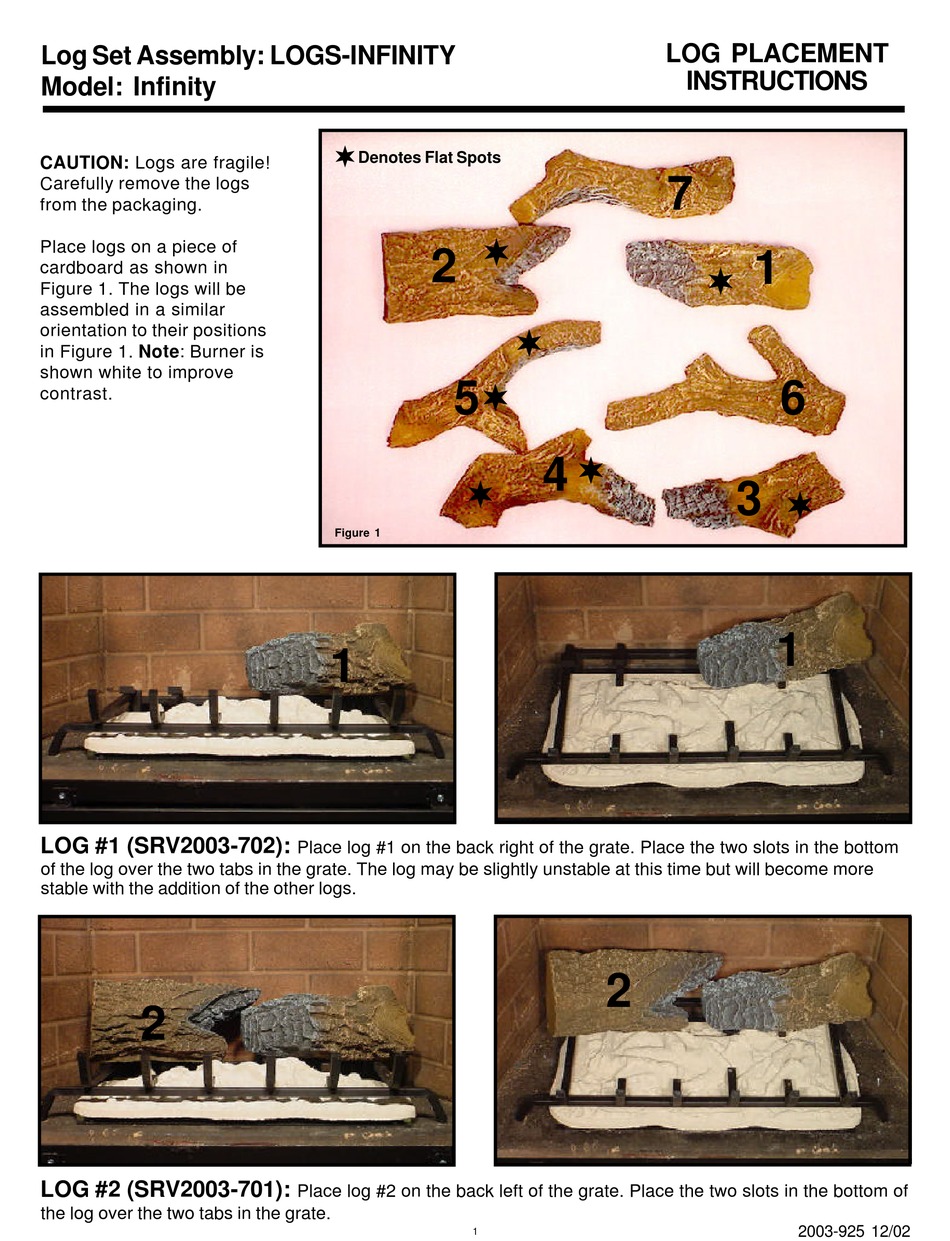

Log Set Assembly: LOGS-INFINITY
Model: Infinity
CAUTION: Logs are fragile!
Carefully remove the logs
from the packaging.
Place logs on a piece of
cardboard as shown in
Figure 1. The logs will be
assembled in a similar
orientation to their positions
in Figure 1. Note: Burner is
shown white to improve
contrast.
LOG #1 (SRV2003-702):
of the log over the two tabs in the grate. The log may be slightly unstable at this time but will become more
stable with the addition of the other logs.
2
LOG #2 (SRV2003-701):
the log over the two tabs in the grate.
¬
Denotes Flat Spots
2
5
¬
Figure 1
1
Place log #1 on the back right of the grate. Place the two slots in the bottom
Place log #2 on the back left of the grate. Place the two slots in the bottom of
1
¬
¬
¬
¬
4
2
LOG PLACEMENT
INSTRUCTIONS
7
1
¬
6
3
¬
1
2003-925 12/02
Advertisement
Table of Contents
Related Manuals for Hearth & Home LOGS-INFINITY
Summary of Contents for Hearth & Home LOGS-INFINITY
- Page 1 LOG PLACEMENT Log Set Assembly: LOGS-INFINITY INSTRUCTIONS Model: Infinity ¬ Denotes Flat Spots CAUTION: Logs are fragile! Carefully remove the logs from the packaging. ¬ Place logs on a piece of cardboard as shown in ¬ Figure 1. The logs will be assembled in a similar ¬...
- Page 2 LOG #3 (SRV2003-704): Place log #3 on the front right of the grate. The two grooves on the bottom of the log and the narrow end of the log line up with the 1 , and 3 grate tines on the right of the grate. LOG #4 (SRV2003-703): Place log #4 on the front left of the grate.
- Page 3 LOG #6 (SRV2003-706): Place log #6 on top of log #5, #1, and #3. The left end sits on the flat spot of log #5 and the right end sits on log #3. The “branch” rests on the flat spot of log #1. LOG #7 (SRV780-707): Place log #7 on top of log #1 and #5.
