Hearth & Home LOGS-550TRS-E Placement Instructions

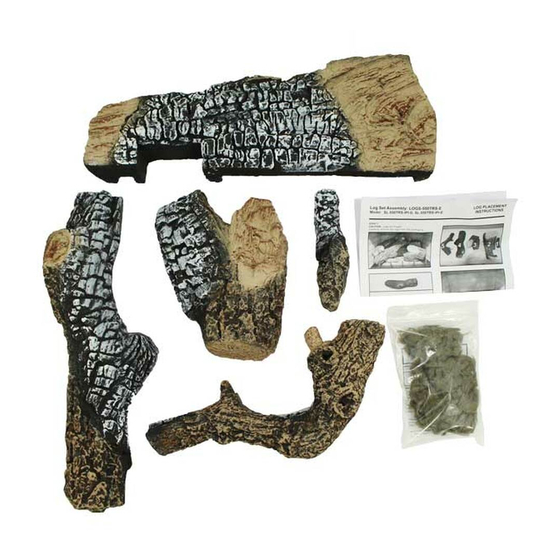

Log Set Assembly: LOGS-550TRS-E
Model: SL-550TRS-IPI-D, SL-550TRS-IPI-E
STEP 1.
CAUTION: Logs are fragile!
Carefully remove the logs from the packaging.
STEP 2.
LOG #1 (SRV2117-701) Place log #1 on left fl at side of
the burner assembly. Pull the log and slide it to the right
until the notches under the log are in the burner grooves.
FLAT AREA FOR LOG #4 FLAT AREA FOR LOG #4
STEP 3.
LOG #2 (SRV2117-702) Place log #2 on the grate bar
and push it back against the refractory. The pilot should
be centered within the large notch on log #2.
LOG NOTCHES LOG NOTCHES
Heat & Glo • LOGS-550TRS-E • 2117-945 • 3/11
4 4
5 5
1 1
Figure 1.
1 1
Figure 2.
LOG PLACEMENT
INSTRUCTIONS
2 2
3 3
2 2
1 1
