Log Set Assembly: LOGS-550-E, 750-E, 950-E
Model: SL-550TR-E, 750TR-E, 950TR-E
SL-550TV-E, 750TV-E, 950TV-E,
SL-550TV-IPI-F, 750TV-IPI-F, 950TV-IPI-F

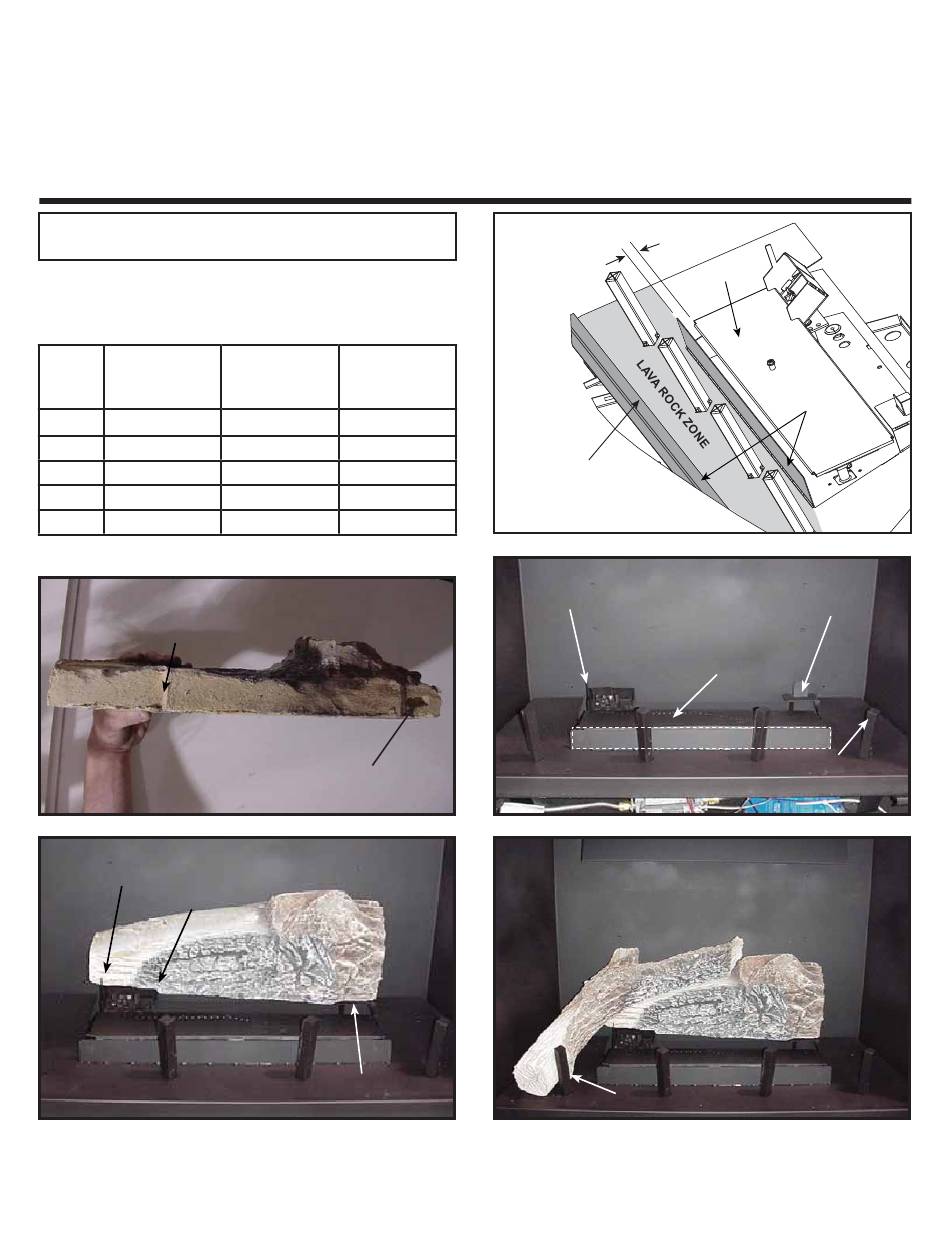

Note: Figure 1 illustrates the recommended gap between the
burner and the lava rock retainer.
Carefully remove the logs from the packaging.
CAUTION: LOGS ARE FRAGILE! Handle with care.
SL-550TR-E
SL-550TV-E
SL-550TV-F
Log 1
SRV2115-701
Log 2
SRV2115-702
Log 3
SRV2115-703
Log 4
SRV2115-704
Log 5
SRV2115-705
Indentation
Indentation
Figure 2
Figure 2
Left rear log tab
Left rear log tab
Indentation
Indentation
Figure 4
Figure 4
Log #1: Locate the slot on the bottom right side of log 1.
Mate the slot with the right rear log tab. Pull the left end of
log #1 forward until it touches the left rear log tab.
Heat & Glo • LOGS-550-E, LOGS-750-E, LOGS-950-E Log Instructions • 2118-935 Rev. F • 10/14
SL-750TR-E
SL-950TR-E
SL-750TV-E
SL-950TV-E
SL-750TV-F
SL-950TV-F
SRV2118-701 SRV2121-701
SRV2118-702 SRV2121-702
SRV2118-703
SRV2118-703
SRV2118-704 SRV2121-704
SRV2118-705 SRV2121-705
1 1
Slot
Slot
1
1
Mate slot with tab
Mate slot with tab
3/8 in.
PLACE LAVA ROCK
BETWEEN LAVA ROCK
RETAINERS
Figure 1
Left rear log tab
Left rear log tab
Shoulder screw
Shoulder screw
Lava rock retainer
Lava rock retainer
Figure 3
Figure 3
Log # 2 should touch fi rebox
Log # 2 should touch fi rebox
2 2
Mate notch with grate tine
Mate notch with grate tine
Figure 5
Figure 5
Log #2: Mate the far left grate tine with the notch located
on the left end of log #2. The right end of log #2 should rest
on log #1 as shown. Be sure that the top of log # 2 touches
the back of the fi rebox.
LOG PLACEMENT
INSTRUCTIONS
Burner
Lava rock
retainers
Right rear log tab
Right rear log tab
Grate tine (4)
Grate tine (4)
1
