Hearth & Home LOGS-2129 Log Placement Instructions

Log Set Assembly: LOGS-2129
Models: GDST4336I, GDFL4136I, GDCL4136I, GDCR4136I,
GBST4336I, GBFL4136I, GDST4336IFT, GDFL4136IFT,
LCOR-DV36IN, RCOR-DV36IN
CAUTION: DO NOT reposition logs that have been
factory installed! Follow these instructions to position
the logs that were packaged separately.

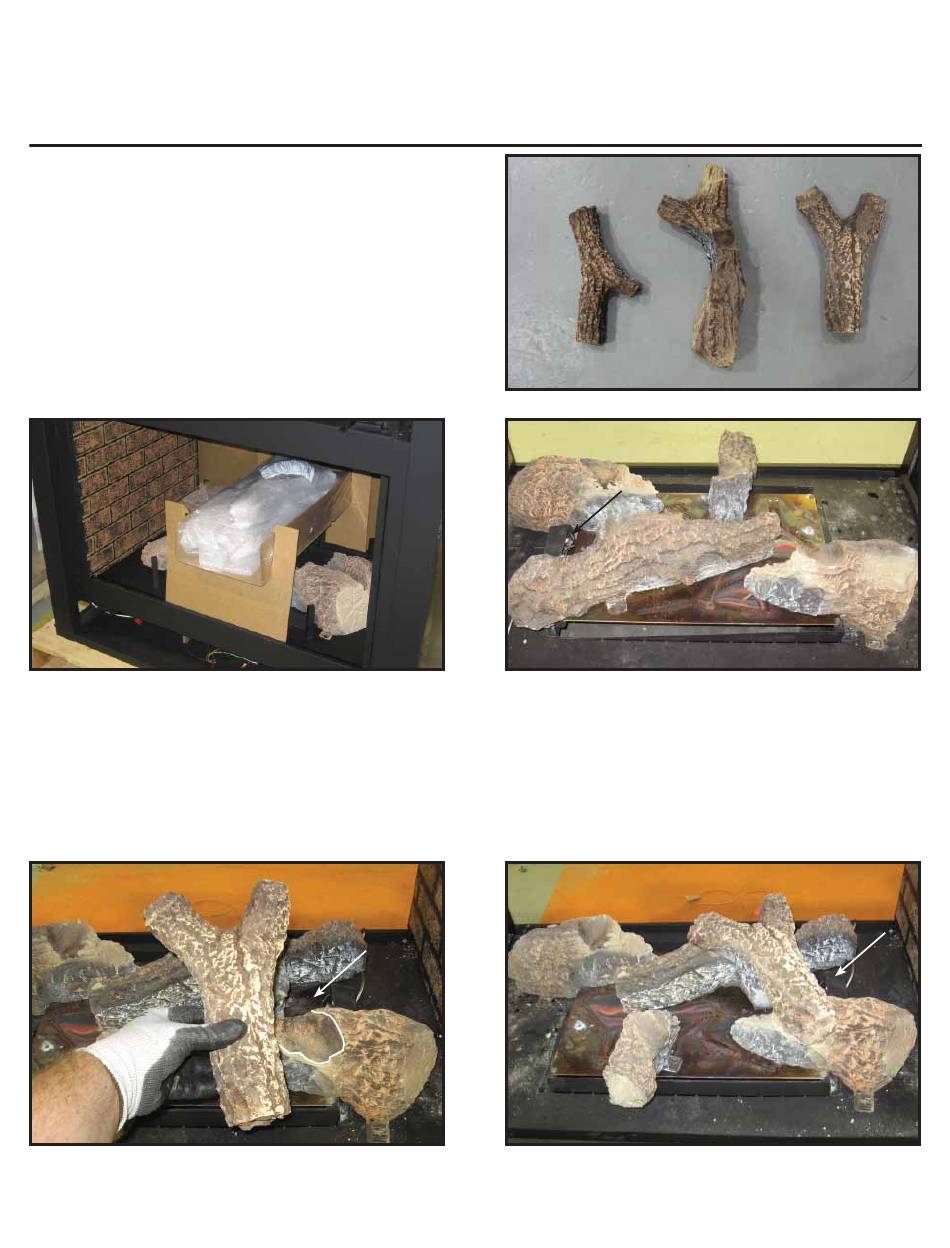

Figure 1. Log Assembly Location

CAUTION!
Logs are fragile! Carefully remove the logs and cardboard tray from the inside of the fi replace. See Figure
Remove the microfoam and inspect the logs for damage. Inspect the four factory installed logs for damage. Locate the
pilot in order to verify your position in relation to the appliance. See Figure 2.
Models: GDST4336I, GDFL4136I, GDCL4136I, GBST4336I, GBFL4136I
GDST4336IFT, GDFL4136IFT, LCOR-DV36IN
(For Models GDCR4136I and RCOR-DV36IN, see next page .)

Figure 3. Placement of Log #1

STEP 1. Log #1 (SRV2129-704):

Log A highlighted in Figure 3. The Y-shaped end of Log #1 will rest on the smooth area of Log B as shown in Figure 4.
PILOT PILOT
1 1
A A
Place Log #1 on Log A. The end and bottom of Log #1 fi t into the indentation on
Hearth & Home Technologies • Log Placement Instructions • 2129-935 Rev. C • 2/17
3 3

Log Set Components

PILOT PILOT
A A
B B

Figure 2. Factory Installed Logs and Pilot Position

B B
C C

Figure 4. Placement of Log #1

LOG PLACEMENT
INSTRUCTIONS
2 2
1 1
D D
C C
PILOT PILOT
1 1
HUMP HUMP
1 1
A A
1
