Hearth & Home LOGS-OLY Placement Instructions

Log Assembly: LOGS-OLY
Model: Olympus
1
2
3
4
CAUTION: Logs are fragile! Carefully remove the logs from
the packaging.
2
LOG #2 (SRV780-702):
shown. The cutouts on the bottom of the log should line up
with the two left grate tines. Push the log all the way to the
back of the unit.
2
3
LOG #4 (SRV780-704):
shown. The cutouts on the bottom of the log should line up
with the grate tines. Pull the log all the way forward on the
grate.
5
6
7
8
9
1
Place log #2 on the grate as
1
4
Place log #4 on the grate as
LOG #1 (SRV780-701):
shown. The cutouts on the bottom of the log should line up
with the two right grate tines. Push the log all the way to the
back of the unit. NOTE: Logs #1 & #2 look similar but can be
easily identified by the direction of the cutouts along the
bottom of both logs.
2
3
LOG #3 (SRV780-703):
shown. The cutouts on the bottom of the log should line up
with the grate tines. Pull the log all the way forward on the
grate.
2
3
LOG #5 (SRV780-705):
logs #3 and #4 and in front of the burner tubes 1/4 inch forward
from tubes. The cutouts on the bottom of the log should line
up with the center grate tines.
1

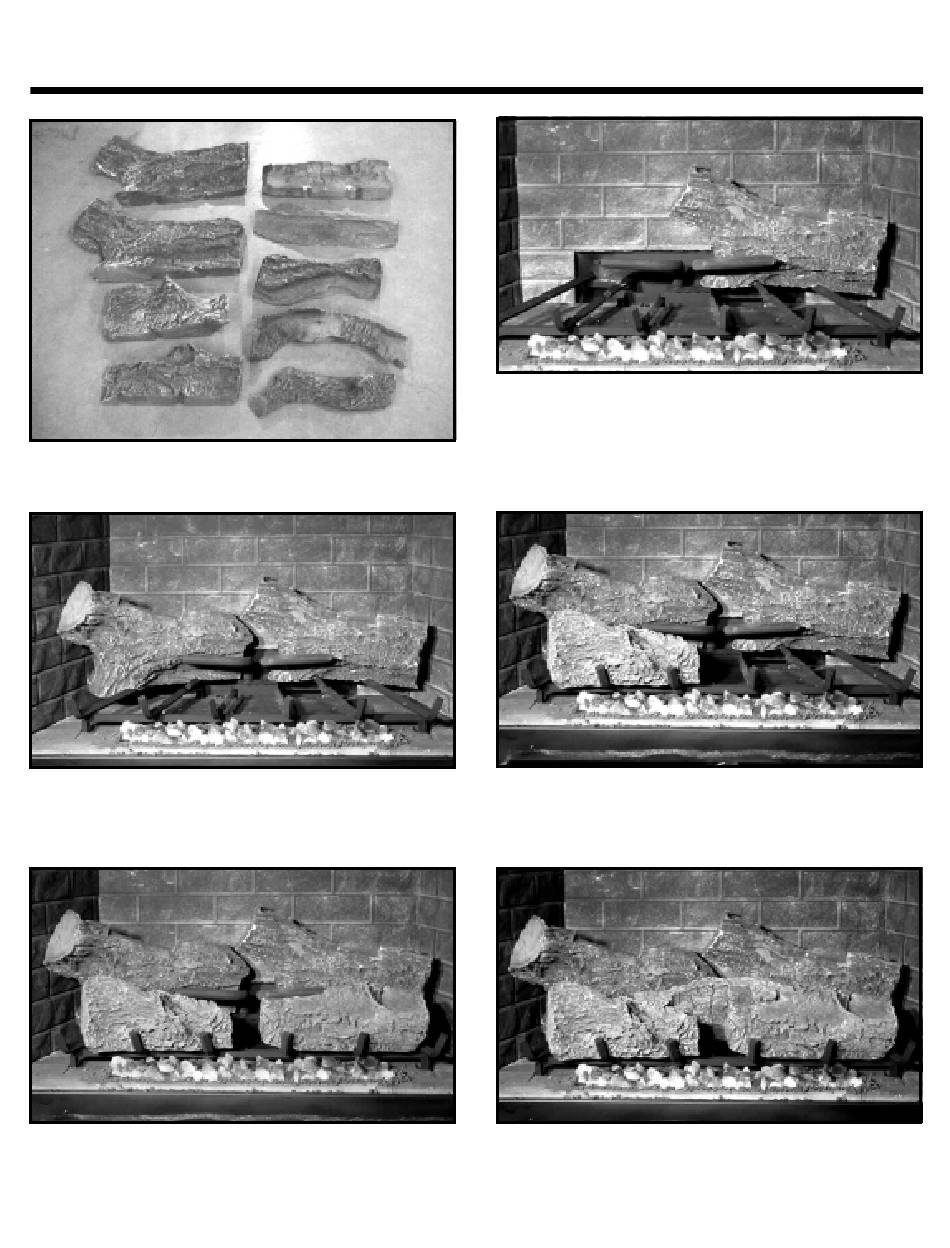

LOG PLACEMENT
INSTRUCTIONS
1
Place log #1 on the grate as
1
Place log #3 on the grate as
1
5
4
Place log #5 on the grate behind
