Log Set Assembly: LOGS-CFXGB
For Models: CFX-Grand-B, FB-Grand
CAUTION: Logs are fragile! Carefully remove the logs from the packaging.

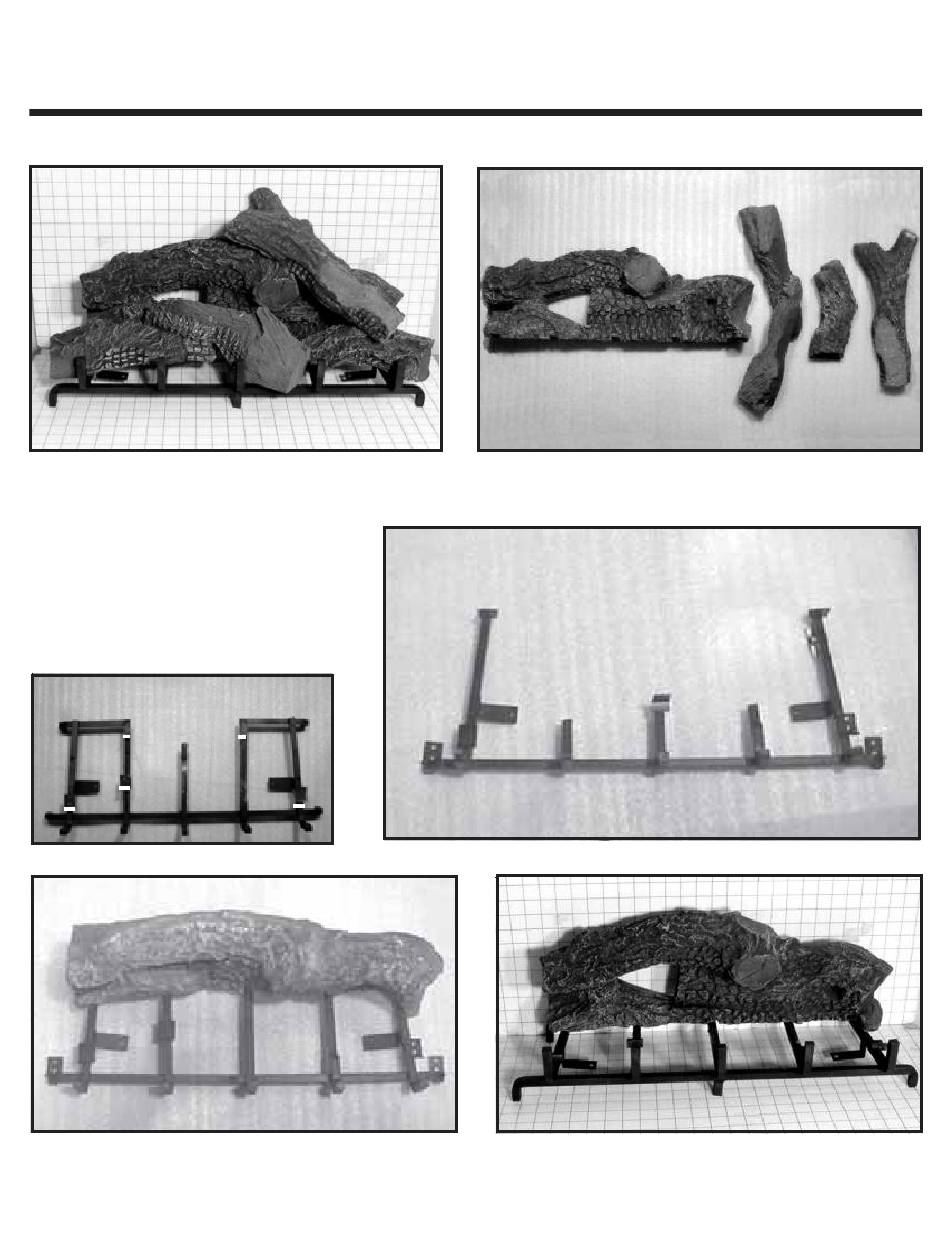

Log Set
This model uses locating tabs to posi-
tively locate the logs with respect to the
grate assembly. Fireplace may have
Method A or B for a grate assembly as
shown. Determine which grate from pic-
tures below when installing log #2.
Please refer to grate assemblies A & B.
METHOD A
5 Locating Tabs
B
C
A
LOG NUMBER 1 (SRV768-701):
locating tabs B and D. Slide the log all the way to the left until the notches on the bottom of the log contact the
grate bars.
D
E
Place log #1 onto the grate. Push log back until it rests against
Logs
B
A
Grate Assembly
1
LOG PLACEMENT
INSTRUCTIONS
1
2 3 4
C
D
E
1
768-925E 1/06
Advertisement
Table of Contents
Related Manuals for Hearth & Home LOGS-CFXGB
Summary of Contents for Hearth & Home LOGS-CFXGB
- Page 1 LOG PLACEMENT Log Set Assembly: LOGS-CFXGB INSTRUCTIONS For Models: CFX-Grand-B, FB-Grand CAUTION: Logs are fragile! Carefully remove the logs from the packaging. 2 3 4 Logs Log Set This model uses locating tabs to posi- METHOD B tively locate the logs with respect to the grate assembly.
- Page 2 LOG NUMBER 2 (SRV768-704): .75 in. Method A (see page 1): Position log #2 onto grate such that tabs A and C fit into the slots on bottom surface of log. Slide the log all the way to the left. Then push the right front corner of the log forward until there is 0.75 in.
- Page 3 LOG NUMBER 4 (SRV582-705): Place log #4 across both flat spots on log #1 and log #3, with the “Y” in log #4 placed on log #1. The back of log #4 should make contact with the back of the firebox.
