Hearth & Home LOGS-NDI35 Log Placement Instructions

Log Set Assembly: LOGS-NDI35
Models: NDI35, NDI35-SP, NDI35-C, HNGINS-35-SP
SRV2224-701
SRV2224-703
SRV2224-706
LOG SUPPORT
Figure 2.
CAUTION: Logs are fragile, handle with care. Log #1 (SRV2224-701) Position Log #1 as shown in Figure 3. Note additional
references in Figure 2. Set the log on the log support. Ensure the log is pushed back so that the log touches the back of the
firebox. The log should be centered with the burner.
LOG CONTACTS
LEFT GRATE TINE
2
Figure 4. Log #2
Log #2 (SRV2224-706): Position Log #2 as shown in Figure 4. Refer to Figure 2 and Figure 5 for additional details. Mate
the slot located on the bottom of Log #2 with the left log pin located on the burner top. Rotate the left end of Log #2 forward
until it comes into contact with the left grate tine.
Hearth & Home Technologies • LOGS-NDI35 Log Instructions • 2224-935 Rev. C • 2/18
SRV2224-704
SRV2224-702
SRV2224-705
LOG PINS
BASE TINE
GRATE TINES
LOG PIN
MATES WITH
LOG SLOT

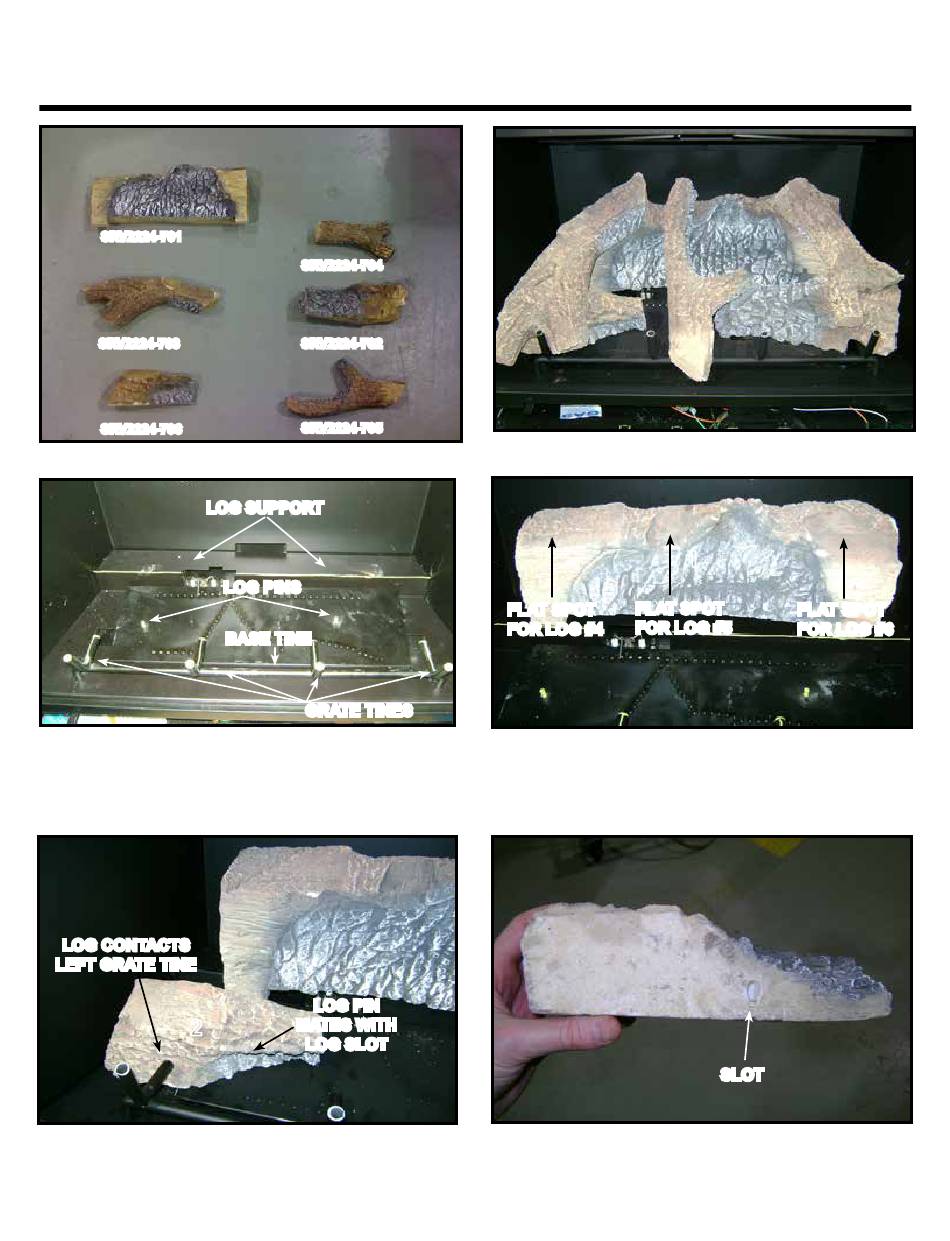

LOG PLACEMENT INSTRUCTIONS
Figure 1. Log Set Installed
FLAT SPOT
FLAT SPOT
FOR LOG #5
FOR LOG #4
Figure 3. Install Log #1
Figure 5. Log #2
1
FLAT SPOT
FOR LOG #6
SLOT
1
