INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!

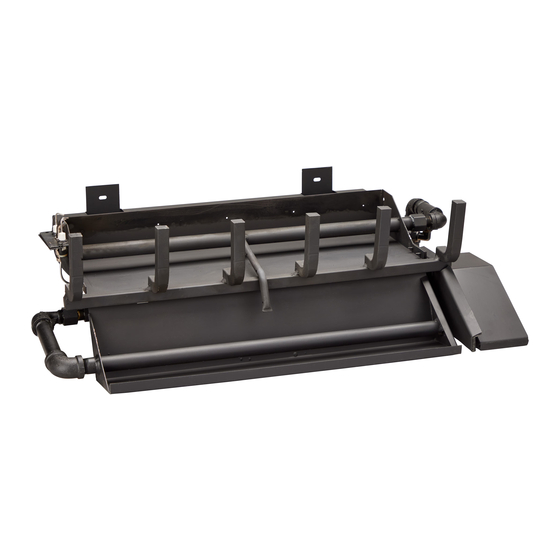

Stadium Series
Vented Gas Log Set
Model(s):
2TR-IPI-R18-N; 2TR-IPI-R18-P
2TR-IPI-R24-N; 2TR-IPI-R24-P
2TR-IPI-R30-N; 2TR-IPI-R30-P
3TR-IPI-R18-N; 3TR-IPI-R18-P
3TR-IPI-R24-N; 3TR-IPI-R24-P
3TR-IPI-R30-N; 3TR-IPI-R30-P
Installation Manual
Installation and Appliance Setup
2 Tier Burner
3 Tier Burner
Hearth & Home Technologies • Stadium Installation Manual • 4004-900 Rev. B • 03/25
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
In the Commonwealth of Massachusetts
installation must be performed by a licensed
plumber or gas fitter.
See appliance installation manual for
additional Commonwealth of Massachusetts
requirements.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hearth & Home Stadium Series
Summary of Contents for Hearth & Home Stadium Series
- Page 1 • DO NOT store or use gasoline or other flam- mable vapors and liquids in the vicinity of this Stadium Series or any other appliance. Vented Gas Log Set • What to do if you smell gas - DO NOT try to light any appliance.
-
Page 2: Table Of Contents
Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. •... -
Page 3: Installation Standard Work Checklist
Installation Standard Work Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: Date Installed: Lot/Address: Location of Fireplace: Installer: Model (circle one): Dealer/Distributor Phone #:... -
Page 4: Welcome
Welcome A. Congratulations This owner’s manual should be retained for future reference. We suggest that you keep it with your other important documents and product manuals. Congratulations and thank you for selecting a Hearth & Home Technologies vented gas log set, an elegant and The information contained in this owner’s manual, unless clean alternative to wood burning fireplaces. -
Page 5: Limited Lifetime Warranty
B. Limited Lifetime Warranty Hearth & Home Technologies LLC LIMITED WARRANTY Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor. - Page 6 B. Limited Lifetime Warranty (Continued) WARRANTY CONDITIONS: • Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers is available on the HHT branded websites.
-
Page 7: Product Specific And Important Safety Information
Product Specific and Important Safety Information A. Appliance Certification NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE. This appliance is tested and approved as MODEL(S): 2TR-IPI-R18-N; 2TR-IPI-R18-P either supplemental room heater or as a decorative ap- 2TR-IPI-R24-N; 2TR-IPI-R24-P pliance. It should not be factored as primary heat in 2TR-IPI-R30-N;... -
Page 8: Requirements For The Commonwealth Of Massachusetts
H. Requirements for the Commonwealth of Exemptions Massachusetts The following equipment is exempt from 248 CMR 5.08(2) (a)1 through 4: For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in • The equipment listed in Chapter 10 entitled “Equipment whole or in part for residential purposes, including those Not Required To Be Vented”... -
Page 9: Important Safety And Operating Information
Important Safety and Operating Information A. Appliance Safety Clear Space WARNING! DO NOT operate appliance before WARNING! DO NOT place combustible objects in front of the appliance. High temperatures may start a fire. reading and understanding operating instructions. Failure to operate appliance according to operating in- See Figure 3.1. -
Page 10: Getting Started
Getting Started A. Design and Installation Considerations C. Inspect Appliance and Components Installation MUST comply with local, regional, state and • Carefully remove the applaince and components from national codes and regulations. Consult insurance carrier, the packaging. local building inspector, fire officials or authorities having •... -
Page 11: Minimum Hearth Dimensions
E. Minimum Hearth Dimensions WARNING Do not install the applaince: • Where curtains, furniture, clothing, or other flammable objects are less than 36" from the front of the heater. • In high traffic areas. • In windy or drafty areas. Damper Stop Installation A damper stop is provided with this appliance. -
Page 12: Adequate Combustion Ventilation Air
G. Adequate Combustion Ventilation Air Damper Stop Installation (cont.) This appliance shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. The National Fuel Gas Code, (ANSI Z223.1/NFPA54), Damper defines a confined space as a space whose volume is less Stop... - Page 13 Minimum Flue Opening Free opening area of chimney damper for venting combustion products (factory-built fireplaces) Chimney Height 2TR-IPI-R18-N 2TR-IPI-R18-P 2TR-IPI-R24-N 2TR-IPI-R24-P 2TR-IPI-R30-N 2TR-IPI-R30-P 10 ft 28.3 22.1 Not Allowed 44.2 Not Allowed 44.2 15 ft 21.2 17.3 38.5 32.2 38.5 32.2 20 ft 18.1...
-
Page 14: Gas Information
Gas Information Note: Have the gas supply line installed in accordance WARNING with local codes, if any. If not, follow ANSI Z223.1. Instal- lation should be done by a qualified installer approved Use new black iron or steel pipe. Internally tinned and/or licensed as required by the locality (In the Com- copper or copper tubing can be used per National monwealth of Massachusetts installation must be per-... -
Page 15: Verify Gas Pressure
D. Verify Gas Pressure The valve regulator controls the burner pressure. Gas pressure must be verified at both the inlet and outlet pressure test ports. 1. Turn captured screw counterclockwise two or three turns. See Figure 5.2. 2. Place tubing from pressure gauge over test port. 3. -
Page 16: Electrical Information
Electrical Information A. Wiring Requirements WARNING! Risk of Shock! Label all wires prior to disconnection when servicing controls. Wiring errors can WARNING! Risk of Shock or Explosion! DO NOT cause improper and dangerous operation. Verify proper wire 110-120 VAC to the valve. Incorrect wiring will dam- operation after servicing. -
Page 17: Appliance Installation And Set-Up
Appliance Installation and Set-up B. On/Off Switch and Remote Control WARNING This vented log set comes supplied with an On/Off Switch and a battery powered remote control kit. You must secure the gas log appliance to the fireplace floor. If not, the entire unit may move when •... -
Page 18: Natural Gas Set-Up
C. Natural Gas Set-up 6. Remove the Platinum Bright Embers™ from the package. For optimum performance peel each piece Burner Media Placement: apart in layers and lightly place on top of the rock 1. Pour sand into each burner pan to the point where the wool where the flame is blue. -
Page 19: Propane (Lp) Gas Set-U
Note: For best results, do not pack down the rock wool. The placement of rock wool can have an effect on flame The Stadium series vented log set has multiple log op- pattern and may need to be adjusted to achieve a desired tions to choose from. -
Page 20: Before Lighting Appliance
F. Before Lighting Appliance H. Initial Use Before operating this appliance for the first time, have a Initial Break-in Procedure: qualified service technician: • The burner should run three to four hours continu- • Verify all shipping material have been removed from ously on high. -
Page 21: Intermittent Pilot (Ipi)
Lighting Instructions A. Intermittent Pilot (IPI) LIGHTING INSTRUCTIONS STOP! Read the safety instruction label. To light pilot and main burner, turn wall switch to Turn wall switch to the “OFF” position. “ON”. Don not light by hand. If appliance will not operate, follow the instructions “TO TURN OFF GAS TO APPLI- ANCE”... -
Page 22: Maintenance And Service
Maintenance and Service Firebox Inspection Any safety screen removed for servicing must be replaced prior to operating the appliance. Frequency: Annually By: Qualified Service Technician When properly maintained, your appliance will give you many years of trouble-free service. Contact your dealer Tools needed: Protective gloves, sandpaper, steel wool, to answer questions regarding proper operation, trouble- cloths, mineral spirits, primer and touch-up paint. -
Page 23: Cleaning And Servicing
C. Cleaning and Servicing Annual inspection and cleaning by your dealer or quali- fied service technician is recommended to prevent mal- function and/or sooting. Caution! Before cleaning make sure the appliance is cool and the power to the unit is turned off. Note: During normal operation it is common that some sooting may occur on the logs as well as internal panels. -
Page 24: Frequently Asked Questions
Troubleshooting A. Frequently Asked Questions ISSUE SOLUTION When first operated, this appliance may release an odor for the first several hours. This Odor from appliance is caused by the burning off of any oils remaining from manufacturing. Odor may also be released from finishing materials and adhesives used around the appliance. - Page 25 IntelliFire™ Ignition System (Continued) SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Pilot covered with Verify that the pilot is clear of all media. If covered, remove media. media and restart. Verify that incoming gas line ball valve is “open”. Verify that No gas supply. inlet pressure reading is within acceptable limits.
-
Page 26: Service Parts
Service Parts 2TR-IPI-R18-N / 2TR-IPI-R18-P Beginning Manufacturing Date: 2-Tier Stadium 18” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth Stocked and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. - Page 27 Service Parts 2TR-IPI-R24-N / 2TR-IPI-R24-P Beginning Manufacturing Date: 2-Tier Stadium 24” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth Stocked and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
- Page 28 Service Parts 2TR-IPI-R30-N / 2TR-IPI-R30-P Beginning Manufacturing Date: 2-Tier Stadium 30” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth Stocked and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
- Page 29 Service Parts 3TR-IPI-R18-N / 3TR-IPI-R18-P Beginning Manufacturing Date:Feb 2025 3-Tier Stadium 18” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number Stocked when requesting service parts from your dealer or distributor.
- Page 30 Service Parts 3TR-IPI-R24-N / 3TR-IPI-R24-P Beginning Manufacturing Date:Feb 2025 3-Tier Stadium 24” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth Stocked and Home Technologies does not sell directly to consumers. Provide model number and serial number at Depot when requesting service parts from your dealer or distributor.
- Page 31 Service Parts 3TR-IPI-R30-N / 3TR-IPI-R30-P Beginning Manufacturing Date:Feb 2025 3-Tier Stadium 30” Hearth Kit Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth Stocked and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
-
Page 32: Contact Information
B. Contact Information Hearth & Home Technologies 7571 215 Street West, Lakeville, MN 55044 www.hearthnhome.com Please contact your dealer with any questions or concerns. For the location of your nearest dealer, please visit www.hearthnhome.com - NOTES - NOTICE DO NOT DISCARD THIS MANUAL •...
