Models:
SUPREME-I25-IFT, SUPREME-I30-IFT, SUPREME-IFT-BIR
RUBY25IL, RUBY30IN, RUBY30IL, RUBY35IN, RUBY35IL, EXCURSION-I, EXCURSION-II, EXCURSION-III,
PROV-I30-IPI, PROV-I35-IPI, JASPER30IN, I25X-AU, I30X-AU, I35X-AU
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
I30X-AU INSTALLATION INSTRUCTIONS,
SKIP TO PAGE 4.

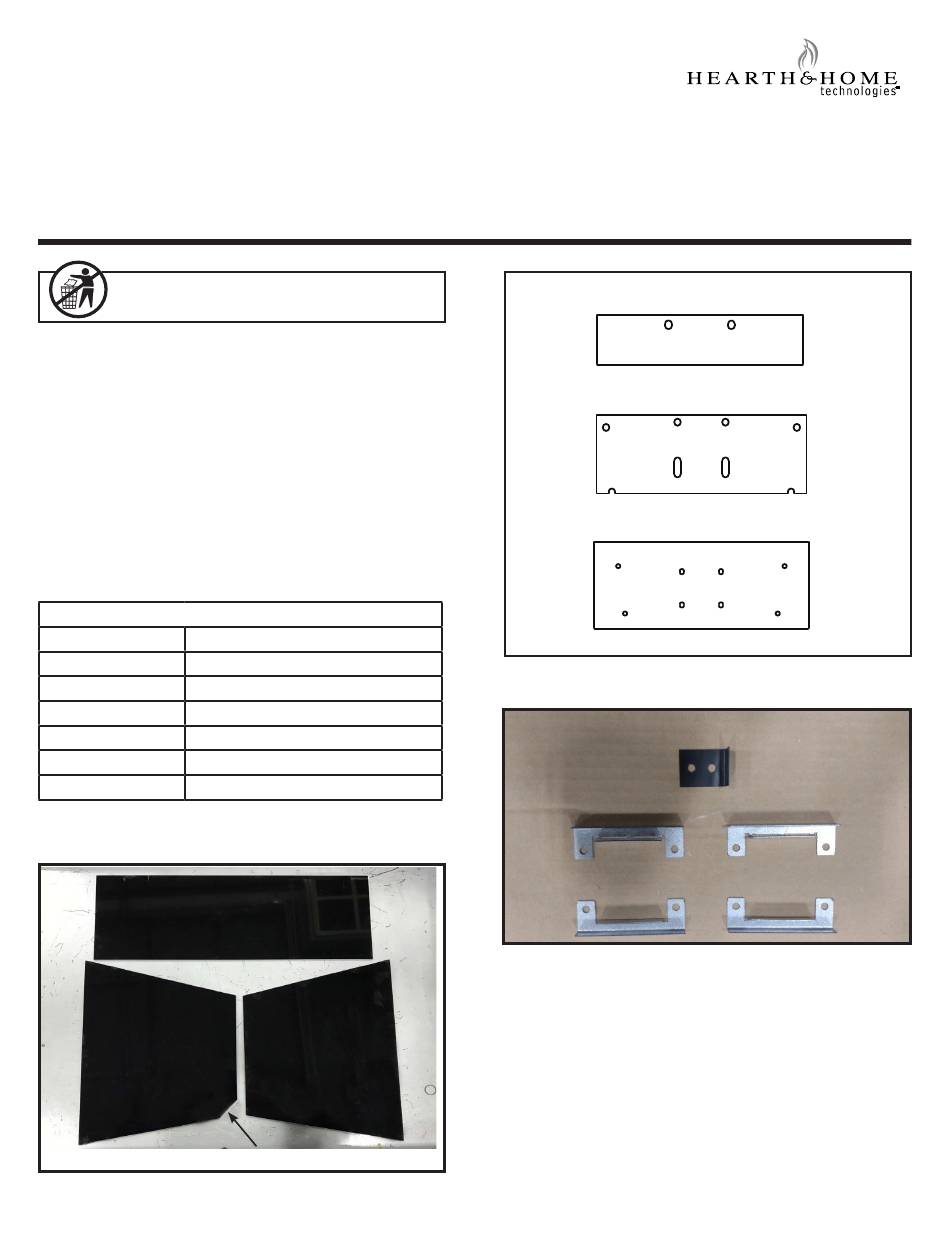

KIT COMPONENTS
• (1) Left Glass Refractory Panel
• (1) Right Glass Refractory Panel
• (1) Back Glass Refractory Panel
• (1) Rear Glass Clip
• (4) Magic Glass Channels
• (1) Magic Glass Insulation Board
SERVICE PARTS
PART NUMBER
SRV2531-079
25 in. Glass Panel Kit
SRV2532-079
30 in. Glass Panel Kit
SRV2533-079
35 in. Glass Panel Kit
2532-159
Magic Glass Channels
060-235-25
Rear Glass Clips (qty 25)
2532-158
30 in. Magic Glass Insulation
Note: The Black Glass Refractory kit is not recommend-
ed for use with the Ambient Light Kit.
CHAMFER ON LEFT GLASS PANEL
Figure 1. Glass Panels
Hearth & Home Technologies • LINER-BK-25, LINER-BK-30, LINER-BK-35 Installation Instructions • 2532-951 Rev. G • 10/22
LINER-BK-25, LINER-BK-30, LINER-BK-35
Glass Refractory Panel Installation Instructions-
DESCRIPTION
,
SUPRM-I30LP-IFT, SUPREME-I35-IFT, RUBY25IN,
25 in.
30 in.
35 in.
Figure 2. Insulation Boards
REAR GLASS CLIP
MAGIC GLASS CHANNELS
Figure 3. Magic Glass Channels and Rear Glass Clip
1
