Acquisition Module Test - GE MAC 5500 Service Manual

Troubleshooting
Ethernet Module Test
The Ethernet Module Test verifies the system can communicate via the Ethernet
connection.
1. Select Ethernet Module Test.
The Ethernet Module Interrogation window opens and displays one of the
following:

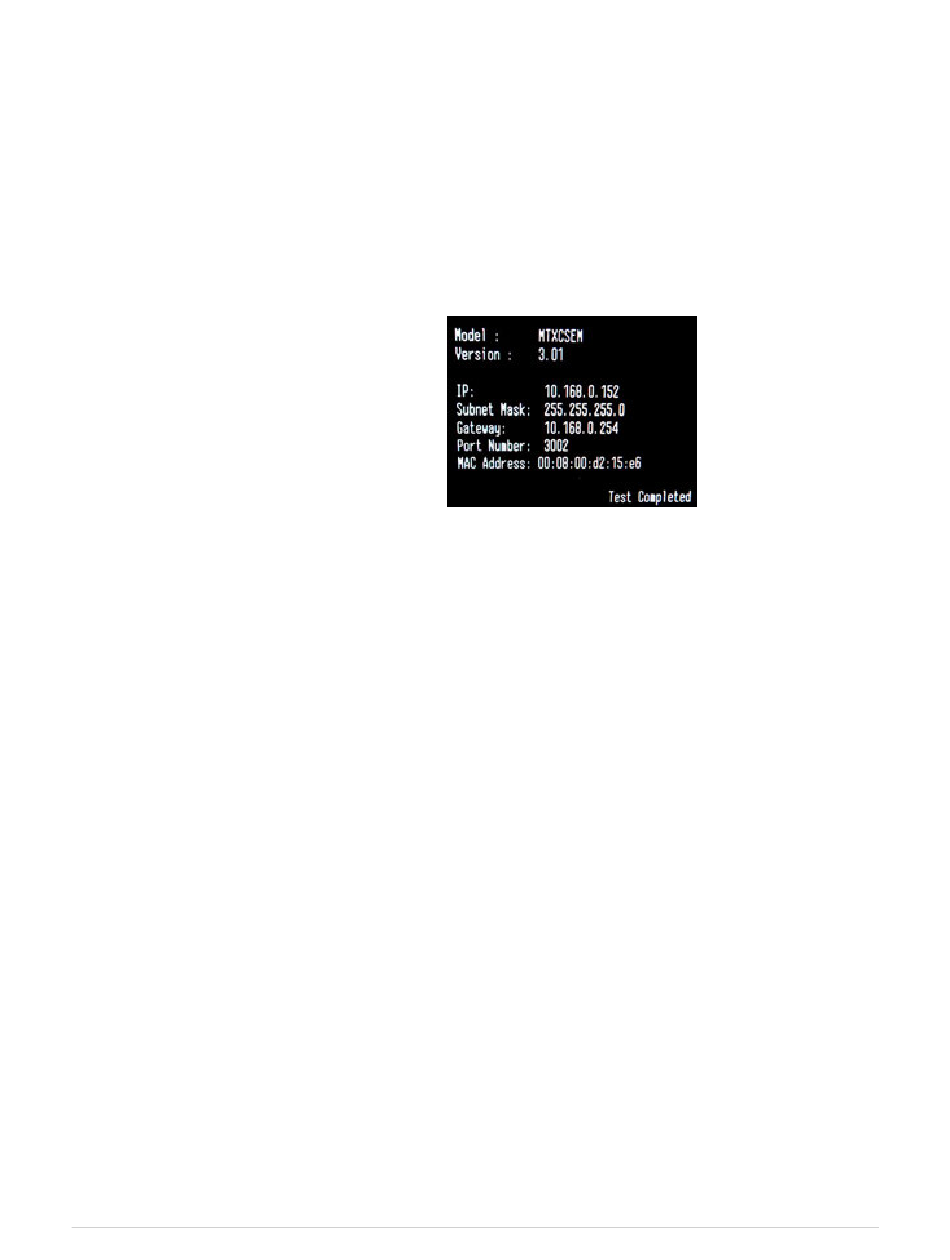

• If the system can communicate via the Ethernet, the test returns and displays
• If the system cannot communicate with the modem, the system displays N/A
2. Press any key to exit the test.

Acquisition Module Test

The Acquisition Module Test does the following:
• Tests whether the acquisition module is powered
• Tests whether the acquisition module is communicating
• Indicates when one of the three acquisition module buttons is pressed
• Displays the acquisition module lead wire noise
• Displays the software version of the acquisition module
• CAM 14 V2 displays Acquisition Software V: 1x
• CAM HD displays Acquisition Software V: 2x
70
the device IP address, subnet mask, and MAC address information.
NOTE:
If the LAN connection on the communication board returns information
but network communication problems still exist, use the LED status
indicators on the LAN connection to see if the connection to the network
is active. You can also use a ping command from the MUSE server to see
if the MUSE system can find the unit on the network.
for the device IP address, subnet mask, and MAC address information.
NOTE:
If the test fails, consider replacing the communication board. Refer to
"Replacing the COMM Board" on page
MAC™ 5500/MAC™ 5500 HD
124.
