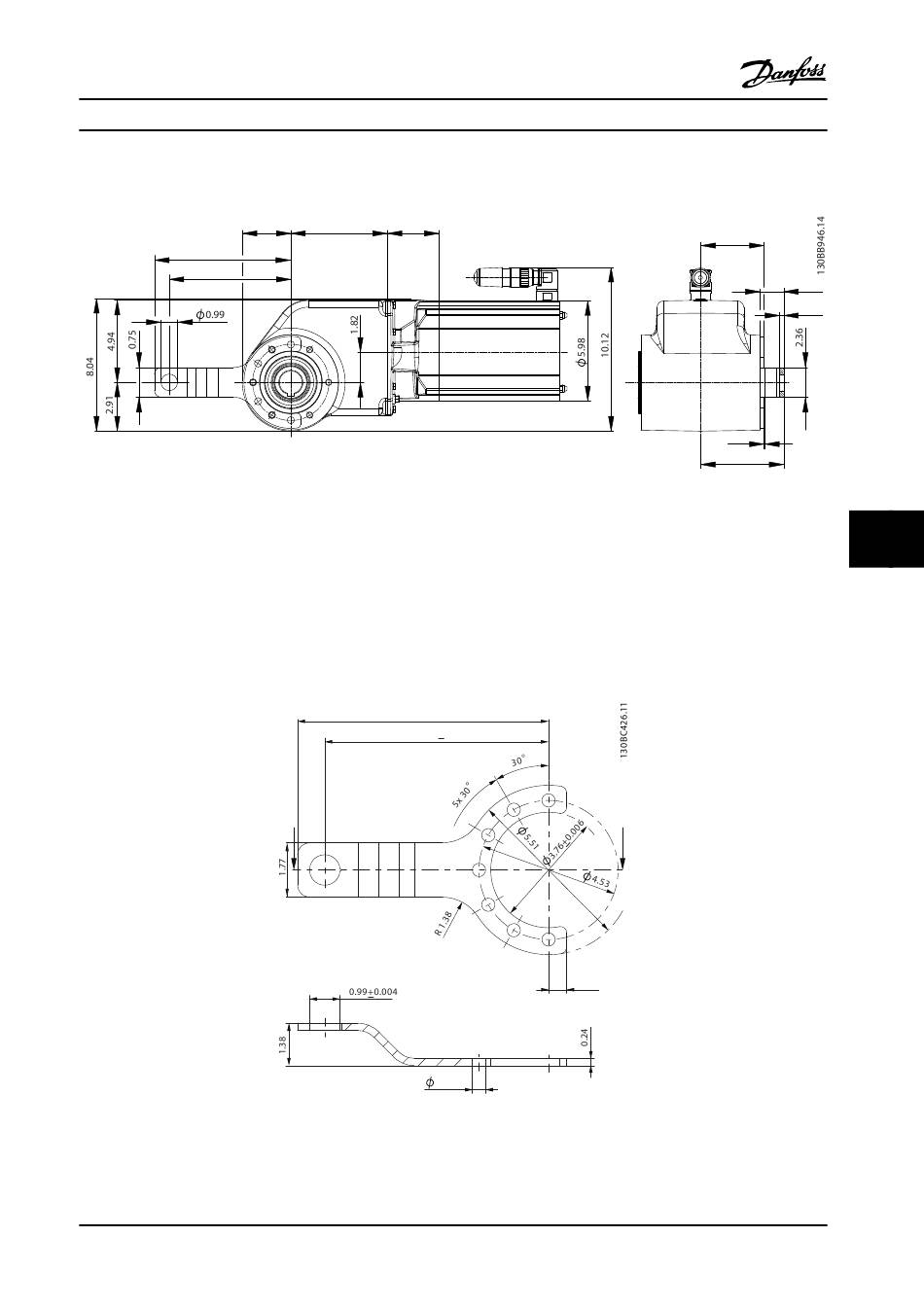

8.6.4 OneGearDrive Hygienic with Torque Arm in Front Position (optional)

8.43
7.28
Figure 8.15 Torque Arm in Front Position

8.7 Options

8.7.1 Torque Arm Set

Part number: 178H5006
The torque arm set consists of the torque arm (see Figure 8.16) and the mounting set (see Figure 8.17).
Figure 8.16 Torque Arm
MG75C522
Instruction Manual
2.91 3.09
5.79
8.17
7.28+0.008
A
