Mounting Procedure - Danfoss VLT OneGearDrive Instruction Manual

Mechanical Installation
Take care when fitting transmission elements onto the
hollow shaft of the OneGearDrive, which is finished to ISO
H7. Use the tapped end hole intended for this purpose
according to DIN 332.
3 3
The maximum force based on bearing life is detailed in
(Table 3.1).
Up to n2 [RPM]
50
100
200
360

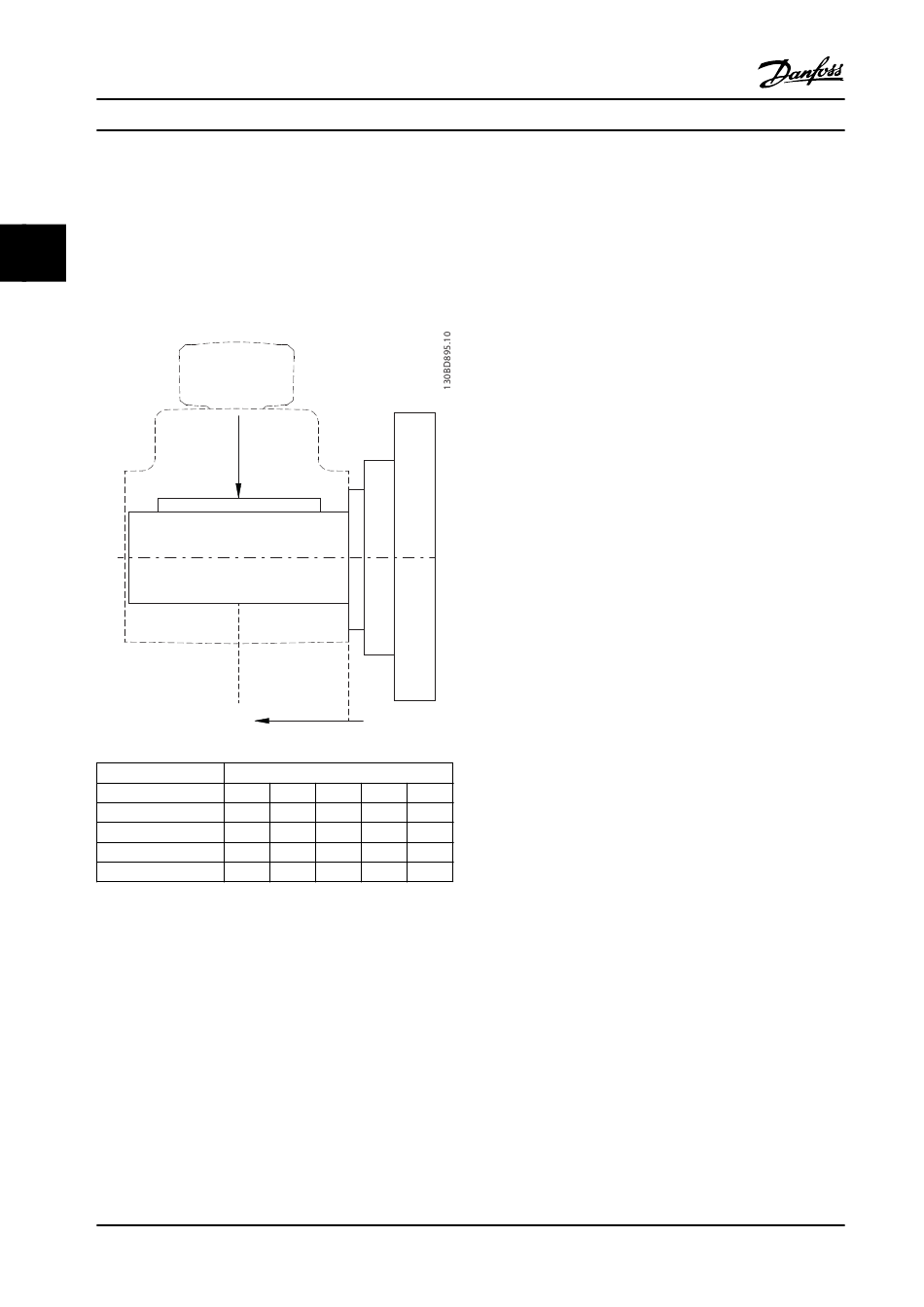

Figure 3.1 Maximum Force
8
®
VLT
F
Rzul
0
X
1)
F [N] up to X [mm]
RZUL
25 50 75 100
4319 3763 3335 2994
3023 2634 2334 2096
1727 1505 1334 1198
1404 1223 1084 973
Danfoss A/S © 08/2015 All rights reserved.
OneGearDrive
1) X is the distance from the surface of the hollow shaft to the
force location.

3.5.1 Mounting Procedure

1. Fasten the OneGearDrive by its flange using the
torque arm (see chapter 8.7.1 Torque Arm Set).
2. Attach the OneGearDrive on to the driven shaft
using the means provided.
125
2716
1901
1086
883
MG75C522
