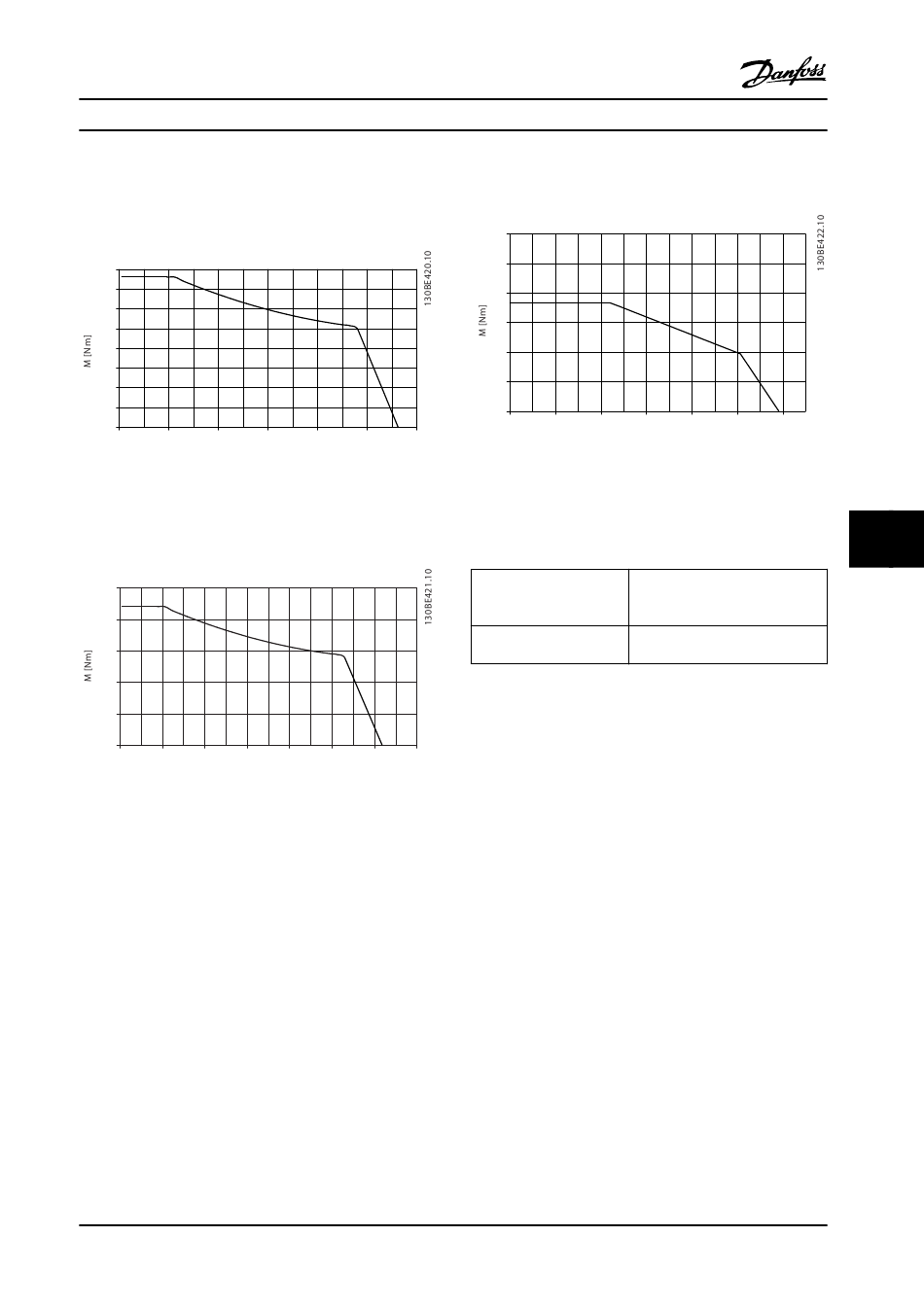

8.4 Speed/Torque Characteristics

8.4.1 Ratio i=31.13
i = 31.13
400
350
300
250
200
150
100
50
0
0 20 40
n [rpm]
Figure 8.2 Ratio i=31.13
8.4.2 Ratio i=14.13
i = 14.13
250
200
150
100
50
0
0 40 80 120
n [rpm]
Figure 8.3 Ratio i=14.13
MG75C522
Instruction Manual
60 80 100 120
160 200 240 280
Danfoss A/S © 08/2015 All rights reserved.
8.4.3 Ratio i=5.92
i = 5.92
120
100
80
60
40
20
0
0 100 200 300
n [rpm]
Figure 8.4 Ratio i=5.92
8.5 General Specifications and
Environmental Conditions
Installation elevation Refer to the Design Guide for the
installed adjustable frequency
drive.
Maximum backlash of ±0.07°
gearbox unit
Table 8.2 General Specifications and Environmental Conditions
