Position Description
1 Disc
2 Nut
3 Disc
4 Nut
5 Disc
6 Customer frame
7 Barrel
8 Bushing
9 Screw

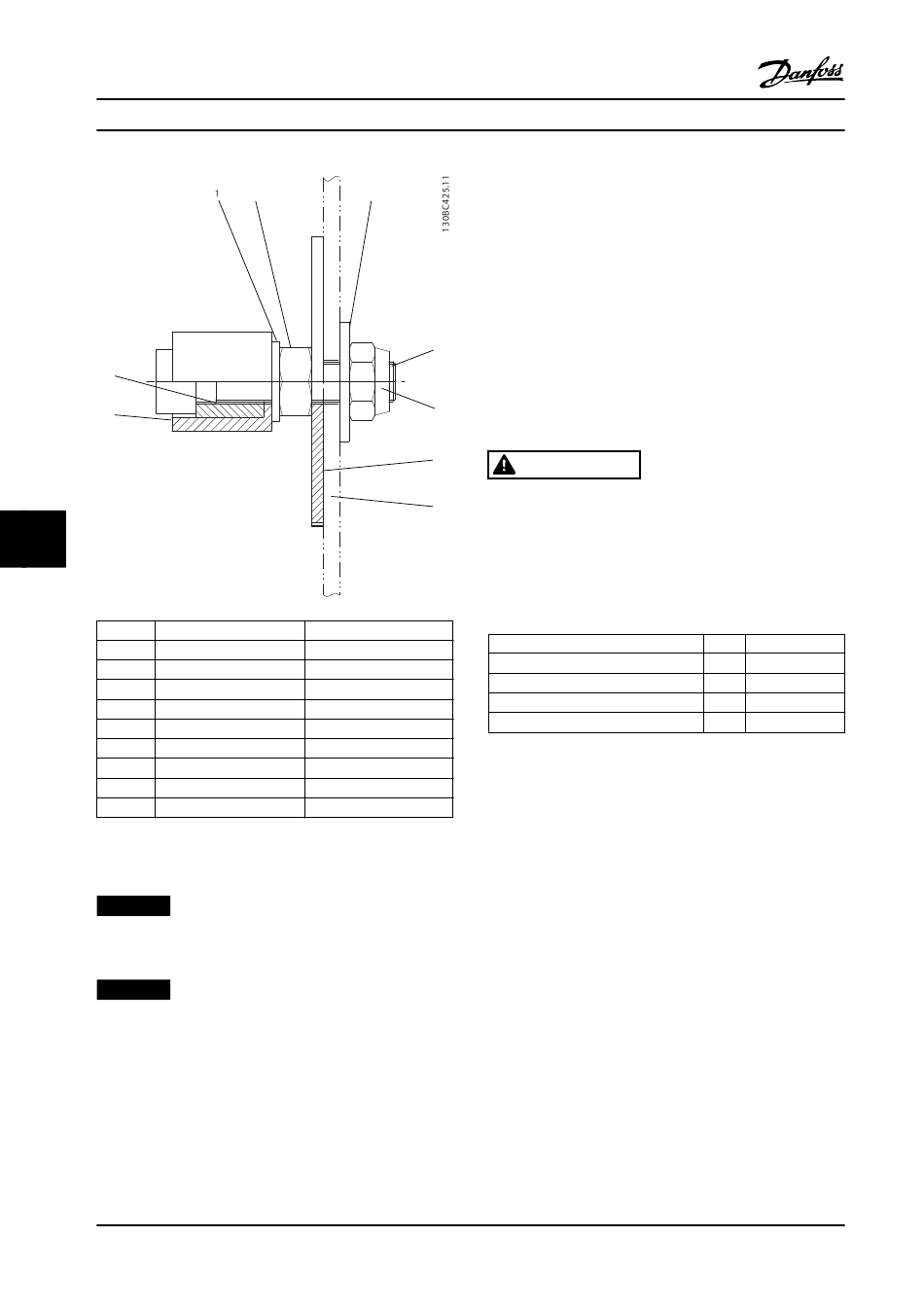

Figure 8.17 Mounting Set
NOTICE!
The set also contains 3xDIN 933, M10x25, 8.8, stainless
steel screws. The tightening torque is 49 Nm.
NOTICE!
Only use the original Danfoss or comparable mounting
set to mount the OneGearDrive to the conveyor. The
mounting equipment used must ensure the same degree
of flexibility as the original Danfoss mounting set. The
torque arm cannot be screwed directly on to the
conveyor frame.
28
®
VLT OneGearDrive
2 3
Specification
DIN 125-A10 5
DIN 934 M10
DIN 9021 10, 5x30x25
DIN 985 M10
Ø73x3 Stainless steel
–
POM-C white
Stainless steel
Stainless steel
Danfoss A/S © 08/2015 All rights reserved.

8.7.2 Mechanical Brake

8.7.2.1 Overview

The OneGearDrive Standard is available with a 180 V DC
brake option. This mechanical brake option is intended for
emergency stop and park brake duty. Normal braking of a
load is still controlled by the adjustable frequency drive
dynamic brake.
9
Spring-loaded brakes are safety brakes that continue to
work in the event of power failure or usual wear. Since
other components could also fail, take suitable safety
4
precautions to avoid any injury to persons or damage to
objects caused by operation without a brake.
WARNING
5
Danger of fatal injury if the hoist falls.
6
Severe or fatal injuries.
•
Do not use the brake in vertical lifting and
hoisting applications.

8.7.2.2 Technical Data

Voltage
P
el
Resistance
Current
Maximum brake torque
Table 8.3 Technical Data: Mechanical Brake Option
V 180 ±10%
DC
W 14.4
Ω 2250 ±5%
A 0.08
Nm 10
