Mechanical Installation

3.6 Assembly Kit

1 Shaft
2 Disc
3 Retaining ring
4 Lock washer
5 Fixing screw (fillister head)
6 Key

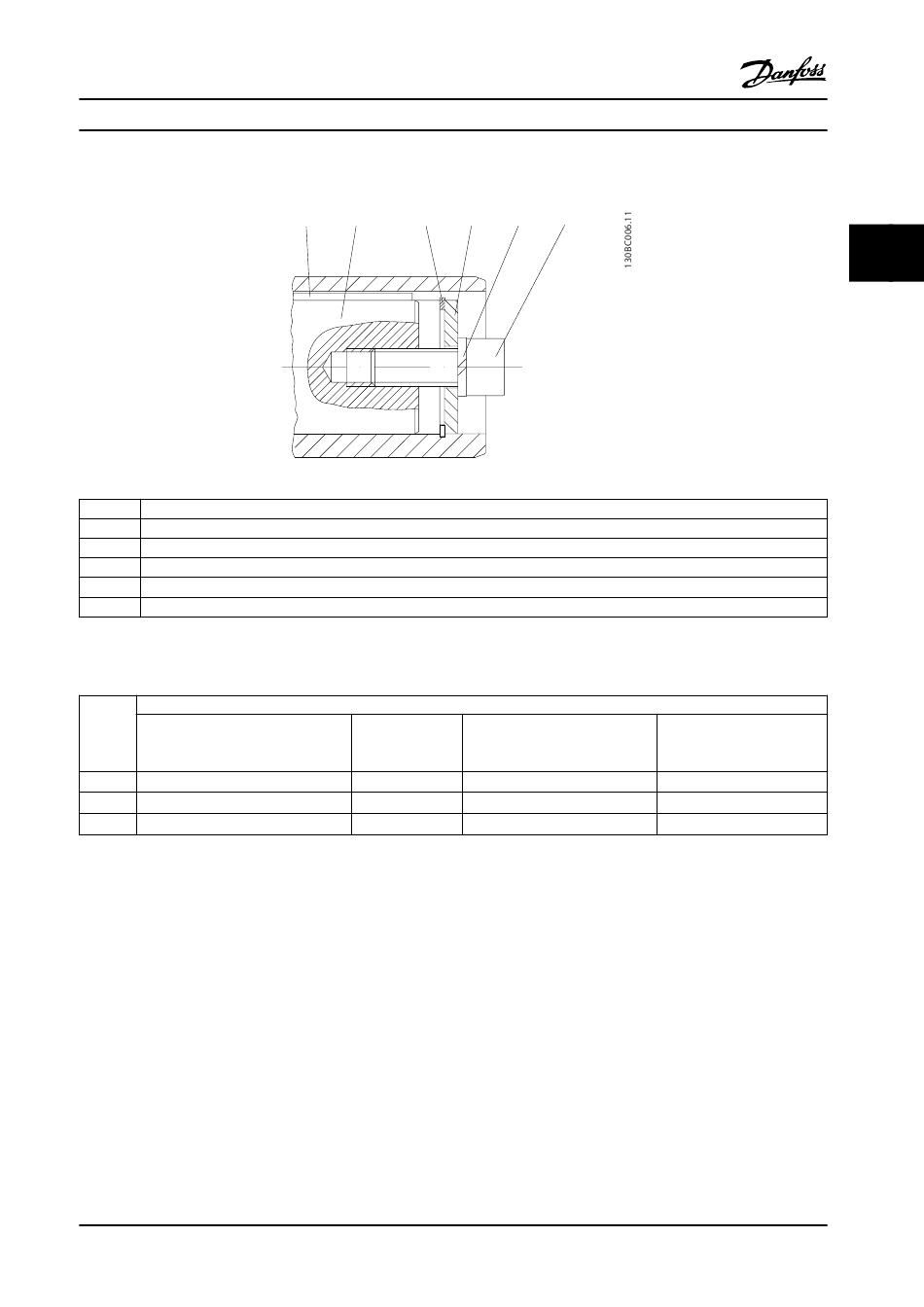

Figure 3.2 Assembly Kit
Type
Stainless steel retaining ring (3)
ANSI B17.1
OGD-L1 1.250 x 0.050
OGD-L2 1.4375 x 0.050
OGD-L3 1.500 x 0.050
Table 3.1 Dimensions of Assembly Kit Items
1) Key length required for b in Table 3.2. Adapt the key length according to the shaft length used (b) in Table 3.2.
min
The dimensions shown could differ from the customer conditions and must potentially be changed by the customer.
Mounting instructions
Rotate the disc (2) and fit it against the retaining ring (3). Both items are included in every delivery.
The fixing screw (5) and lock washer (4) are not included in the delivery. The screws and washers required depend on the
length and size of the shaft. For further information, refer to the mounting arrangement (see chapter 3.5 Mounting
Arrangement).
MG75C522
Instruction Manual
6 1 3 2
Holding
Dimensions (inch)
Lock washer (4)
ANSI B17.1
0.375
0.500
0.625
Danfoss A/S © 08/2015 All rights reserved.
4 5
Fixing screw (5)
ANSI B17.1
0.500–13 x 1.1875 [M12 x 30]
0.500–13 x 1.3750 [M12 x 35]
0.625–11 x 1.6250 [M16 x 35]
Key (6)
ANSI B17.1
Width x Height x Length
0.2500 x 0.2500 x 3.937 1)
1)
0.3750 x 0.3750 x 3.937
1)
0.3750 x 0.3750 x 3.937
9
3 3
