3. General description

Grundfos Multilift MOG and MDG lifting stations are supplied
complete with collecting tank, connection accessories,
LC 221 controller and level sensor.
The following gives a description of the components.

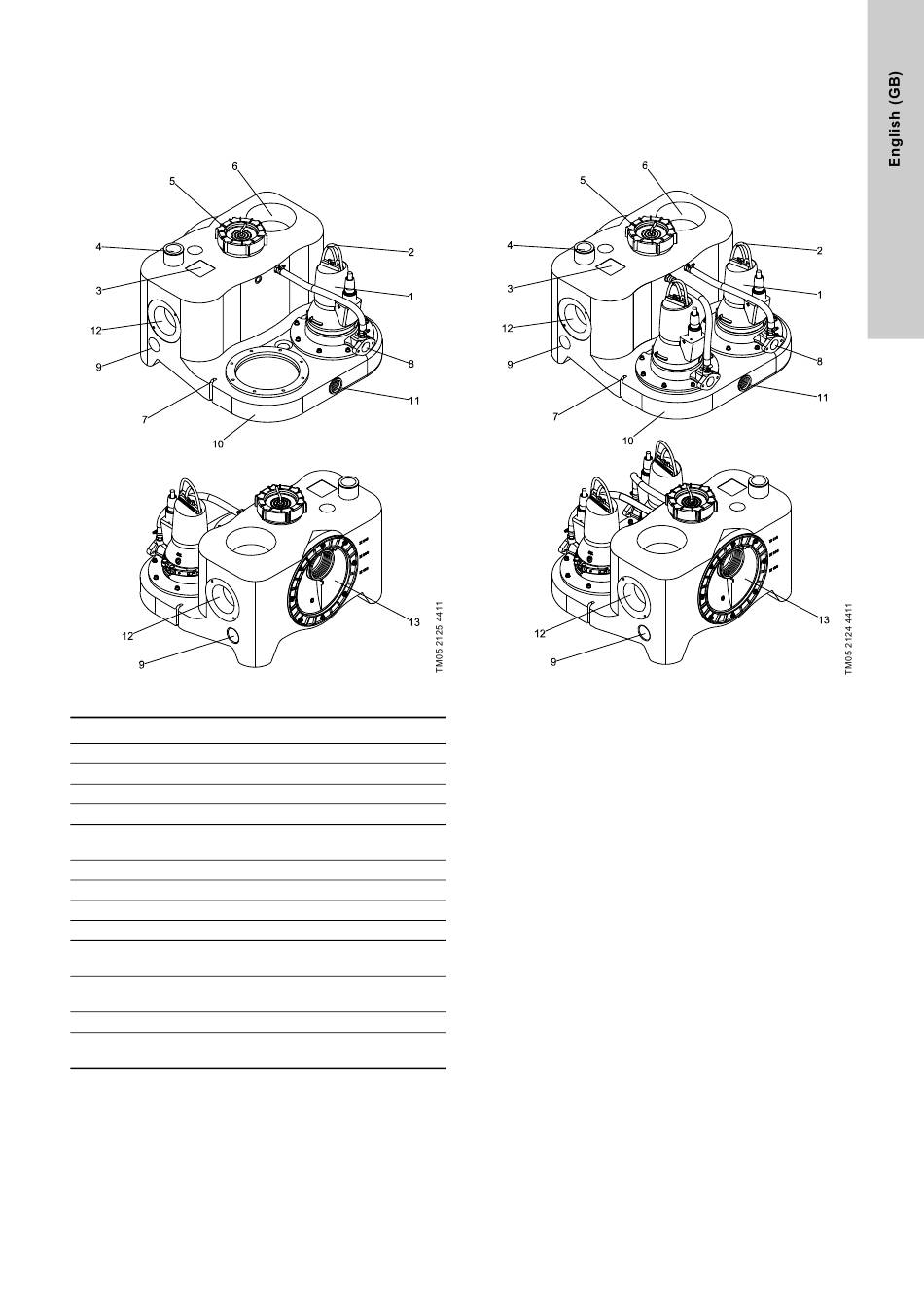

Fig. 1 Multilift MOG front and rear view
Pos. Description
1 Pump with grinder system and vortex impeller
2 Lifting bracket
3 Nameplate
4 Venting port, DN 70 (outer diameter, 75 mm), open
Screw cap for pressure tube and tank inspection
5
opening
6 Vertical inlet, DN 150 (seal is accessory)
7 Fixing point
8 Oval flange for connecting the outlet line
9 Side or top inlet, DN 50 (seals are accessory).
Collecting tank with carrying handle moulded into
10
tank body
Port for manually operated diaphragm pump, 1 1/2".
11
Socket with seal.
12 Horizontal inlet, DN 100 (seal is accessory)
Adjustable inlet disk, DN 100 (DN 150 optional as
13
accessory)
Fig. 2 Multilift MDG front and rear view
3
