7. Installation of lifting station

7.1 General description

When installing the Multilift MOG or MDG lifting station, make
sure that all local regulations covering venting, access to the
stations, etc., are observed.
7.1.1 Installation sketch

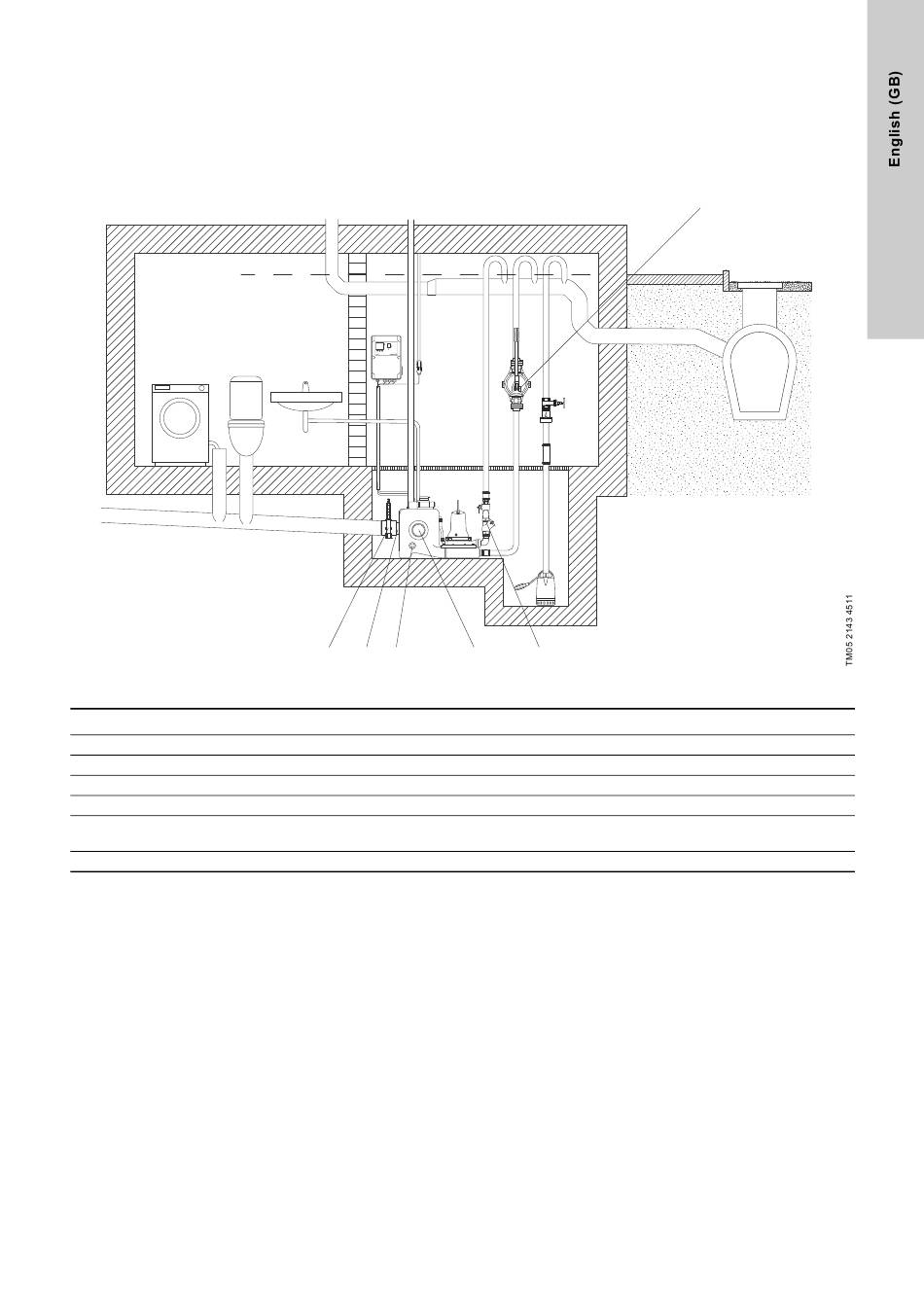

Fig. 18 Installation sketch
Pos. Accessories
1 Socket seal, DN 100
2 Socket seal, DN 50
3 Diaphragm pump, 1 1/2"
4 PVC isolating valve, DN 100
5 1 1/2" complete pre-assembled outlet pipework (see detailed description below)
6 Inlet disk with socket seal, DN 150, for replacement
4 6 2 1
3
5
Product number
98085356 (MOG)
98085358 (MDG)
97726942
98079669
96003721
96615831
98079681
