Operator Panel And Display - IKA ICC basic Manual

L
M
F
B

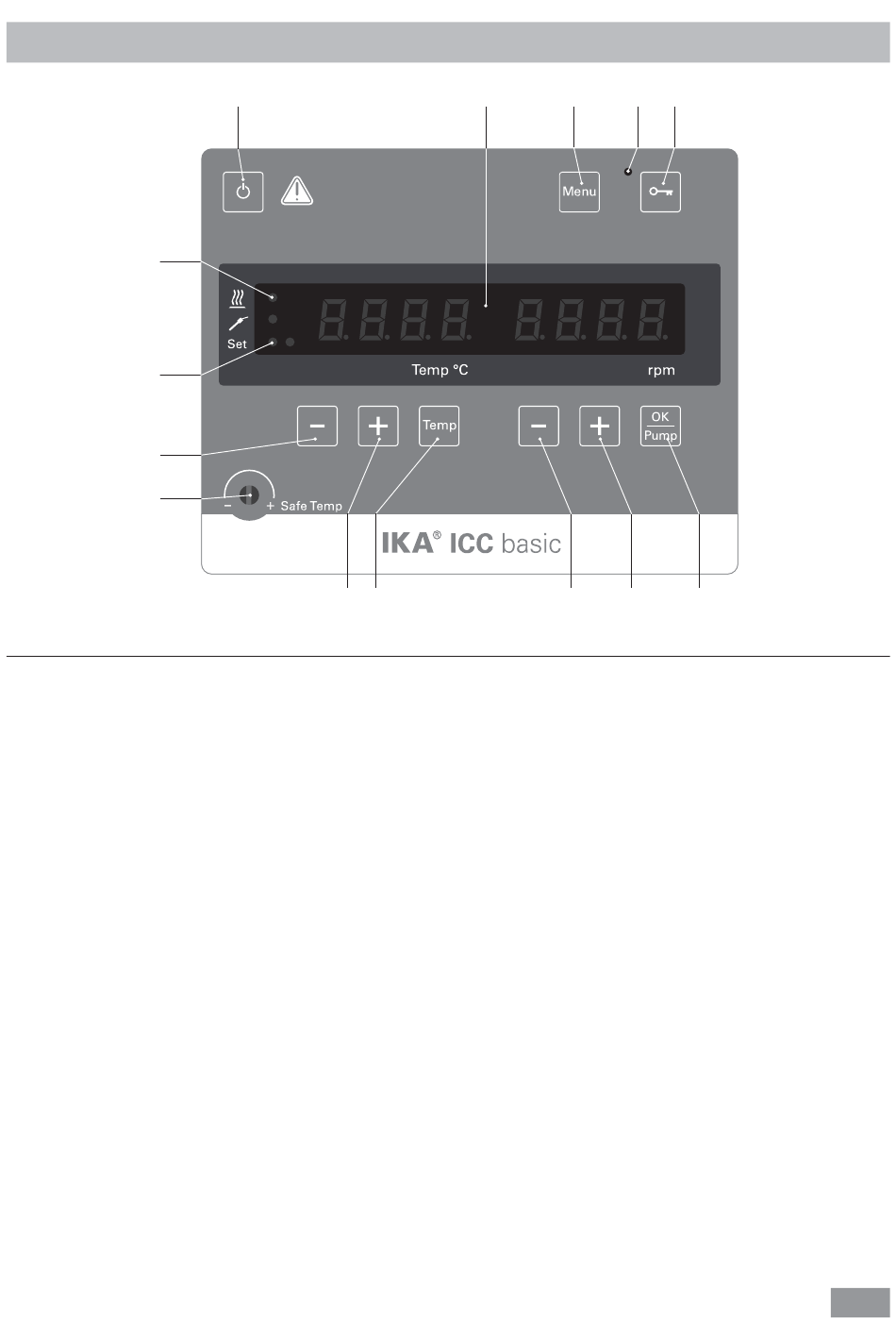

Fig. 3
Item Designation
A On/Off button:
B Adjustable safety circuit:
C LED display:
D "Temp" button:
E "Temp (+)" button:
F "Temp (-)" button:
G "OK/Pump" button:
H "Pump (+)" button:
I "Pump (-)" button:
J "Menu" button:
K LED, key button:
L LED, heater:
M LED, set:
O Key button:

Operator panel and display

A
E D
Function
Switch on/off the circulator.
Adjust the safety temperature limit with delivered screwdriver.
Display the settings and actual values.
Start/stop the heating function.
Increase the temperature setting value.
Navigation, selecting the settings in the menu.
Decrease the temperature setting value.
Navigation, selecting the settings in the menu.
Start/stop the pump function.
Confirm the menu settings.
Increase the pump speed setting value.
Change the value setting in the menu.
Decrease the pump speed setting value.
Change the value setting in the menu.
Press it once: menu option is display.
Press it a second time: back to the working screen.
Indicate that the function of keys are deactivated.
Indicate the heating function is activated.
The LED lights up at the same time as the set value is displayed.
Lock/unlock keys.
J K
C
I H
O
G
