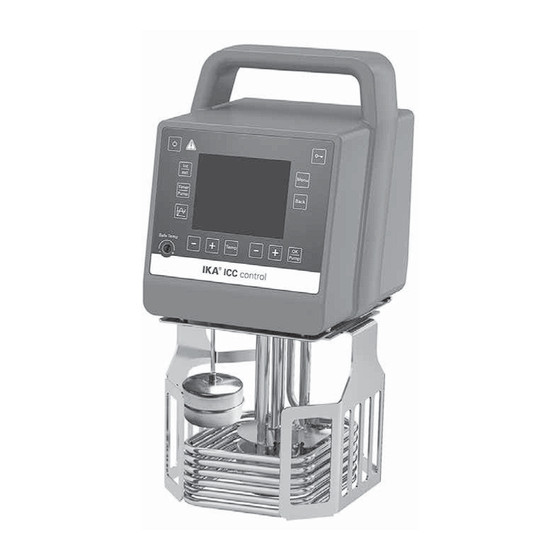

IKA ICC control Operating Instructions Manual
IKA ICC control Operating Instructions Manual

IKA ICC control Operating Instructions Manual

Hide thumbs Also See for ICC control:

Advertisement

Quick Links

ICC control
Operating instructions
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the ICC control and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IKA ICC control

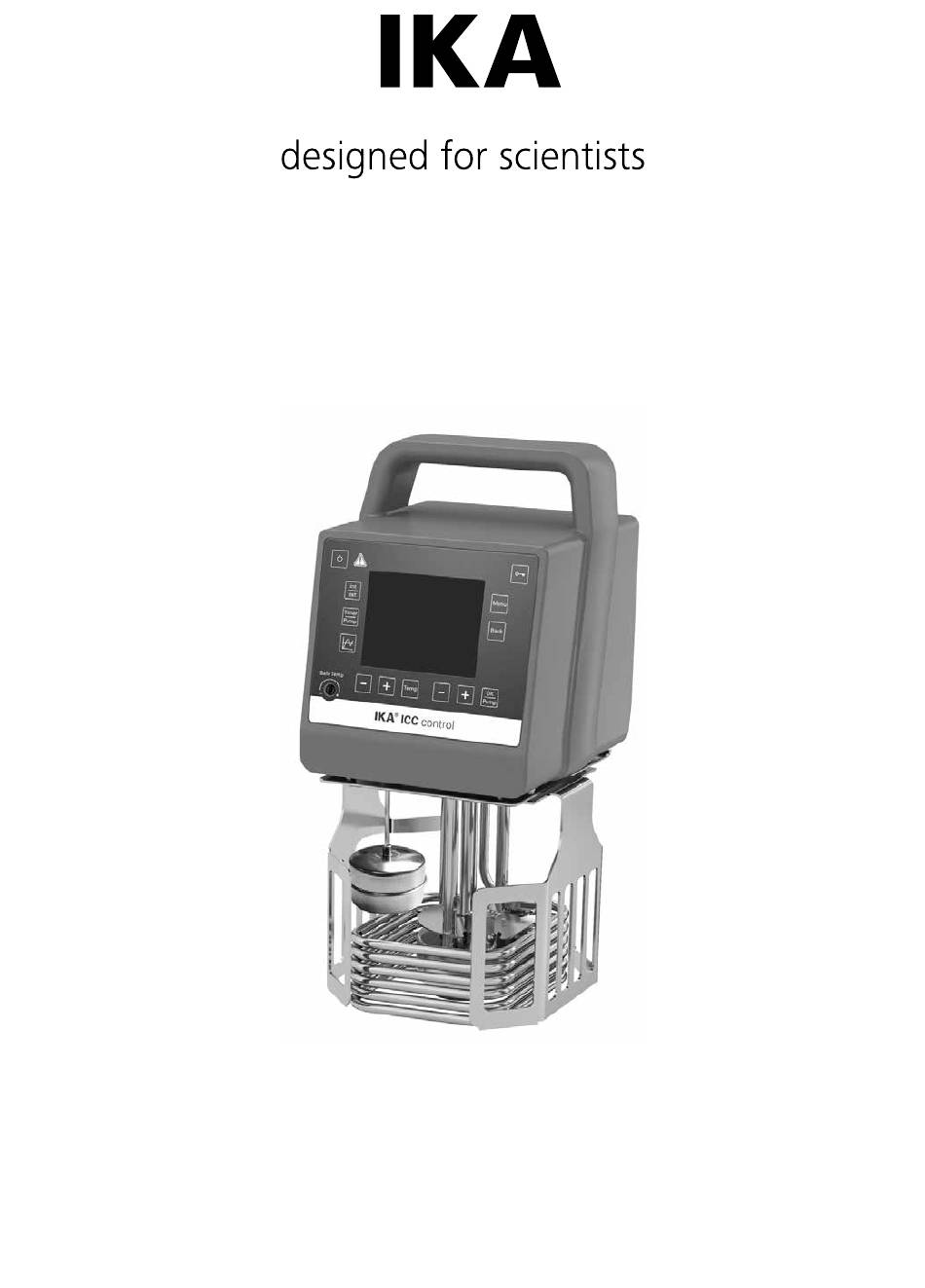

  • Page 1 ICC control Operating instructions...
  • Page 2 Fig. 1 Fig. 2 Item Designation Operator panel and display Mains switch Power socket Buoyage Heater Stand Pt 100 + Pt 1000 temperature sensor Handle RS 232 port USB port Clamp Cable clip External temperature sensor socket...
  • Page 3 Delivery scope �����������������������������������������������������������������������������������������������������������������������������������������������������������7 Useful information ............................7 Preparations ..............................7 Setting up �����������������������������������������������������������������������������������������������������������������������������������������������������������������7 Filling and draining ����������������������������������������������������������������������������������������������������������������������������������������������������7 Fluid (Standard information for IKA fluid) ������������������������������������������������������������������������������������������������������������������8 Operator panel and display .......................... 9 Commissioning ............................10 Setting the safety temperature ........................11 Operation ..............................11 Working screen at the time of delivery ���������������������������������������������������������������������������������������������������������������������11...
  • Page 4 EU and 2011/65/EU and conforms with the following standards or normative documents: EN 61010-1, EN 61010-2-010, EN 61326-1, EN 60529, EN ISO 12100 and DIN 12876-1, -2, -3� A copy of the complete declaration of conformity or further declarations of conformity can be requested at sales@ika�com� Explication of warning symbols...
  • Page 5 At high operating temperatures, • Process pathogenic material only in closed vessels under WARNING the temperature of housing a suitable fume hood� Please contact IKA application parts, surfaces and tubes can ex- support if you have any question� ceed 70 ° C�...
  • Page 6 The safety of the user cannot be guaranteed: ing and circulating fluids� - If the device is operated with accessories that are not sup- plied or recommended by the IKA Intended Use: Tabletop Device - If the device is operated improperly or in contrary to the IKA specifications�...
  • Page 7 Unpacking Unpacking: Delivery scope: - Please unpack the device carefully - ICC control - In the case of any damage a detailed report must be sent - Mains cables immediately (post, rail or forwarder)� - USB 2�0 cabel (A – micro B)
  • Page 8 Fluid (Standard information for IKA fluid): Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF�EG28�N10�80�8 -10 ��� 80 -10 … 80 CF�EG39�N20�80�16 -20 … 80 -20 …...
  • Page 9 Operator panel and display Fig. 3 Item Designation Function ON/OFF button: Switch on/off the circulator� Adjustable safety circuit: Adjust the safety temperature limit with delivered screwdriver� “Temp” button: Start/stop the heating function� “Temp (+)” button: Increase the temperature setting value� “Temp (-)”...
  • Page 10 In working status, stop the pump function by pressing the Circulator “OK/Pump“ button (G)� The heating function and pump ICC control stops� Version 1.4.004 In standby status, press the “OK/Pump“ button (G) to start Fig.
  • Page 11 Setting the safety temperature Adjust the safety temperature with screwdriver included The safety temperature setting will appear on the display� with the device� Factory setting: maximum value Fig. 7 Adjustment range: 0 – 160 °C Warning: The safety temperature must always be set to at least 25 ºC lower than the fire point of the fluid used�...
  • Page 12 • Menu navigation and structure: Menu navigation: Press the "Menu" key (J)�  Select the menu option by pressing the “Pump (+)” button (H) or “Pump (-)”  button (I)� Open the menu item by pressing the "OK/Pump" button (G)� ...
  • Page 13 Menu structure: Factory Settings TEMPERING Control Control Mode Internal (int) activated External (ext) Control Parameters Automatic Accurate activated Fast Manual Internal (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) 60.0, 5.0, 0.3, 3 s, +1.00 K, -1.00 k External (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) 1.0, 15.0, 0.0, 90 s, +1.00 K, -1.00 k Information (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Fluids...
  • Page 14 • Menu (Details): Fluids: Under the option "Fluids", a variety of heat transfer fluids can be selected� TEMPERING: The selected fluid limits the setting range of the target Control: temperature� See table in the section “Fluids“� The maximum and minimum temperature values of the Control Mode: selected fluid can be set within these limitations�...
  • Page 15 Start: MODE Starts the program upon request of loop mode� Operating Mode A: Infinite loop: Upon completion of the last segment, the After power-on/power failure no automatic restart of program continues with the first segment until the user functions� ends the program by stopping a device function� Operating Mode B: Loop Count: Indicates the total number of loop cycles After power-on/power failure automatic restart of func-...
  • Page 16 - Transmission speed: 9600 bit/s� USB device drivers: - Data flow control: none First, download the latest driver for IKA devices with USB - Access procedure: data transfer from the device to the com- interface from: puter takes place only at the computer’s request�...
  • Page 17 1�1)� The NAMUR commands and the additional specific IKA co mmands serve only as low level commands for communication be- tween the device and the PC� With a suitable terminal or communications programme these commands can be transmitted directly to the device�...
  • Page 18 The firmware update can be done with a computer connected through USB-Interface or RS 232 interface� For this, you need register on our website MyIKA first� After registering your device IKA will inform you about available updates for your devices� Please download the software “FWUToolSetup�zip” from our IKA service website www.ika.com�...
  • Page 19 Error codes Any malfunctions during operation will be identified by an error message on the display� Proceed as follows in such cases:  Switch off device using the main switch at the back of the device  Carry out corrective measures ...
  • Page 20 Samll cover (for IB eco 8, IB pro 9) CM.ICC Medium cover (for IB pro 12) CL.ICC Large cover (for IB eco 18, IB pro 20) • Additional accessories PCS.ICC Pump set Pt 100.3 Temperature sensor PC 1.1 Cable (RS 232) Labworldsoft ® See more accessories on www.ika.com.
  • Page 21 Technical data Nominal voltage 230 ± 10 % / 115 ± 10 % / 100 ± 10 % Frequency 50 / 60 Max� input Power 2100 (230 VAC) / 1100 (115 VAC) / 860 (100 VAC) Working temperature range (RT+10 °C at 1000rpm) °C RT + 10 ���...
  • Page 22 Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ap- period is 24 months� For claims under the warranty please ply to faults resulting from improper use, insufficient care or contact your local dealer�...
  • Page 23 Phone: +90 216 394 43 43 Phone: +84 28 38202142 Phone: +66 2059 4690 eMail: sales�turkey@ika�com eMail: sales�lab-vietnam@ika�com eMail: sales�lab-thailand@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
