Introduction

The fingerprint reader is an autonomous reader with an integrated controller.
This is a biometric recognition system based on the users' fingerprints, which allows a
greater level of security than that offered by other systems which use different types of
identifiers. It has a built in proximity reader with the following functionality:
- Some people's fingerprints do not have the information required to register them in a
biometric system. An estimated 1% of the population. In these cases we use the built
in Proximity reader.
- Security mode: double security is activated, Fingerprint+Card or Fingerprint+Code (if
the reader has a keypad), for the same User.
System Features:
- Fingerprint reader with a thermal sensor and capacity to store up to 4500 fingerprints.
- Number of users:
* 4500 in 1 fingerprint per person mode.
* 2970 in 2 fingerprint per person mode.
The use of one of these fingerprints (if registered on the system) will result in the
activation of a relay which
activates the lock-release or another device. To do this, just run your finger along the
reader sensor.
- Reader with 2 status leds
- Infrared Keypad for Programming.
card and a remote infrared keypad.
- Lock-Release Activation Relay
- Auxiliary Relay for other Functions
- Auxiliary Input for Exit Button
- Input for Open Door Sensor
Can operate as a centralised or autonomous system (configurable using dipswitches).
AUTONOMOUS configuration.

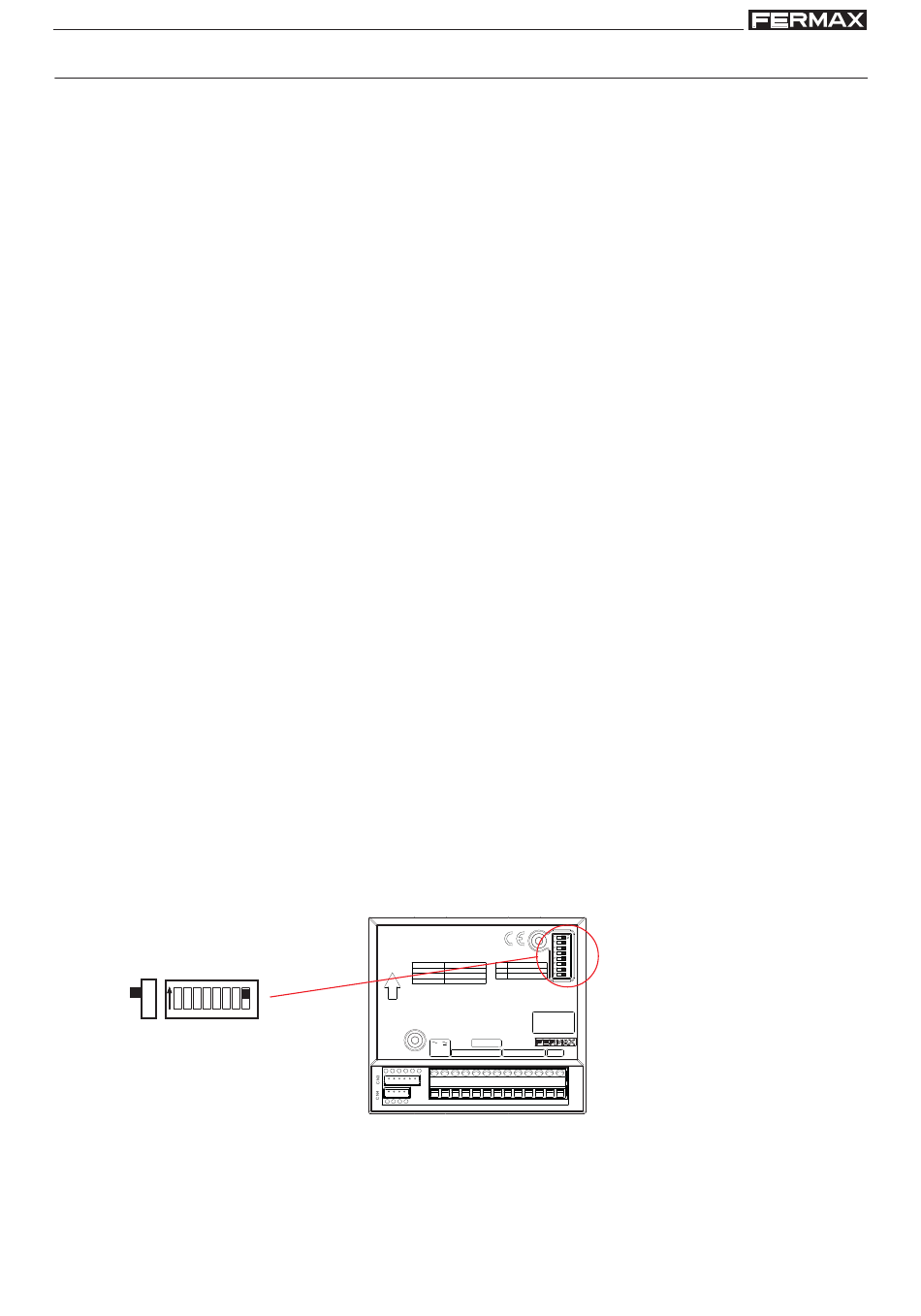

This is codified using the dipswitch on the back of the device. To function as a centralised
reader dipswitch 8 of the reader has to be set to ON.
ON ON
1 2 3 4 5 6
The following sections in the Manual explain in detail the configuration and management
of each of the system functions.
Pag 4
and a 4 digit, 7 segment display.
The system is programmed with the Master fingerprint/
UP
7 8
CONNECTOR DESCRIPTION SW1 8
KEYPAD STAND ALONE
CN3 ON
CN4 DISPLAY OFF CENTRALIZED
A B PC CONNECTOR
SW1
MÓDULO LECTOR DE HUELLA CON PROXIMIDAD
FINGERPRINT READER & PROXIMITY MODULE
12V
Sp -
Bs
+ -
Dt Ck R G B No C Nc Aux A B
+ - Dt Ck A B
