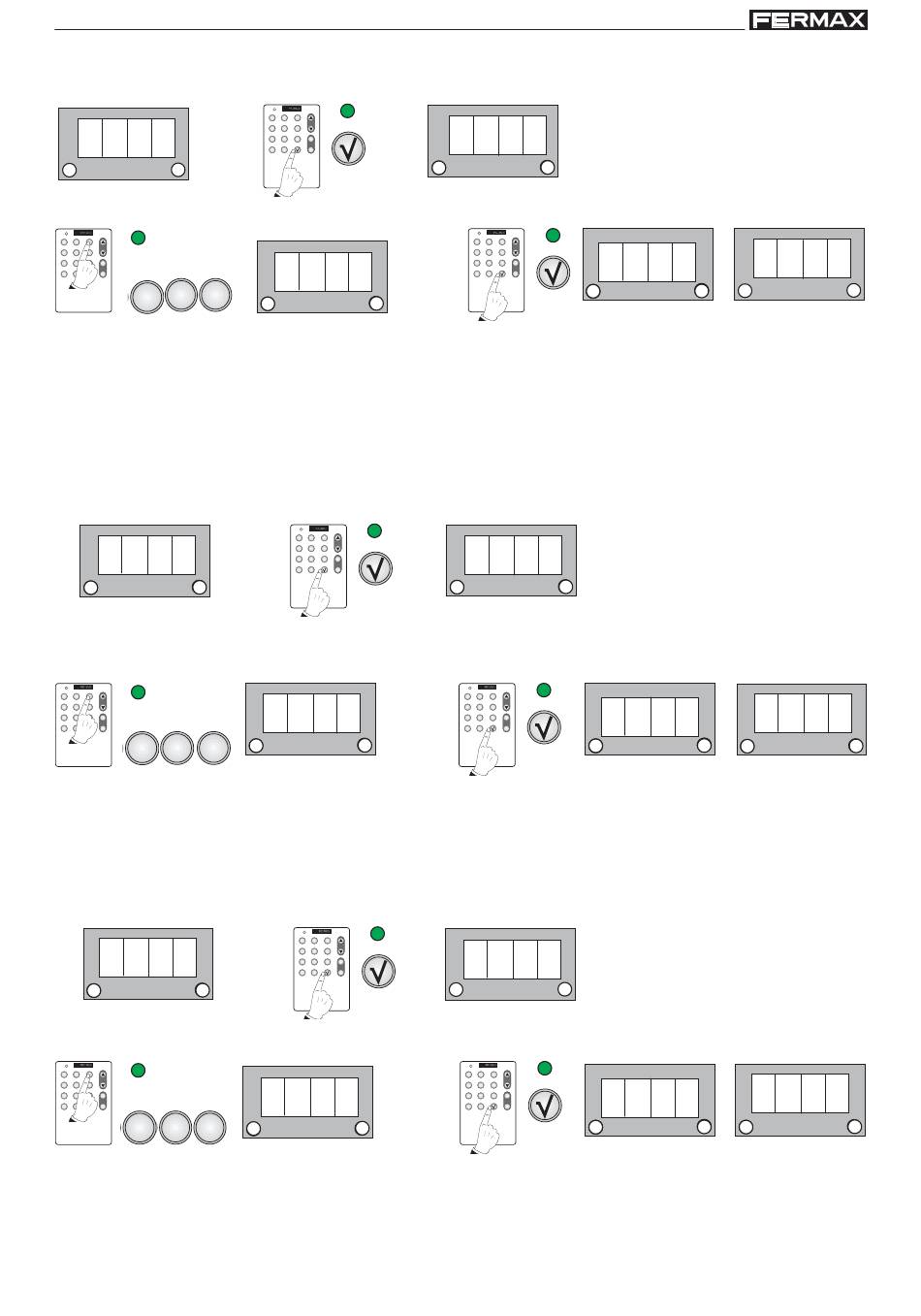

a) Lock-Release Timing
Time the door's lock-release relay remains active.
1 beep
1. Enter the required door opening time of between 01 and 99 seconds.
1
2
3
4
5
6
7
8
9
+
x
0
-
0
3
0
REMOTE UNIT
FOR ACCES CONTROL
For example: 3 secs
b) Door Sensor Timing
Maximum time the door can be open before an alarm goes off.
A magnetic door sensor is required. See diagram.
Initially these functions are disabled (000 value).
t. S E
1 beep
1. Enter a time of between 01 and 99 seconds after which, when the door is open an acoustic alarm integrated
into the reader will begin to sound.
1
2
3
4
5
6
7
8
9
+
x
-
0
0
0 8
REMOTE UNIT
FOR ACCES CONTROL
For example: 8 secs
c) Alarm Time (auxiliary output)
Time the alarm remains active. Initially these functions are disabled (000 value).
t. A L M
1 beep
1. Enter the time you wish the alarm to remain active for at between 01 and 99 seconds
1
2
3
4
5
6
7
8
9
+
x
-
0
0
0
3
REMOTE UNIT
FOR ACCES CONTROL
For example: 3 secs
NOTE: the sensor time has to be greater than the lock-release time
1
2
3
4
5
6
7
8
9
+
x
-
0
REMOTE UNIT
FOR ACCES CONTROL
Default Value: 4 secs
0 0 3. S
1 beep
1
2
3
4
5
6
7
8
9
+
x
0
-
REMOTE UNIT
FOR ACCES CONTROL
Default Value: 0 secs
0 0 8. S
1 beep
1
2
3
4
5
6
7
8
9
+
x
-
0
REMOTE UNIT
FOR ACCES CONTROL
Default Value: 0 secs
0 0 3. S
1 beep
0 0 4. S
1
2
3
4
5
6
0 y
7
8
9
+
x
-
0
REMOTE UNIT
FOR ACCES CONTROL
0 0 0. S
1
2
3
4
5
6
0 y
7
8
9
+
x
-
0
REMOTE UNIT
FOR ACCES CONTROL
0 0 0. S
1
2
3
4
5
6
7
8
9
+
x
-
0
REMOTE UNIT
FOR ACCES CONTROL
t. A b
t. S E
t. A L M
0 y
Pag 19
