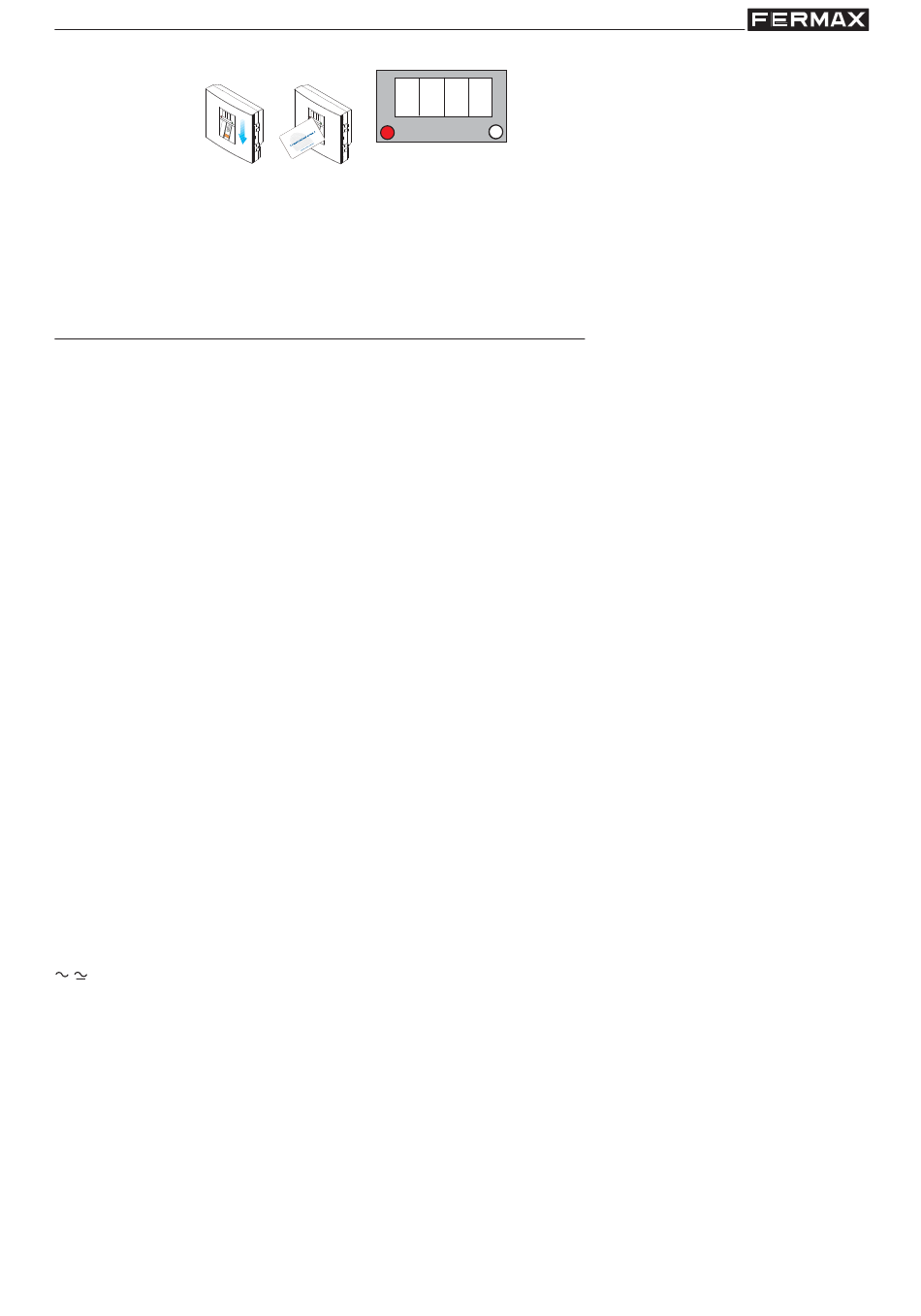

- Confirm the master fingerprint or card
4. Disconnect the system's power supply. Remove short-circuit between the system's
"Bs" and "-". Reconnect the power supply.
Technical Characteristics
Power supply: 12 Vac / 12 Vdc.
Operating temperature: -10º to 55º C.
Consumption:
* On standby: 12Vac: 215 mA / 12Vdc: 150 mA
Capacity:
- Number of users:
* 4500 (1 user fingerprint)
* 2970 (2 fingerprints per user)
- Number of administrators: 2 master fingerprints/cards
- Door Opening Time: 1...99 seconds
- Door Sensor Timing: 0...99 seconds
- Auxiliary exit activation time: 0...99 seconds
Number of fingerprints configurable per user (1 or 2)
Number of incidents without online limit
- Number of readers in network: 127 (001...127)
Default Values:
- Door opening time: 4 seconds
- Door sensor time: 0 seconds (not activated)
- Auxiliary exit activation time: 0 seconds (not activated)
- Mode: Standard
- Auxiliary output function: none
- Network identifier number: 1
- Standalone
Panel Connectors:
/ +, -: (12 Vac/Vdc) power supply
No, Nc, C: lock-release relay output (potential free)
- C1: common
- No - Nc: normally open (No) or normally closed (Nc) contact
Bs, -: output button
Sp, -: door sensor
Aux: auxiliary/panic output. Collector output open. Maximum current of 125 mA
A, B: Cloned reader connection.
Dt, Ck: conexión datos a controlador (no disponible).
R: led rojo a controlador (no disponible).
G: led verde a controlador (no disponible).
B: buzzer a controlador (no disponible).
0 y
1 beep
