GUIDE-1 AC-MAX KITS INSTALLATION-WIRING
GUIDE
Note: This document refers to this AC-MAX installation example.
Door 1
Introduction
This document indicates step by step how to start up a two/four door AC-MAX installation
using both Wiegand readers and ref. 5225 FPAC-MAX RS485 fingerprint readers.

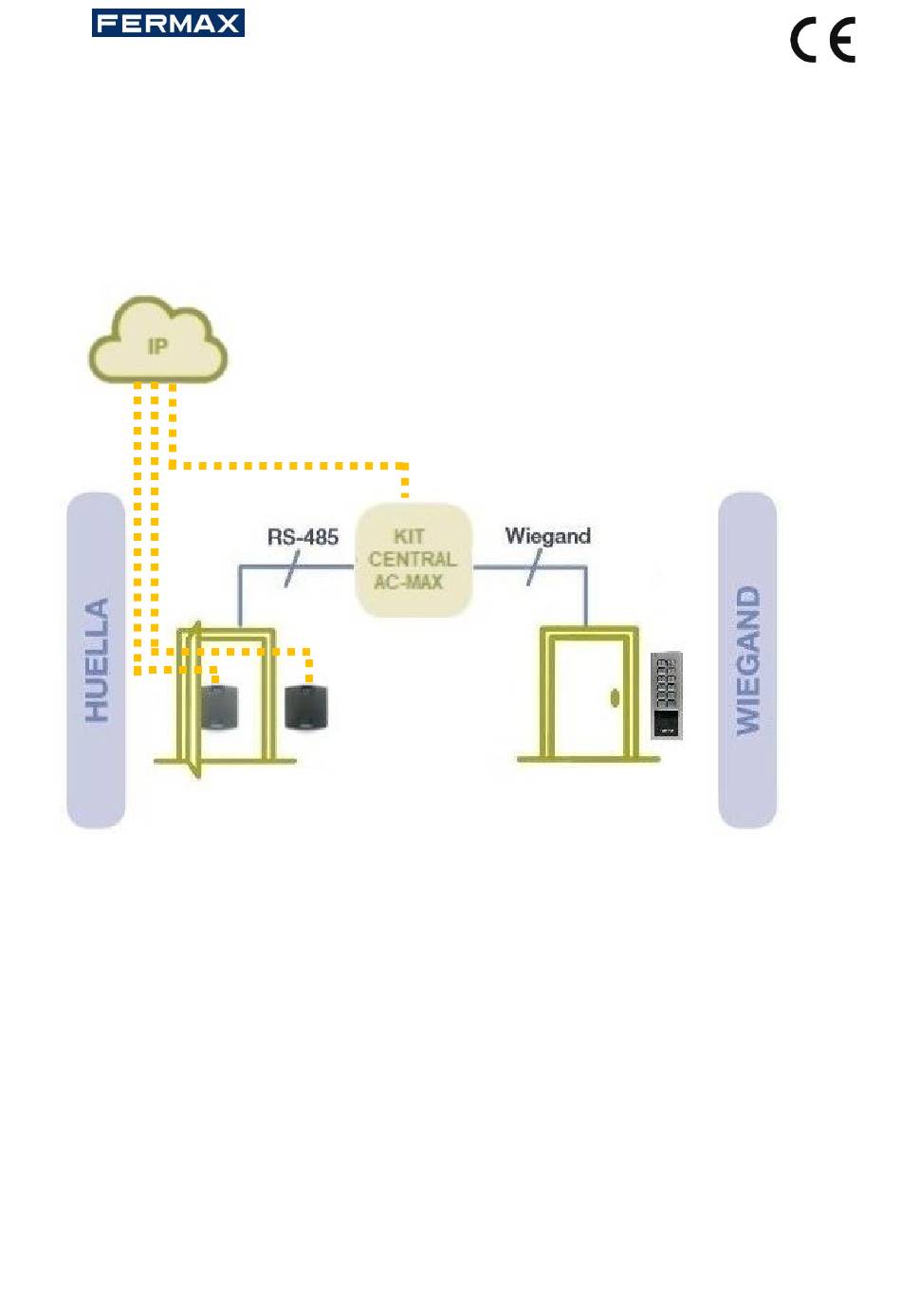

For this we will use for the guide a kit of 2 doors and 3 readers. In door 1 we will use 2 readers
one entrance for another one exit, and in door 2 an entrance reader.
Using the following elements.
• Access controller AC-MAX-CU-KIT-2 (kit ref. 5223)
• 2 x RS485 FINGERPRINT readers FPAC-MAX (Ref. 5225) (As input reader and output
reader for Door 1).
• 1 x WIEGAND reader (Resistant keyboard 5293) (As door 2 input reader)
Door 2
P a g e
1 | 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fermax AC-MAX
Summary of Contents for Fermax AC-MAX
- Page 1 Door 2 Introduction This document indicates step by step how to start up a two/four door AC-MAX installation using both Wiegand readers and ref. 5225 FPAC-MAX RS485 fingerprint readers. For this we will use for the guide a kit of 2 doors and 3 readers. In door 1 we will use 2 readers one entrance for another one exit, and in door 2 an entrance reader.
- Page 2 Cod. 970078I-1 V12_19 Installation-wiring The following wiring diagrams show how 2 or 4 door kits can be wired. We made the example with a system of two doors with a door with reader of entry and another one with reader of entry / exit.
- Page 3 Cod. 970078I-1 V12_19 Internal prewiring kit Connection of the power supply to the expander and the expander to the central unit. The use of the battery is optional and would be connected to the expander in BAT +, BAT-. Connection of the data bus from terminals A and B of the expander to terminals A1 B1 of the control unit.
- Page 4 Cod. 970078I-1 V12_19 Installation steps-Wiring. Step 1: Connect power to the different readers. WIEGAND READERS: Hose ref. 5922 (6 wires x 0.5mm2) or UTP CAT5 (1 pair for D0, D1 and another pair for negative, is recommended up to 100m. Use CAT6 for industrial installations. READERS RS-485 FPAC-MAX: UTP CAT5 (1 pair for A, B and another pair for negative, up to 100mts, is recommended.
- Page 5 Cod. 970078I-1 V12_19 Example of installation of 4 wiegand readers. Depending on the type of reader selected the wiring is as follows: Diagram 2. Readers or keypad Resistant Wiegand y proximidad Mifare Skyline, cityline. P a g e 5 | 8...
- Page 6 Cod. 970078I-1 V12_19 Diagram 3. Keypad City, Skyline y Marine Wiegand ref. 5190, 5191 and 5192. a) RS-485 FINGERPRINT READER FPAC-MAX: If the readers are FPAC-MAX RS485 fingerprint readers, wire to the corresponding data bus depending on the door to be connected.
- Page 7 Cod. 970078I-1 V12_19 Diagram 4. Example of the installation of 4 fingerprint readers in a 2-door kit. D1-Door 1 and D2-Door 2. With input fingerprint reader and output fingerprint reader, per door. Diagram 5. Example of the installation of 8 fingerprint readers in a 4-door kit. D1-Door 1, D2- Door 2.
- Page 8 Cod. 970078I-1 V12_19 Step3: Connect the accessories of each door. b) Wire accessories to the expander. Door opener, door contact, exit button. Etc. LCK Lock / Normal fuction. BELL / Bell. DC / Door contact DR Door reléase / Push button Diagram 6.
