STAND-ALONE FINGERPRINT READER
USER& INSTALLER'S MANUAL
E N G L I S H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CITY FINGERPRINT READER and is the answer not in the manual?

Questions and answers

Related Manuals for Fermax CITY FINGERPRINT READER

Summary of Contents for Fermax CITY FINGERPRINT READER

  • Page 1 STAND-ALONE FINGERPRINT READER USER& INSTALLER’S MANUAL E N G L I S H...
  • Page 2 Cod. 97666I, V11_11 Technical document published for information purposes by FERMAX ELECTRONICA. FERMAX ELECTRONICA, in a policy of ongoing improvement, reserves the right to modify the contents of this document and the features of the products referred to herein at any time and with no prior notice.

  • Page 3: Table Of Contents

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT INDEX Introduction ....................Operating Status ................... 1. Not Set-Up ....................2. Standby ....................3. Programming ..................Add Users ....................- a) Fingerprint Mode (1 finger) ................. 7 - b) Fingerprint Mode (2 fingers) ..............8 - c) 1 fingerprint + Proximity/Code Mode ............

  • Page 4: Introduction

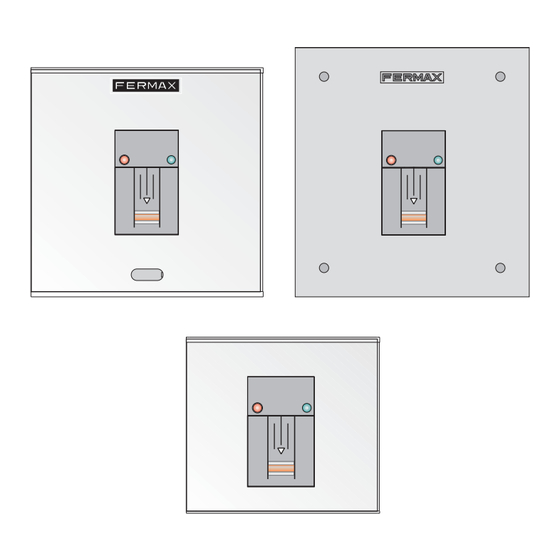

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Introduction The fingerprint reader is an autonomous reader with an integrated controller. This is a biometric recognition system based on the users’ fingerprints, which allows a greater level of security than that offered by other systems which use different types of identifiers.

  • Page 5: Operating Status

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Operating Status 1. Not Set-Up. Default Status (as set in factory). A master fingerprint/card has not yet been registered. 2. Standby. Normal mode, waiting for registered users to use fingerprint identification. Where the user is recognised this will be indicated by way of an acoustic tone, a green light and the lock-release relay will also be activated.
  • Page 6 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT resulting action Initial action Data Display/leds Sound Standby Mode Enter Enter master - Enter the master Registered Programming f i n g e r p r i n t / fingerprint/card.

  • Page 7: Add Users

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Add Users To register new users. Every user has an associated "user number" from 0001 to maximum. The codes are stored in the memory in sequence: user number - user fingerprint. Number of Users: * 4500 in 1 fingerprint per person mode.
  • Page 8 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT r e L a E o t h REMOTE UNIT FOR ACCES CONTROL 6. Cancel the rest of the options with "X" until the new option d1.1 is shown, to continue registering users. Repeat the aforementioned steps to register new users in mode 1 fingerprint.
  • Page 9 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 4. d1.2 is shown. Re-enter the user fingerprint you wish to register to confirm the fingerprint. d 1. 2 1 beep 1 beep 0 0 0 1 1 beep 5. Relay is shown. Using the scroll keys the following sequence will appear relay, both, Au..There are three options the action of which associated with this user fingerprint is: - Relay: to open the door.
  • Page 10 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT c) Add user Mode 1 Fingerprint + Proximity or Code Standby Mode 1. Enter the master fingerprint 2. Confirm the Add option with the validation key A d d 1 bip REMOTE UNIT FOR ACCES CONTROL Enter Programming Mode...
  • Page 11 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 7b. If it was a keypad code (if the reader has a keypad). 1 beep C o d e 1 beep The code has already been registered 4 or 6 digit code + B. For example: 4 digits 6 digits...
  • Page 12 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 3. d1.1 is shown. Enter the user fingerprint you wish to register in the system. d 1. 1 1 beep 1 beep 1 beep 4. d1.2 is shown. Re-enter the user fingerprint you wish to register to confirm the fingerprint. d 1.
  • Page 13 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 7b. If it was a keypad code (if the reader has a keypad). 1 beep C o d e 1 beep The code has already been registered 4 or 6 digit code + B. For example: 4 digits 6 digits...

  • Page 14: Operation

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 4. Bring close the card that you wish to register. If it has registered correctly d1.1 is shown. 0 0 0 1 P r o E 1 beep 1 beep 4b If it was a keypad code (if the reader has a keypad).
  • Page 15 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT User mode 1 or 2 fingerprints 0001 Beeeep! Beep! NO OK User mode 1 or 2 fingerprints with proximity functioning 0001 ProE Beeeep! Beep! Beep! NO OK Pag 15...
  • Page 16 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT User mode 1 or 2 fingerprints with ID functioning 0001 Beeeep! Code + Code: OK Beep! +Code: NO OK Beep! NO OK User proximity only functioning 0001 Beeeep! Beep! Pag 16...

  • Page 17: Delete Users

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT User ID only functioning 0001 Beeeep! Beep! NO OK Delete Users (ErA) A registered user can be deleted by entering their user number. There is also another option for deleting all users on the reader. a) Delete Users by way of their "user number"...
  • Page 18 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT b) FULL User Reset Standby Mode 1. Enter the master fingerprint. 2. Search using the menu’s scroll keys: A d d 1 bip REMOTE UNIT FOR ACCES CONTROL Enter Programming Mode 3.
  • Page 19 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT a) Lock-Release Timing Time the door’s lock-release relay remains active. 0 0 4. S 1 beep REMOTE UNIT FOR ACCES CONTROL Default Value: 4 secs 1. Enter the required door opening time of between 01 and 99 seconds. t.
  • Page 20 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Auxiliary Output functionality (Au) The following functions are possible: - None activated: - - - - Door and door forced open alarm: ALP - Intruder alarm following an incorrect fingerprint: ALI Only one of these functions can be activated on the system.
  • Page 21 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Standby Mode 1. Enter the master fingerprint 2. Search using the menu’s scroll keys: A d d 1 beep REMOTE UNIT FOR ACCES CONTROL Enter Programming Mode 3. MSt is shown. Confirm with the OK key. MS1 is shown. Using the scroll keys the following sequence will appear: MS1, MS2, trd, UnbL, Sec, MS1..
  • Page 22 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 1. d2.1 is shown, confirm if we wish to register a second master fingerprint. Enter the new user fingerprint you wish to register as a master fingerprint on the system. d 2.
  • Page 23 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 1b. d2.1 is shown, cancel if we wish to register a trade card. The LEDs of the reader start to flash, present the card that we wish to register in the system as the trade card. d 2.
  • Page 24 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 2. d2.2 is shown. Enter the fingerprint again to confirm. d 2. 2 U n b L 1 beep 1 beep 1b. d2.1 is shown, cancel if we wish to register an unblock card. The LEDs of the reader start to flash, present the card that we wish to register in the system as the unblock card.
  • Page 25 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 1b. d2.1 is shown, cancel if we wish to register a security card. The LEDs of the reader start to flash, present the card that we wish to register in the system as the security card. d 2.
  • Page 26 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 4. Sec is shown. Using the scroll keys the following sequence will appear: Sec, Std, Sec..Select the required mode: Sec (Security: double security) or Std (standard: no double security) and confirm with the OK key. S e c S t d 1 beep...
  • Page 27 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Copy (COP) This operation aims to copy all the data from one reader to another. The following data is copied: - List of User Fingerprints (L.NN) - Configuration (C.NN) Enter the destination reader number where all the data from the current reader will be copied.
  • Page 28 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT 2. Code length - number of digits (Code) Number of digits to use in the keyboard code. 4 or 6. NOTES: - See functioning (chapter “Add users - Add”): Standby Mode 1.
  • Page 29 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT - Confirm the master fingerprint or card 1 beep 4. Disconnect the system’s power supply. Remove short-circuit between the system’s “Bs” and “-”. Reconnect the power supply. Technical Characteristics Power supply: 12 Vac / 12 Vdc. Operating temperature: -10º...

  • Page 30: Full Reset Of All Users

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Molex connectors: molex connection display: +, -, D, C molex connection keypad: +, -, Pl, Ck, Si, -, Vl Dip-switch: to select the reader and system addresses: autonomous or centralised. Wiring Diagram AUTÓNOMO STAND ALONE...

  • Page 31: Operating Modes

    FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Function Code Function Description Special fingerprint functions: - Change the master fingerprint: - Add a second master fingerprint - Add a trade fingerprint - Add an unblock fingerprint - Add a fingerprint, security mode Operating Modes: Mode - Standard (no double security)
  • Page 32 FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT FINGERPRINT Usage Recommendations To ensure the fingerprint is read correctly, the user should run their finger downwards along the reader (from top to bottom), at a constant speed and exercising light pressure. Installation/Replacement of the battery in the remote control The remote keypad is supplied with power via the integrated battery (CR2025).
