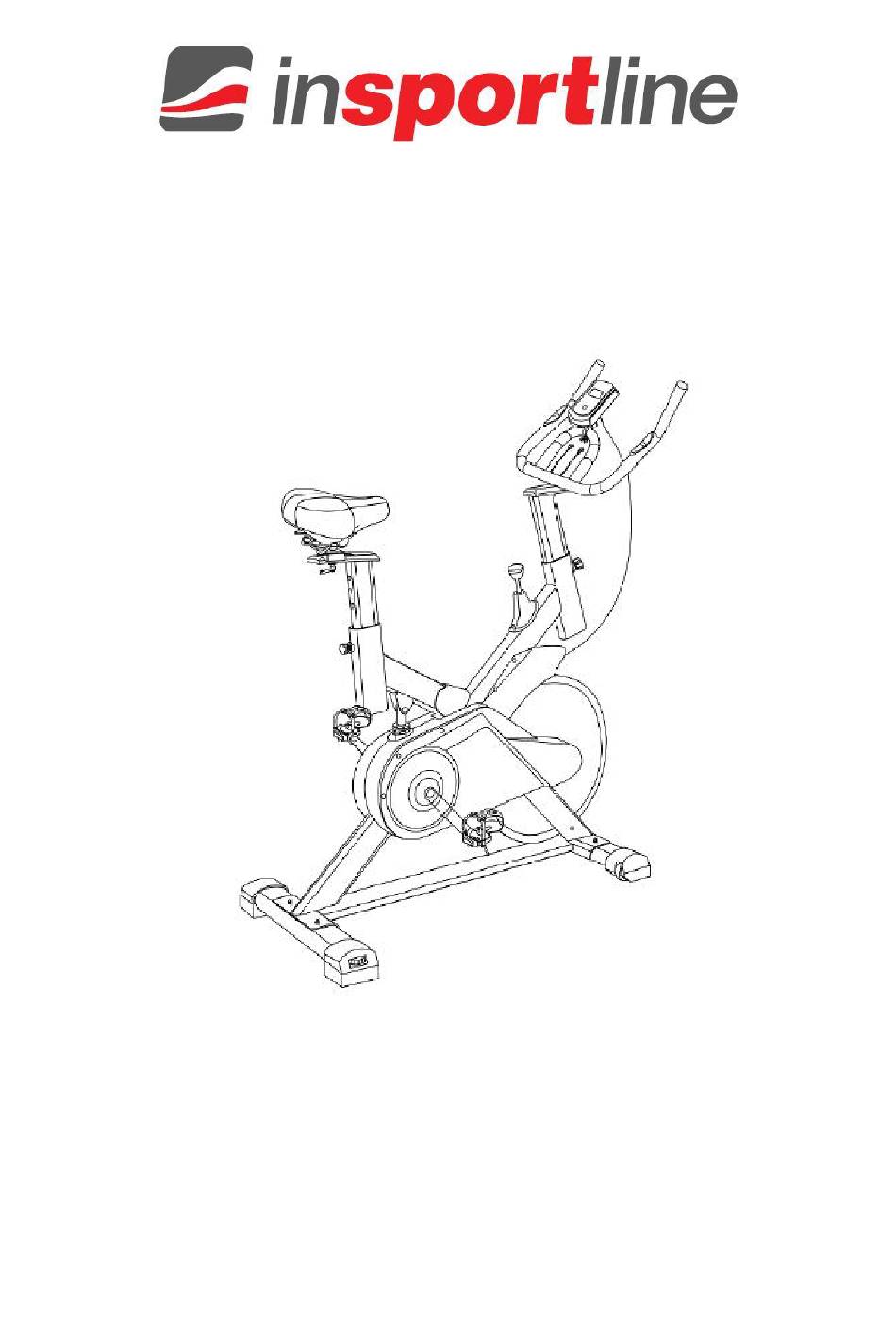

- Page 1 USER MANUAL – EN IN 19886 Spinning Bike inSPORTline Alfan...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 IMPORTANT NOTES ..........................4 PRODUCT DESCRIPTION ........................5 PARTS LIST ............................6 ASSEMBLY ............................. 8 CONSOLE ............................. 12 Displays .............................. 12 Buttons ............................... 12 BATTERIES ............................13 USE ............................... 13 CORRECT BODY POSTURE ....................... 13 MAINTENANCE ............................ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. •... -
Page 4: Important Notes
IMPORTANT NOTES • Assemble the exerciser as per assembly instructions and be sure to only use the structural parts provided with the exerciser and designed for it. Prior to the assembly, make sure the contents of the delivery are complete by referring to the parts list of the assembly and operating instructions. -
Page 5: Product Description

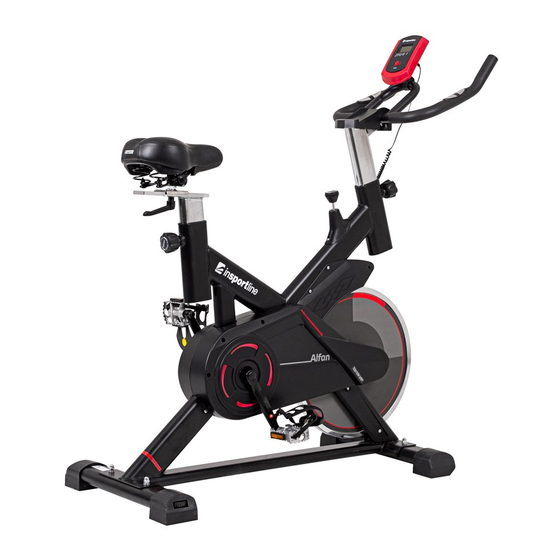

PRODUCT DESCRIPTION 1. Resistance 2. Seat 3. Seat height adjustment 4. Pedals 5. Leveling 6. Handlebars Handlebars height adjustment 8. Flywheel 9. Front stabilizer... -
Page 6: Parts List
PARTS LIST Picture Name Main frame Rear stabilizer Front stabilizer Seat Seat post Seat holder Handlebar Handlebar post... - Page 7 Pedals (R/L) 1 set L shaped-lock pin Big washer Display holder Display End cap Small washer Bold Allen key Wrench Knob...
-
Page 8: Assembly
Mobile holder Allen screw ASSEMBLY It is recommended to assembly with two adults’ persons. Step 1 Lift rear part of Main frame (1) and connect Rear stabilizer (2) with two Screws (16), two Washers (15) and two Nuts (14). Step 2 Lift front part of Main frame (1) and connect Front stabilizer (2) with two Screws (16), two Washers (15) and two Nuts (14). - Page 9 Step 3 Insert the Seat post (5) as shown. Loosen the tightening knob and pull it out. Then insert the Seat Post (5) into the Main Frame (1). Then set the desired height. Then screw in the tightening knob so that the Seat post (5) is firmly secured.
- Page 10 Step 6 Loosen the knob and pull it out. Then insert the Handle post (8) into the Main Frame (1). Set the desired handle height. Then secure the handle with the knob. Step 7 Attach the Handlebar (7) to the Handlebar post (8) with the 4 Hexagonal Screws (21). Step 8 Attach the Display Holder (12) to the Handlebar (7).
- Page 11 Step 9 Attach the LCD display (13) to the Display holder (12). Step 10 Then connect 3 wires. Step 11 The right pedal (9 - R) is marked R. Use a wrench to attach the pedal clockwise to the right crank. The left pedal (9 - L) is marked L.
-
Page 12: Console
CONSOLE Displays 00,00 – 99,59 TIME 0:0 – 99,9 km/h, mil/h SPEED 0,00 – 999,9 km, mil DISTANCE 0 – 9999 km, mil ODOMENT if available 40 – 240 BPM PULSE if available 0,0 – 9999 kcal CALORIES Buttons Mode: Switch display functions 1. -
Page 13: Batteries
CALORIES – Burned calories. BATTERIES If the PULSE function is available insert 2x AA batteries. If the PULSE is not available insert 1x AA battery. Exercise on the spinning bike is based on very simple movements, but you will surely fall in love with them. -
Page 14: Maintenance
MAINTENANCE • When assembling, tighten all screws and adjust the bike to the horizontal position. • Check the screws after 10 hours of use. • Wipe the sweat after the exercise. Clean the device with a cloth and gentle cleanser. Do not use solvents or aggressive cleaners on the plastic parts. -
Page 15: Seat
The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague 13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”... - Page 16 to exchange the defected Goods for a fully compatible Goods of the same or better technical characteristics. The Seller is entitled to choose the form of the Warranty Claim Procedures described in this paragraph. The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods, unless a longer period has been agreed upon.
