Structure - Johnson Controls IC1006B21S Series Engineering Manual

1-WAY CASSETTE

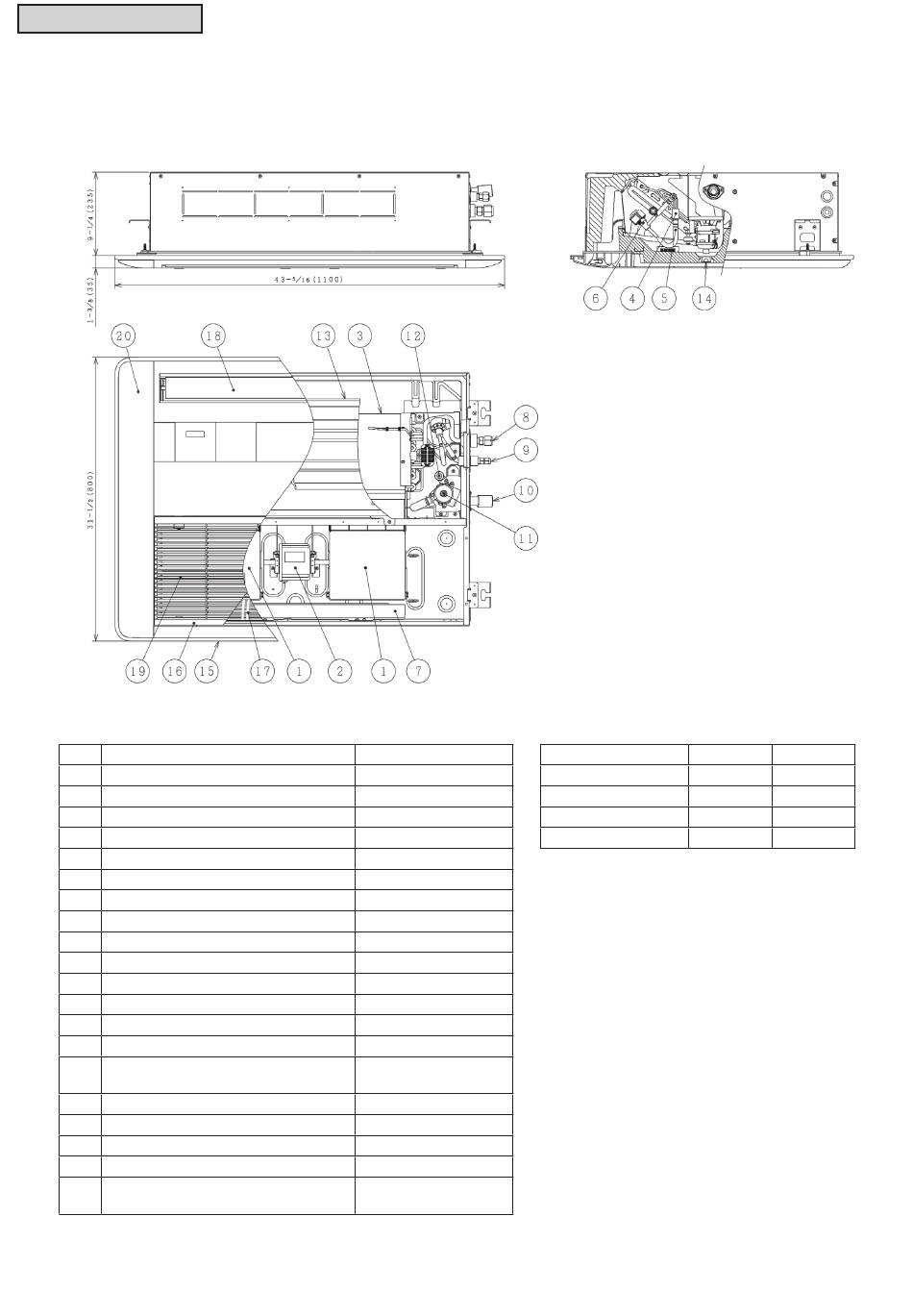

2.5 Structure

No. Part Name
1 Fan
2 Fan Motor
3 Heat Exchanger
4 Distributor
5 Strainer
6 Electronic Expansion Valve
7 Electrical Control Box
8 Refrigerant Gas Pipe Connection
9 Refrigerant Liquid Pipe Connection
10 Condensate Pipe Connection
11 Condensate Mechanism
12 Float Switch
13 Condensate Pan
14 Rubber Plug for Drain
Decorative Panel
15
(P-AP36CNA, P-AP56CNA)
16 Air Inlet Grille
17 Air Filter
18 Air Outlet
19 Air Inlet
20 Cover for Corner Pocket
2-4
Remarks
DC
with fa Flare Nut
with fb Flare Nut
VP25 (OD f1-1/4 (32))
Optional
(P-AP36CNA)
(P-AP56CNA)
Model
(H,Y,C)IC1006B21S 1/2 (12.7)
(H,Y,C)IC1008B21S 1/2 (12.7)
(H,Y,C)IC1012B21S 1/2 (12.7)
(H,Y,C)IC1015B21S 1/2 (12.7)
Unit: inch (mm)
a b
1/4 (6.35)
1/4 (6.35)
1/4 (6.35)
1/4 (6.35)
TC-18002
