FOR QUALIFIED INSTALLER ONLY. This basic Installation Sheet is an initial release. If a complete Operations
Manual (for the unit being installed) is required or needed, please refer to the Lancer web site (lancercorp.com) for
immediate access, or for your convenience, scan this QR code with a mobile device (app required) for immediate
access to other Technical Documents and alternative translations (if available) pertaining to this unit. Contact Lancer
Customer Service for assistance as required.
ABOUT THIS MANUAL
This booklet is an integral and essential part of the product and
should be handed over to the operator after the installation and
preserved for any further consultation that may be necessary.
Please read carefully the guidelines and warnings contained
herein as they are intended to provide the user with essential
information for the continued safe use and maintenance of the
product. In addition, it provides GUIDANCE ONLY to the user on
the correct services and site location of the unit.
The installation and relocation, if necessary, of this product must be carried out by qualified personnel with
up-to-date safety and hygiene knowledge and practical experience, in accordance with current regulations.
IMPORTANT SAFETY INSTRUCTIONS
! Intended Use
The dispenser is for indoor use only. This unit is not a toy. Children should not be supervised not to play with appliance. It should
not be used by children or infirm persons without supervision. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety. Cleaning and user maintenance
shall not be performed by children without supervision. The min/max ambient operating temperature for the dispenser is 40°F to
105°F (4°C to 41°C). Do not operate unit below minimum ambient operation conditions. Should freezing occur, cease operation of
the unit and contact authorized service technician. Service, cleaning and sanitizing should be accomplished only by trained
personnel. Applicable safety precautions must be observed. Instruction warnings on the product being used must be followed.
®
4500

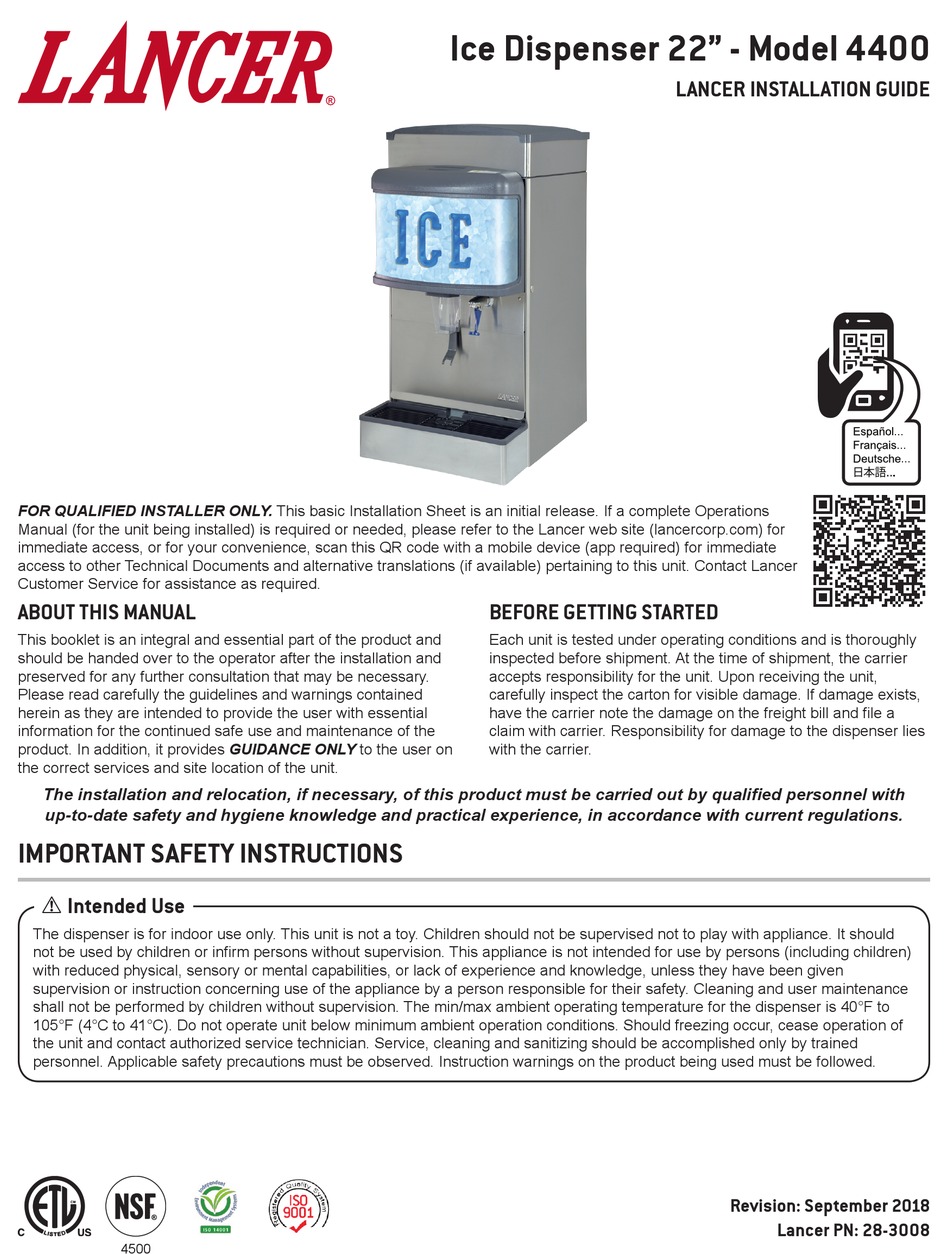

Ice Dispenser 22" - Model 4400
BEFORE GETTING STARTED
Each unit is tested under operating conditions and is thoroughly
inspected before shipment. At the time of shipment, the carrier
accepts responsibility for the unit. Upon receiving the unit,
carefully inspect the carton for visible damage. If damage exists,
have the carrier note the damage on the freight bill and file a
claim with carrier. Responsibility for damage to the dispenser lies
with the carrier.
LANCER INSTALLATION GUIDE
Revision: September 2018
Lancer PN: 28-3008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4400 and is the answer not in the manual?

Questions and answers

Summary of Contents for lancer 4400

  • Page 1 FOR QUALIFIED INSTALLER ONLY. This basic Installation Sheet is an initial release. If a complete Operations Manual (for the unit being installed) is required or needed, please refer to the Lancer web site (lancercorp.com) for immediate access, or for your convenience, scan this QR code with a mobile device (app required) for immediate access to other Technical Documents and alternative translations (if available) pertaining to this unit.
  • Page 2: Specifications

    Unplug the dispenser during servicing, cleaning, and sanitizing. To avoid personal injury, do not attempt to lift the dispenser without assistance. For heavier dispensers, use a mechanical lift. SPECIFICATIONS ID 4400 - 22” Cubed Ice DIMENSIONS ELECTRICAL WEIGHT Width: 22.0 inches (559 mm)
  • Page 3: Installation

    This manual was developed by the Lancer Corporation as a reference for the owner/operator and installer of this dispenser. Please read this guide before installation and operation of this dispenser. If service is required please call your Lancer Service Agent or Lancer Customer Service.
  • Page 4: Dispenser Installation

    A bin thermostat is required in order to control the level Reattach Drip Tray/Cup Rest to unit. of ice in the dispenser (Refer to ATTENTION to the left). Route the power supply cord to a grounded electrical outlet Contact your icemaker manufacturer to obtain the correct bin of the proper voltage and connect to outlet.
  • Page 5: Cleaning And Sanitizing

    CLEANING AND SANITIZING GENERAL INFORMATION Lancer equipment (new or reconditioned) is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The operator of the equipment must provide continuous maintenance as required by this manual and/or state and local health department guidelines to ensure proper operation and sanitation requirements are maintained.
  • Page 6: Dispenser Troubleshooting

    Ice Chute Cleaning - Monthly NOTE NOTE Always remove the ice chute lever before removing the splash plate. It is recommended to perform this procedure monthly, or more often if desired. Use the cleaning solution described above. An alternate solution of one part Remove the Ice Chute Assembly base by removing the four water to one part vinegar may be used to remove (4) screws that attach it to the unit.
  • Page 7: Automatic Agitation And Low Ice Alarm Control

    Automatic Agitation and Low Ice Alarm Control NOTE Each Series 4500 ice beverage dispenser is equipped with automatic agitation for the ice bin. The unit is shipped with timing set at two (2) seconds ON every 60 minutes. Referring to the tables on the wiring diagram (located on next page and affixed to the electrical box cover), the automatic agitation timing can be changed as follows. A set of DIP switches is provided to control the timing and low ice control. Dispensers using pellet ice must have the automatic agitation settings adjusted to four (4) seconds ON every 150 minutes. Refer to Automatic Agitation Warning on page 3. DIP# DESCRIPTION DIP#1 This switch controls the low ice indicator light. With the switch in the ON position, the light operates when a low ice condition exists.
  • Page 8: Illustrations & Part Listings

    ILLUSTRATIONS & PART LISTINGS Final Assembly - ID 4400 Cubed Ice NOTE: TO ADJUST ICE FLOW REGULATOR, SEE PAGE 4 (230 VOLT ONLY) Item Part No. Description 05-1309/02 Wheel Shroud, IBD22 05-1467 Lid, Back, IBD22, Round 82-1892/01 Wheel Shroud Assy, IBD22, Mod...
  • Page 9 Pellet Ice Dispenser Sub-Assembly Conversion Kit, IBD22, PN: 82-3955 F ATTENTION The Pellet Ice Components listed below are to be used ONLY in conjunction with Nugget, Cubelet, or Chewblet ice. LANCER makes no warranty of any kind with regard to these components being used with any other kind of ice. Item Part No. Description LABEL FOR SCOTSMAN LABEL FOR HOSHIZAKI...
  • Page 10: Dispenser Disposal

    T&S Water Valve Assembly Dispenser Disposal To prevent possible harm to the environment from improper disposal, recycle the unit by locating an authorized recycler or contact the retailer where the product was purchased. Comply with local regulations regarding disposal of the refrigerant and insulation.
  • Page 11 Wiring Diagram - 115 Volt / 60 Hz WIRING DIAGRAM FOR LANCER ICE DISPENSER WITH LOW ICE SENSING (TYP.) NOTE: NOT USED ON PREMIX DISPENSERS ELECTRICAL BOX BOUNDARY WHITE BLACK LIGHT VALVE BLACK ALARM WHITE BLUE WHITE LOW ICE SENSOR...
  • Page 12 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
