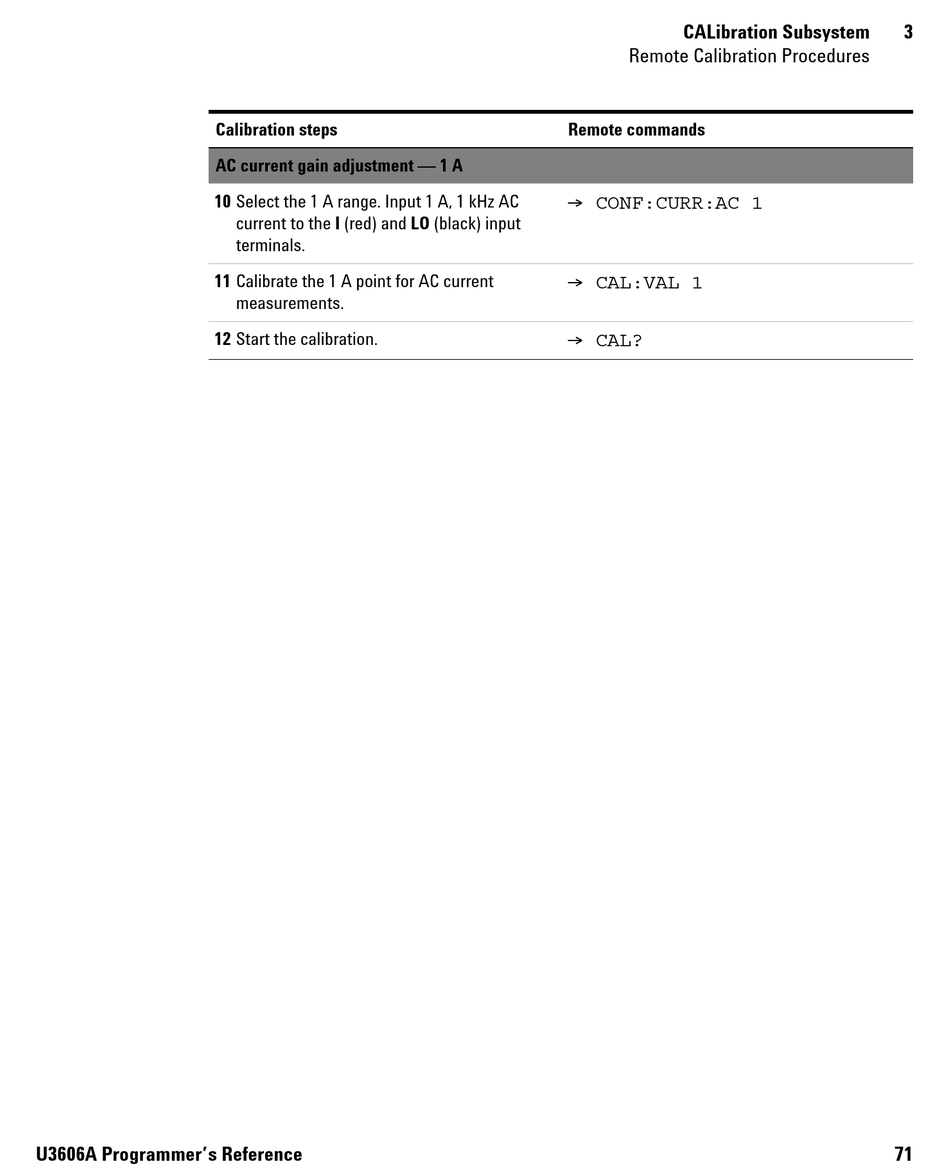

10 Select the 1 A range. Input 1 A, 1 kHz AC
11 Calibrate the 1 A point for AC current
12 Start the calibration.
U3606A Programmer's Reference
Calibration steps
AC current gain adjustment — 1 A
current to the I (red) and LO (black) input
terminals.
measurements.
CALibration Subsystem
Remote Calibration Procedures
Remote commands
& CONF:CURR:AC 1
& CAL:VAL 1
& CAL?
3
71
