Keysight U1241B and
U1242B Handheld

Digital Multimeter

Quick Start
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the u1242b and is the answer not in the manual?

Questions and answers

Summary of Contents for Keysight u1242b

  • Page 1: Digital Multimeter

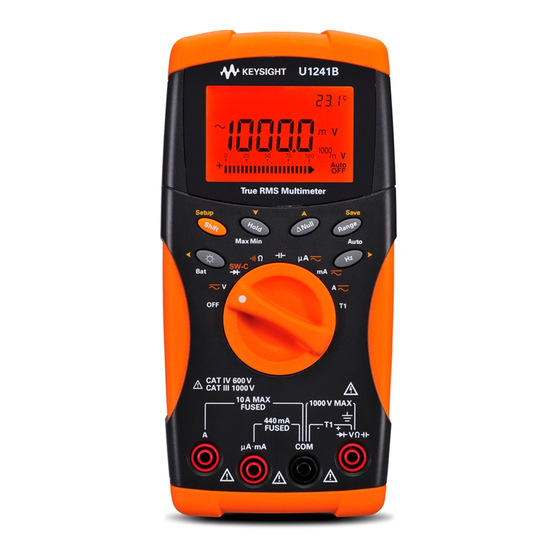

    Keysight U1241B and U1242B Handheld Digital Multimeter Quick Start Guide...
  • Page 2: Contacting Keysight

    1000 V Category IV 600 V CAT IV overvoltage protection 600 V For further safety information details, refer to the Keysight U1241B and U1242B Handheld Digital Multimeter User’s and Service Guide. Keysight U1241B and U1242B Quick Start Guide...
  • Page 3 Multimeter User’s and Service Guide on Keysight website (www.keysight.com/find/handheld-tools). Ensure the terminal connections are correct for that WARNING particular measurement selection before starting any measurement. To avoid damage to the device, do not exceed the input limit. Keysight U1241B and U1242B Quick Start Guide...
  • Page 4 Current (μA and mA) µA.mA 440 mA/1000 V 30 kA/fast-acting fuse Current (A) 11 A/1000 V 30 kA/ fast-acting fuse Temperature –T1 1000 V R.M.S Temperature –T2 440 mA/1000 V (for U1242B) 30 kA/fast-acting fuse Keysight U1241B and U1242B Quick Start Guide...
  • Page 5: Annunciator Display

    Auto or manual data logging Primary display mode and datalog viewing mode AC or DC measurement mode Secondary display (temperature display) Auto range Null math function Diode / Audible continuity Thermocouple type for temperature measurement Keysight U1241B and U1242B Quick Start Guide...
  • Page 6: Functions And Features

    (for U1242B) Data hold Low battery indicator T1, T2* and T1 – T2* Auto power off indicator temperature measurements *T2 temperature measurement and delta (T1 – T2) are only available for U1242B. Functions and Features Rotary Switch Keypad Function First level...
  • Page 7 Changes the measuring range Press Turns on auto range Press and hold for > 1 s. Measures frequency for AC signal Press Starts manual data logging Press and hold for > 1 s. Keysight U1241B and U1242B Quick Start Guide...
  • Page 8: Tilt Stand

    Tilt Stand Tilt stand at 30 º Tilt stand at 60 º Keysight U1241B and U1242B Quick Start Guide...
  • Page 9 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 2009 – 2016 Edition 6, March 1, 2016 Printed in Malaysia *U1241-90055* U1241-90055 www.keysight.com...
