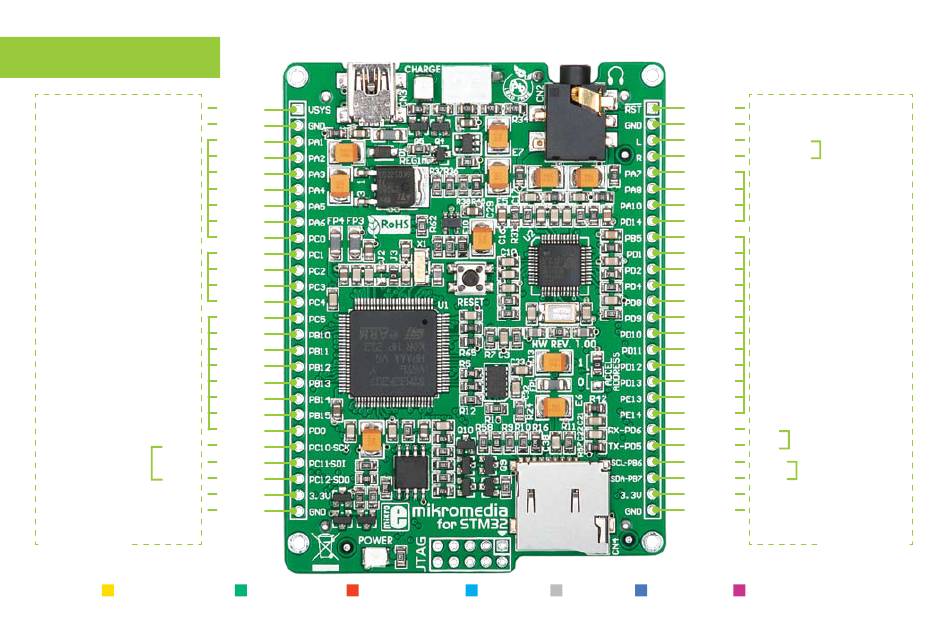

13. Pinout

System power supply
Reference Ground
Analog Lines
Interrupt Lines
Digital I/O lines
SCK
SDI
SPI Lines
SDO
3.3V power supply
Reference Ground
Pin functions
Digital lines
VSYS
GND
PA1
PA2
PA3
PA4
PA5
PA6
PC0
PC1
PC2
PC3
PC4
PC5
PB10
PB11
PB12
PB13
PB14
PB15
PD0
PC10
PC11
PC12
3.3V
GND
Analog Lines Interrupt Lines SPI Lines I2C Lines
Page 35
RST Reset pin
GND Reference Ground
L left ch.
audio out
R right ch.
PA7
PA8
PWM lines
PA10
PD14
PB5
PD1
PD2
PD4
PD8
PD9
Digital I/O lines
PD10
PD11
PD12
PD13
PE13
PE14
RX
PD6
UART Lines
PD5 TX
SCL
PB6
I C Lines
2
PB7 SDA
3.3V 3.3V power supply
GND Reference Ground
Pin functions
UART lines PWM lines
